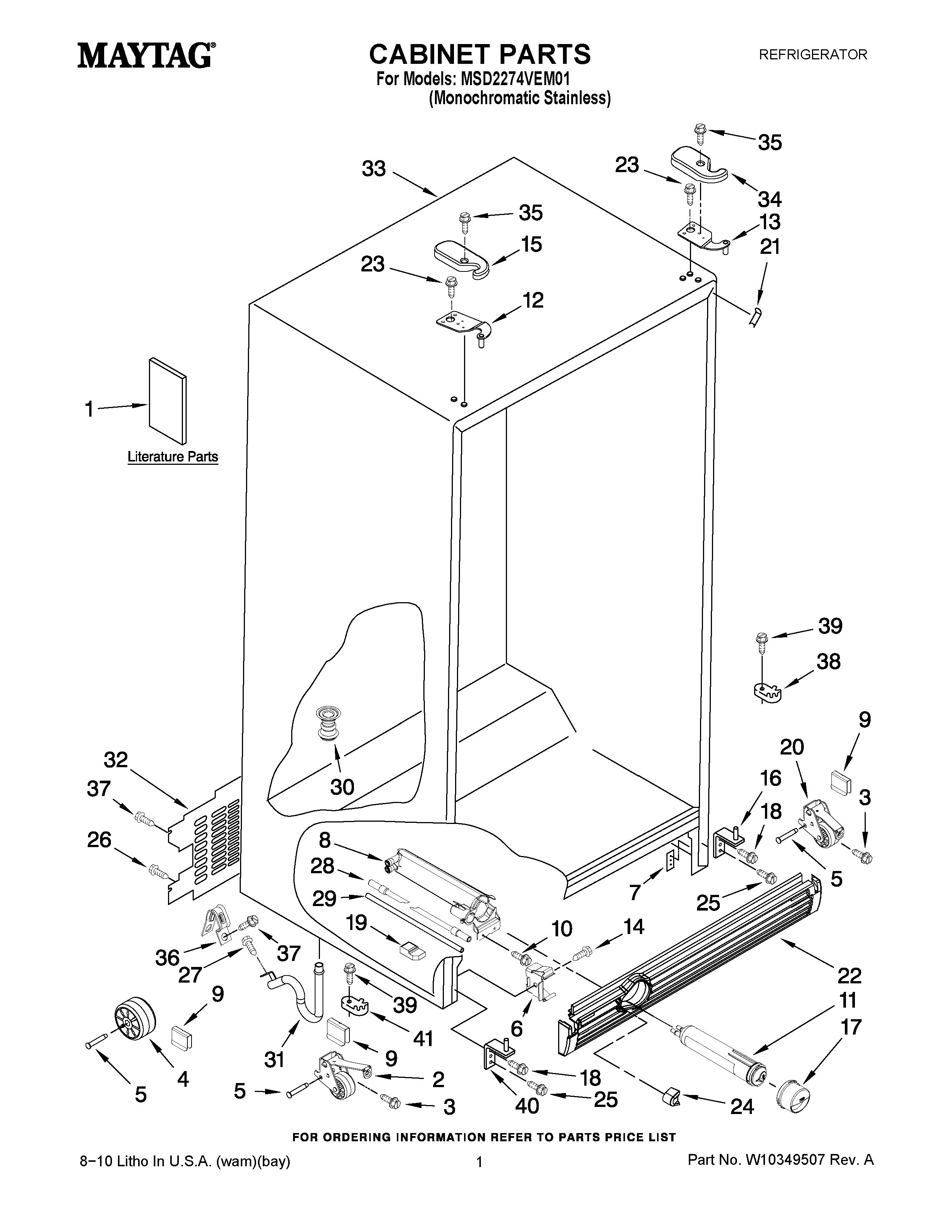

MSD2274VEM01 01 – CABINET PARTSadmin2025-04-26T13:09:47+00:00MSD2274VEM01 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY 628370 |
| 1 | MAY W10180071 |
| 1 | MAY W10235230 |
| 1 | MAY W10214488 |
| 2 | ROLLER, FRONT (LEFT) |
| 3 | MAY 489427 |
| 4 | Roller |
| 5 | AXLE, ROLLER |
| 6 | MAY 2155013 |
| 7 | MAY 2304249 |
| 8 | Housing, Water Filter |
| 9 | CLIP, ROLLER |
| 10 | MAY 489500 |
| 11 | MAY 4396841 |
| 12 | HINGE TOP FC |
| 13 | HINGE, TOP RC |
| 14 | MAY 488500 |
| 15 | COVER, HINGE (FREEZER) (GREY) |
| 16 | MAY W10289528 |
| 17 | CAP, WATER FILTER (GREY) |
| 18 | Screw (4) |
| 19 | Block, Housing Support |
| 20 | ROLLER, FRONT (RIGHT) |
| 21 | FILLER, CORNER (GREY) |
| 22 | MAY W10202905 |
| 23 | MAY 489497 |
| 24 | BUTTON, WATER FILTER (GREY) |
| 25 | MAY 3400103 |
| 26 | SCREW |
| 27 | Screw (3) |
| 28 | MAY W10281289 |
| 29 | Tube, Filter Outlet |
| 30 | MAY 2304888 |
| 31 | MAY W10153550 |
| 32 | MAY 2188734 |
| 33 | LINER (NOT A SERVICEABLE PART) |
| 34 | COVER, HINGE (REFRIGERATOR) (GREY) |
| 35 | MAY 8281227 |
| 36 | MAY 549193 |
| 37 | MAY 489084 |
| 38 | MAY 2155311 |
| 39 | MAY W10029680 |
| 40 | MAY W10289530 |
| 41 | CLOSER, FREEZER DOOR |
