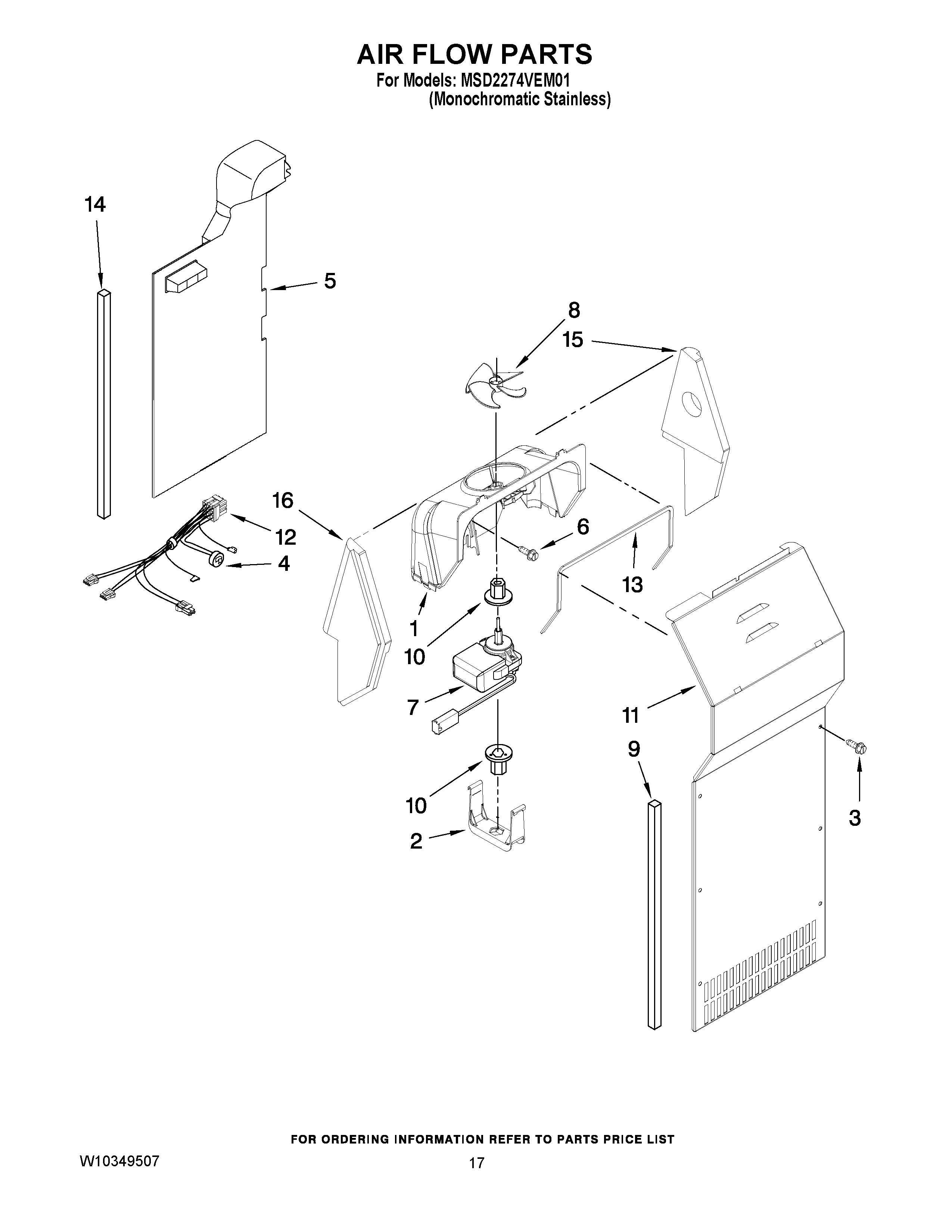

MSD2274VEM01 10 – AIR FLOW PARTS

Written by

Products

Position	Product
1	SCROLL, FAN
2	MAY W10188846
3	MAY 8281159
4	MAY 2321799
5	MAY W10166220
7	MAY W10236142
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	Cover, Evaporator (Includes 9)
12	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13	GASKET, SCROLL ASSEMBLY
14	MAY W10252476
15	SUPPORT, FAN SCROLL (RIGHT HAND)
16	SUPPORT, FAN SCROLL (LEFT HAND)
