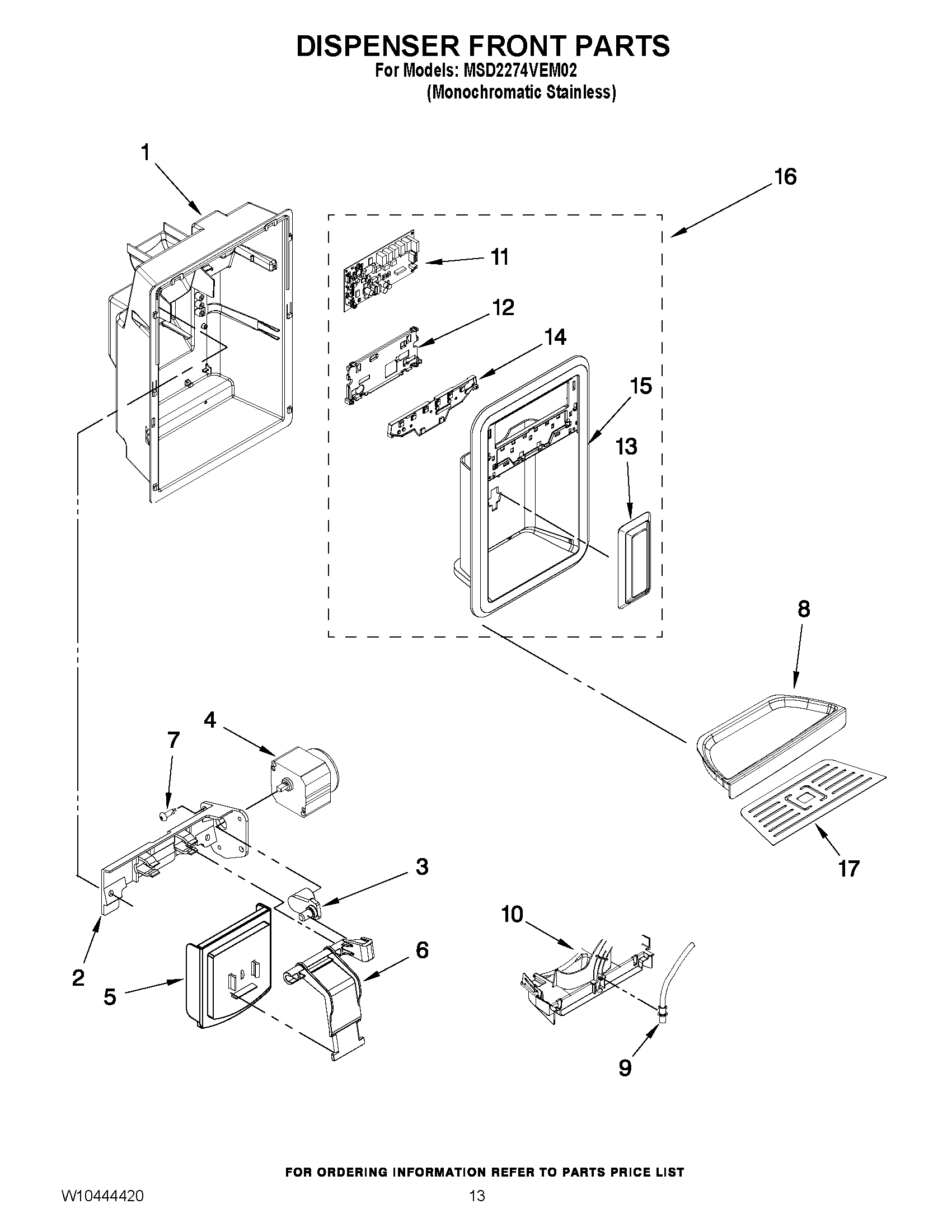

MSD2274VEM02 08 – DISPENSER FRONT PARTS

Written by

Products

Position	Product
2	MAY 2305202
3	MAY 2305242
4	MAY W10174787
5	MAY 2328020
6	MAY 2328018
7	MAY 4449745
8	Drip Tray, Stainless
9	MAY 2328033
10	MAY 2328015
11	MAY W10144584
12	MAY W10144040
13	PAD
14	MAY W10182888
15	LINER (NOT A SERVICEABLE PART)
16	FRONT COVER ASSEMBLY (INCLUDES ITEMS 11, 12, 13, 14, & 15)
17	GRILLE
