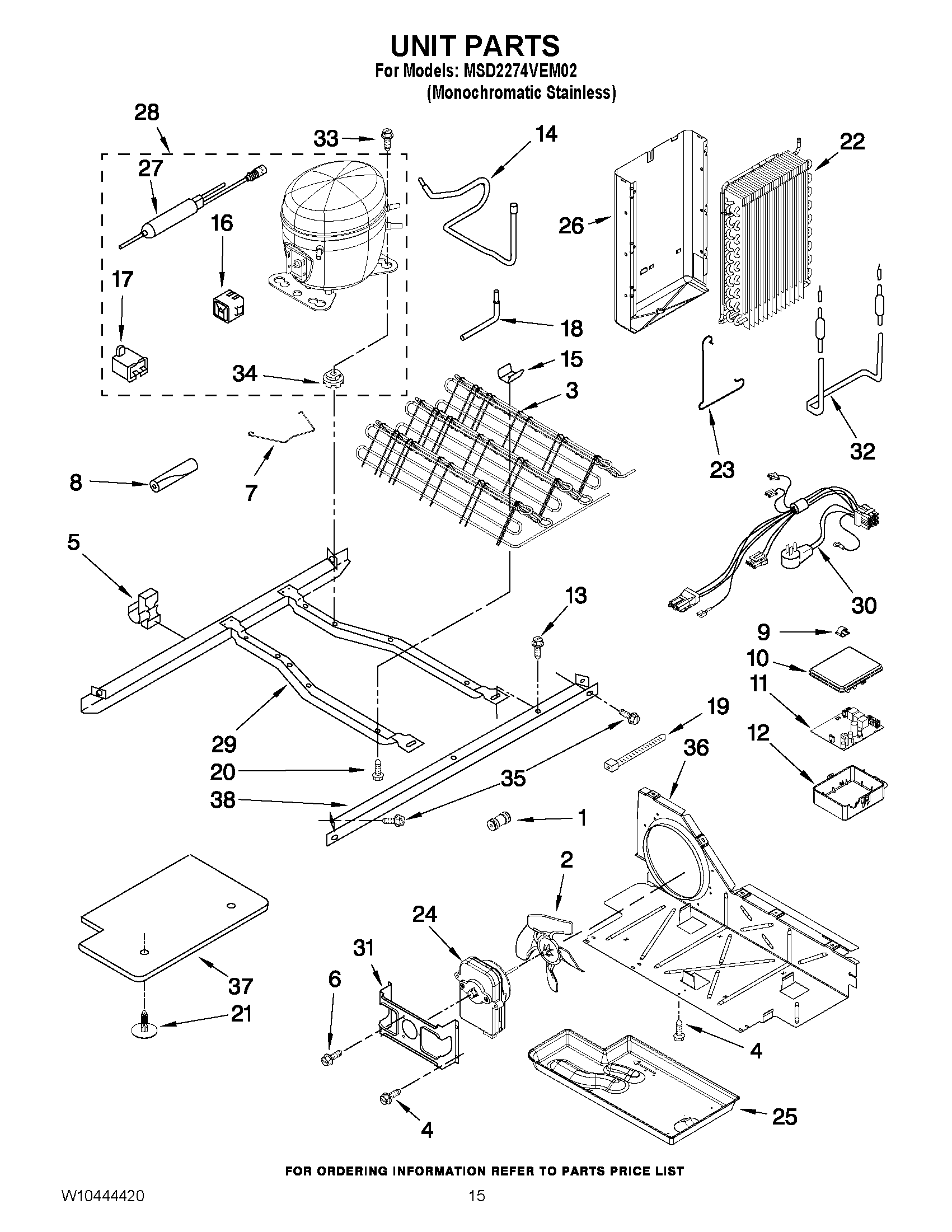

MSD2274VEM02 09 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	CONNECTOR, WATER
2	Fan, Blade
3	MAY W10211163
4	Screw (3)
5	MAY 2326941
6	MAY 8533993
7	MAY W10174384
8	Sleeve, Pressure Switch Hose
9	MAY 1115374
10	Box Cover
11	MAY W10259858
12	MAY 2326982
14	MAY W10210787
15	MAY 2311725
16	Start-Device, Combination (Start Relay and Overload) (Production)
16	Start-Device, Combination (Start Relay and Overload)
17	Capacitator (Production)
18	Process Tube
19	MAY 2263990
20	MAY 8281232
21	MAY 489396
22	MAY 2188822
23	Clip
24	MOTOR, CONDENSOR
25	MAY 1105523
26	ASSEMBLY, HEAT SHIELD AND DRAIN PAN
27	Drier
27	Drier
28	Compressor (Includes Items 16, 17, 27, & 34) (Also Order 876765 Tube Kit)
29	Frame, Unit Mounting
30	Harness, Unit
31	MAY 2181929
32	MAY 2188174
33	MAY 489473
34	Grommet (Production)
34	MAY 2183042
35	MAY 489427
36	MAY W10332806
37	UNIT COVER BOTTOM
38	RAIL, UNIT MOUNTING
