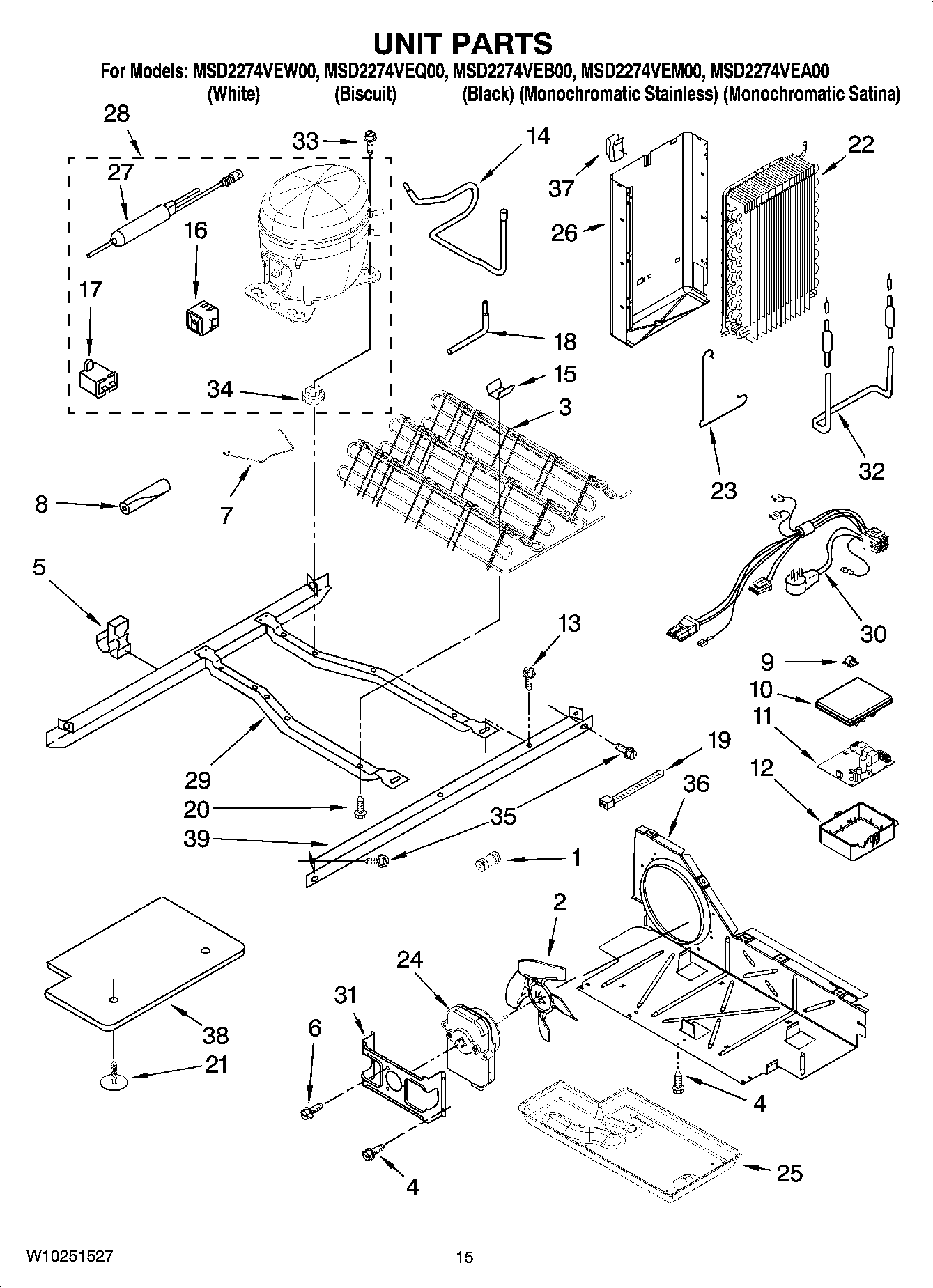

MSD2274VEQ00 09 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	Connector, Water
2	Fan, Blade
3	MAY W10211163
4	Screw (3)
5	Clip, Wire
6	MAY 8533993
7	MAY W10174384
8	Sleeve, Pressure Switch Hose
9	MAY 1115374
10	Box Cover
11	MAY 2322547
12	MAY 2326982
13	MAY 489427
14	MAY W10210787
15	MAY 2311725
16	Start-Device, Combination (Start Relay and Overload)
16	Start-Device, Combination (Start Relay and Overload) (Production)
17	Capacitator (Production)
18	Process Tube
19	MAY 2263990
20	MAY 8281232
21	MAY 489396
22	MAY 2188822
23	Clip
24	MOTOR, CONDENSOR
25	MAY 1105523
26	ASSEMBLY, HEAT SHIELD AND DRAIN PAN
27	Drier
27	Drier
28	Compressor (Includes Items 16, 17, 27, & 34) (Also Order 876765 Tube Kit)
29	Frame, Unit Mounting
30	Harness, Unit
31	MAY 2181929
32	MAY 2188174
33	MAY 489373
34	Grommet (Production)
35	MAY 489340
36	MAY W10163483
37	MAY 2155547
38	UNIT COVER BOTTOM
39	MAY W10196323
