MSD2351KES 14 – ICE MAKER

MSD2351KES 14 – ICE MAKER

Written by

in

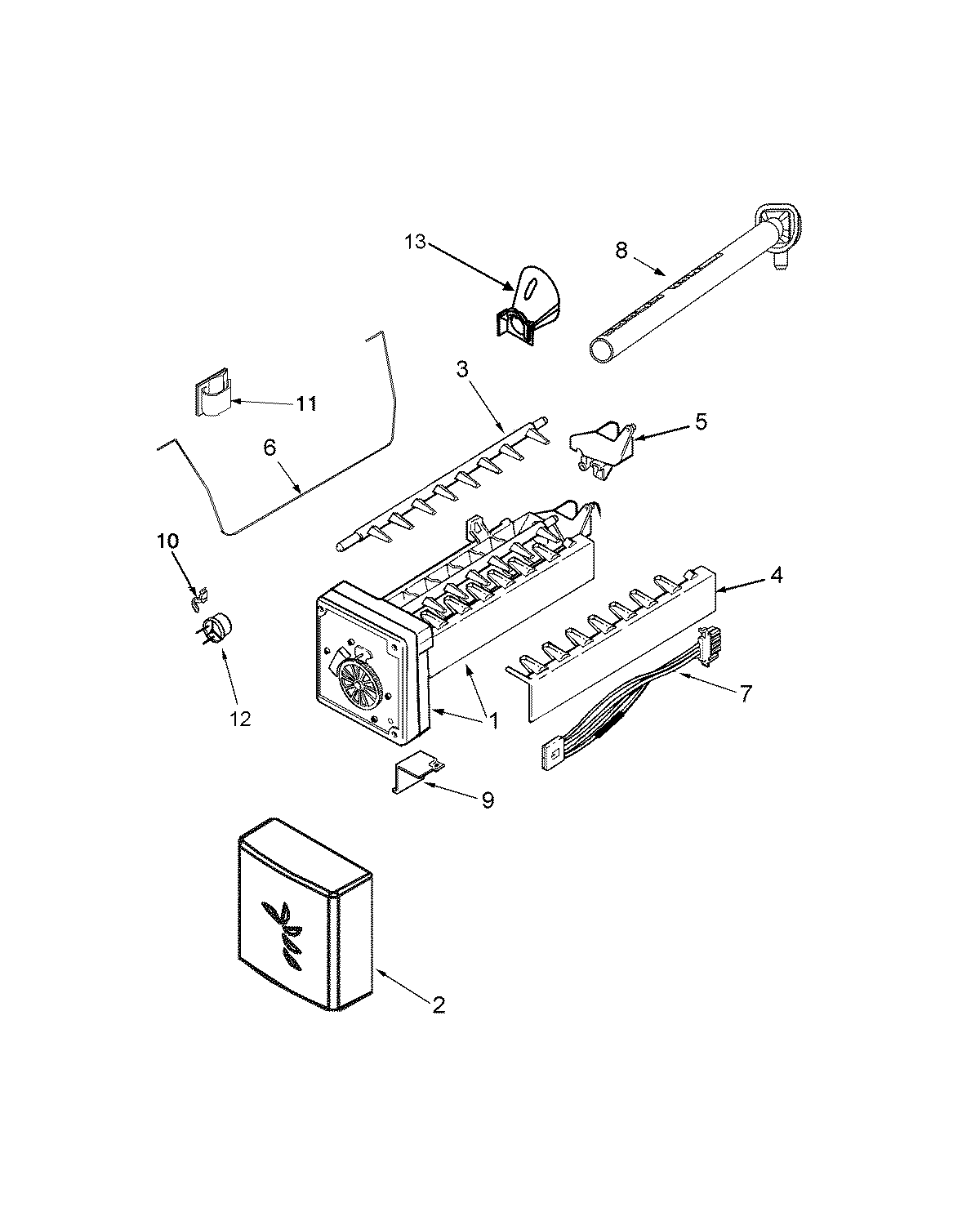

MSD2351KES 14 – ICE MAKER

Products

PositionProduct
1MAY 67006699
1MAY 67006698
1WP2256087 Whirlpool Refrigerator Bracket
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2Cover
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP628356 Whirlpool Refrigerator Fill Cup
6MAY 12671401Q
7WPW10146386 Whirlpool Refrigerator Wire Harness
8WP67003576 Whirlpool Refrigerator Fill Tube Elbow
9BRACKET, MODULE & HEATER
9MAY 95108-1
10WP2315522 Whirlpool Refrigerator Clip
11WPM0104106 Whirlpool Refrigerator Clip
12MAY 95093-1
12WP627985 Whirlpool Icemaker Cycling Thermostat
13MAY 67005603
14W11033771 Whirlpool Refrigerator Coupling
158003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
