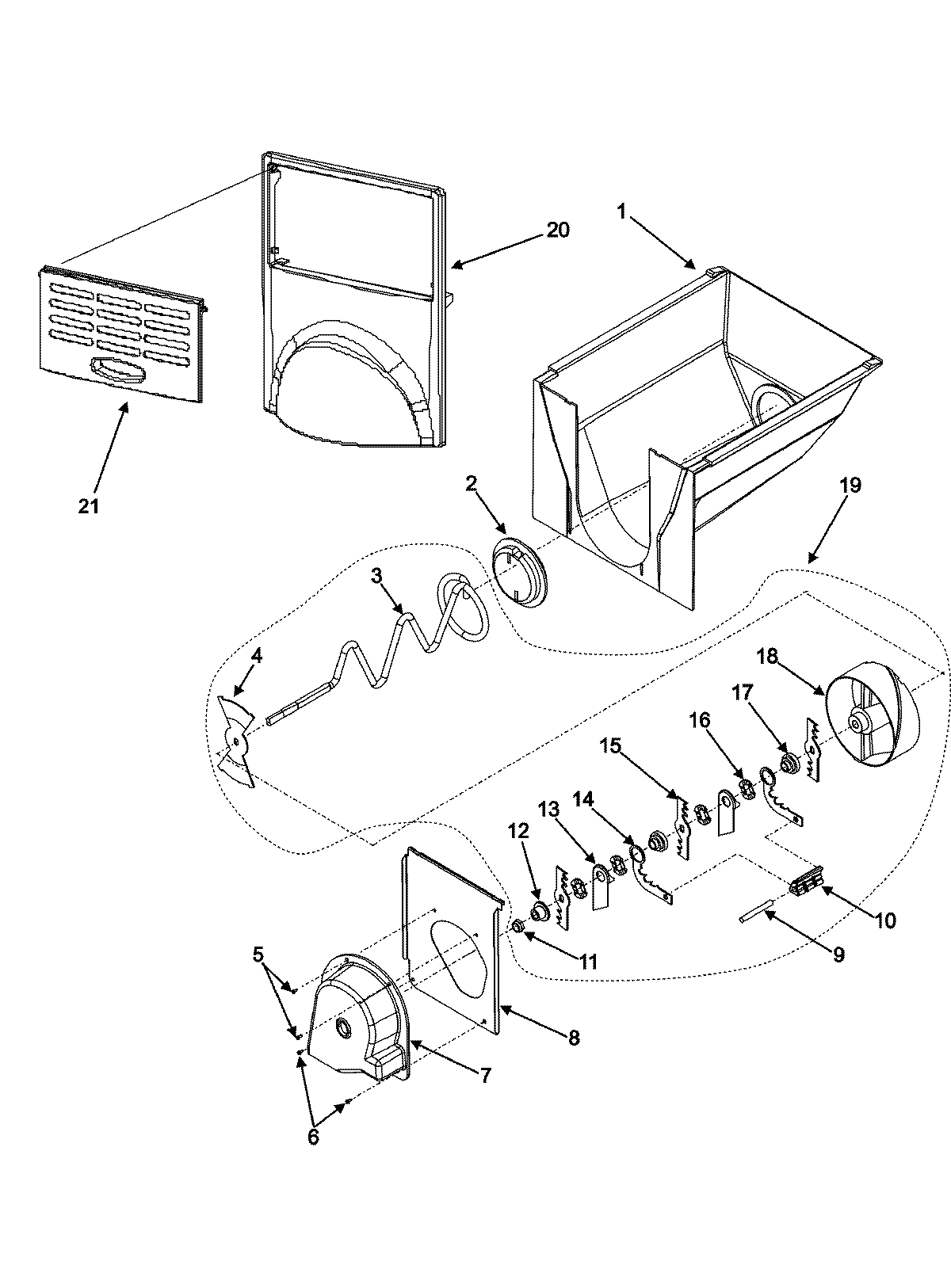

MSD2352KEB 13 – ICE BUCKET ASSY.

MSD2352KEB 13 – ICE BUCKET ASSY.

Written by

in

MSD2352KEB 13 – ICE BUCKET ASSY.

Products

PositionProduct
1WP67006006 Whirlpool Refrigerator Ice Bucket
2MAY D7749401
3MAY 10114401
4MAY 10113801
5MAY 67006508
6Screw (10)
7MAY 67002271
8MAY 10115001
9MAY M1200108
10MAY 10114101
11WPM0223101 Whirlpool Refrigerator Nut
12MAY 10113901
13MAY 10275201
14MAY 10114601
15MAY 10114501
16MAY 10275101
17WASHER STEPPED
18WP67002052 Whirlpool Ice Crusher Blade
19WP12740302 Whirlpool Refrigerator Crusher Mechanism
20MAY 67004194
21MAY 67004195
