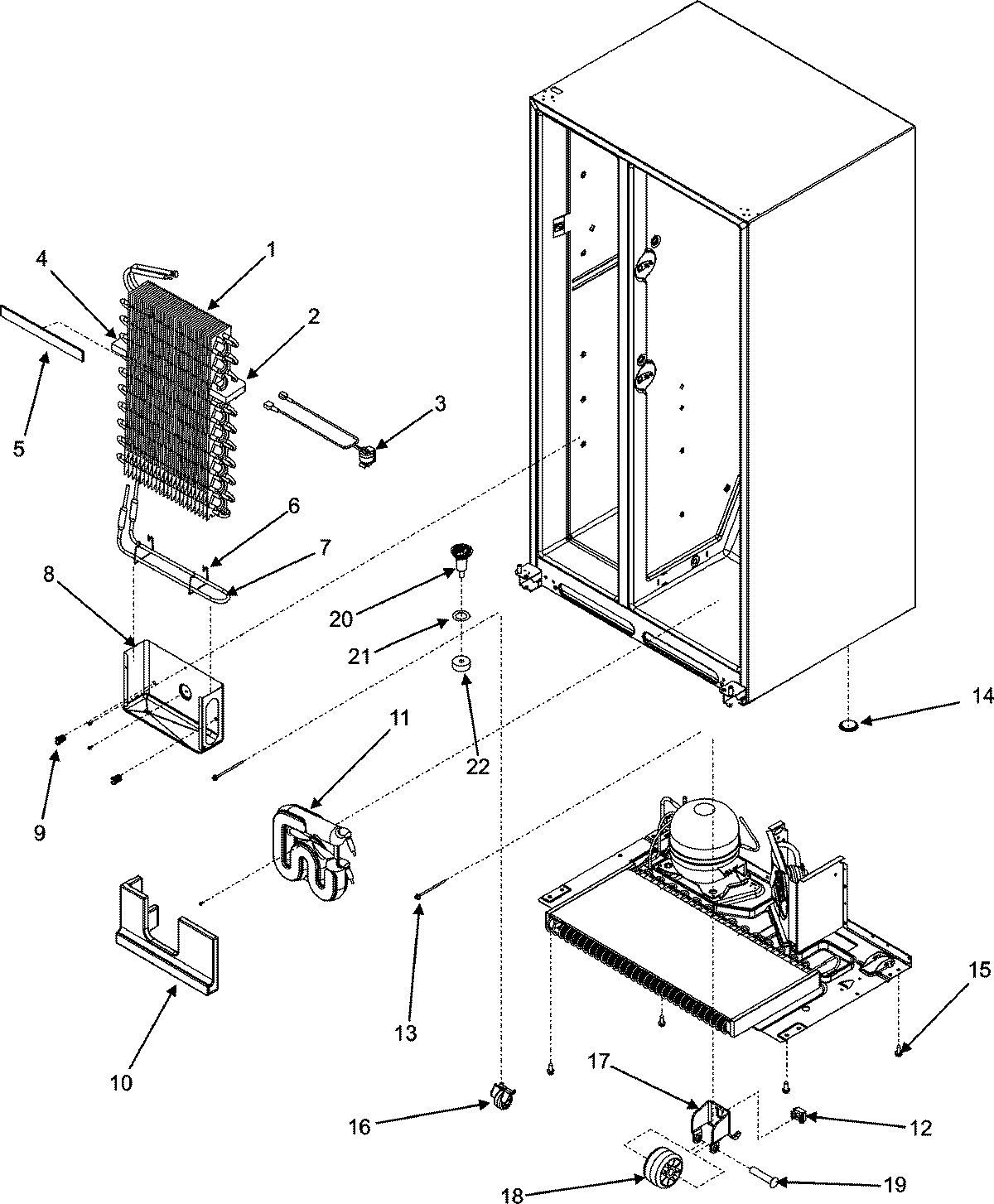

MSD2352KES 06 – EVAPORATOR/FRONT ROLLERS/WATER TANK

MSD2352KES 06 – EVAPORATOR/FRONT ROLLERS/WATER TANK

Written by

in

MSD2352KES 06 – EVAPORATOR/FRONT ROLLERS/WATER TANK

Products

PositionProduct
1MAY 12002515
2MAY 12590102
3WP67004757 Whirlpool Refrigerator Thermostat
4MAY 12590101
5MAY 67004947
6W11673433 Whirlpool Clip
7WP67004948 Whirlpool Refrigerator Evaporator Heater
8MAY 67004949
8MAY 67006838
9MAY 10623003
10MAY 67004309
11WP98165 Whirlpool Screw
11MAY 67003504
12MAY M0286708
1371003131 Whirlpool Oven Screw
14A3076901 Whirlpool Refrigerator Plug
15Screw (4)
16ROLLER BRACKET ASSY
1712456801V Whirlpool Refrigerator Bracket
18WP10450603 Whirlpool Refrigerator Roller
19MAY M1205302
20MAY 12456901
21MAY M0500703
22Gasket
23MAY 67006839
