MSD2352KEW 12 – HINGES & TOE GRILLE

MSD2352KEW 12 – HINGES & TOE GRILLE

Written by

in

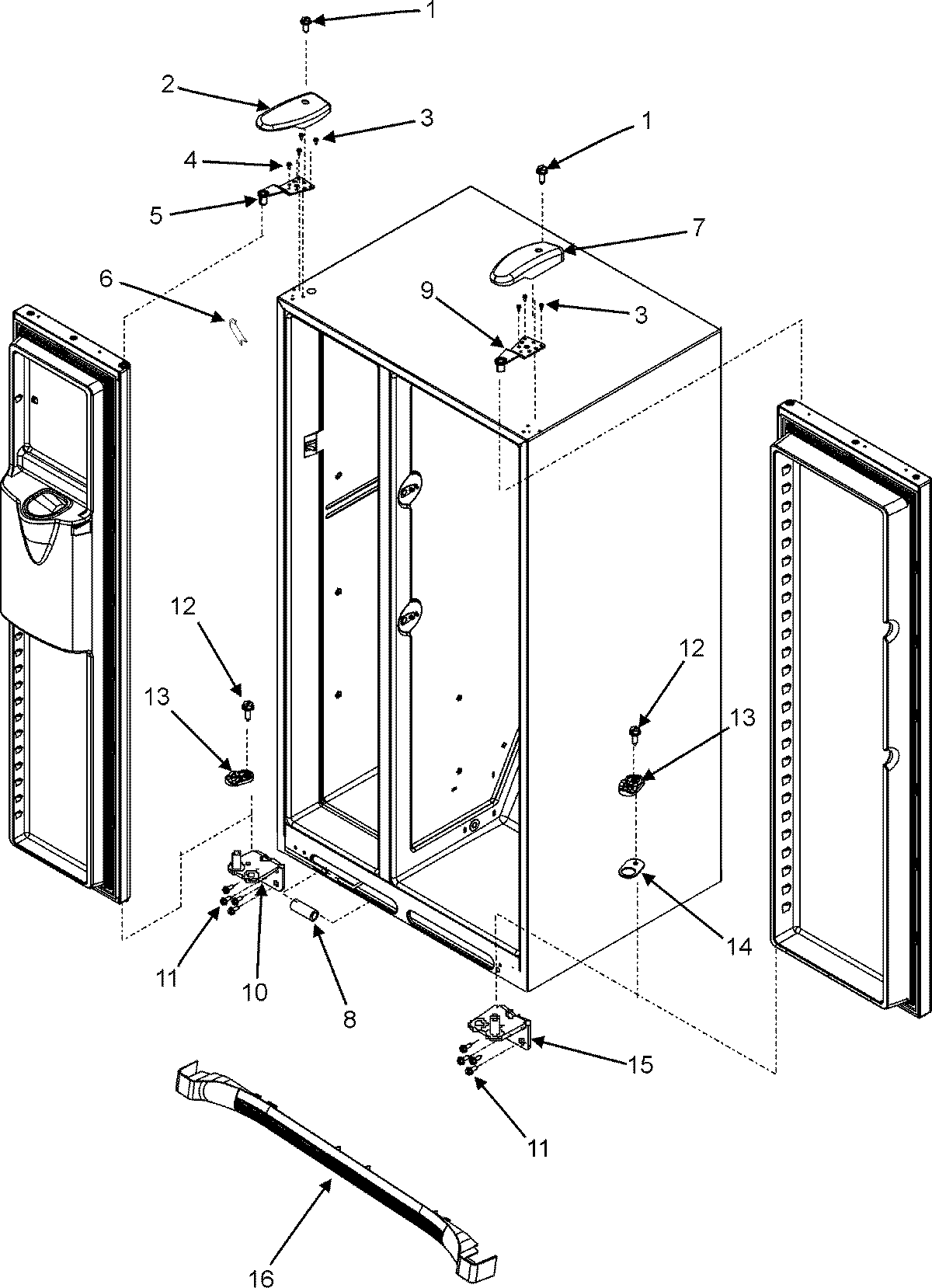

MSD2352KEW 12 – HINGES & TOE GRILLE

Products

PositionProduct
1WP8281196 Whirlpool Screw
2MAY 67004029
3WP489349 Whirlpool Refrigerator Screw
4MAY 67006487
5MAY 67005831
667003484 Whirlpool Refrigerator White Corner Cover
7MAY 67004030
8WP2300868 Whirlpool Refrigerator Fitting
9W10850512 Whirlpool Refrigerator Door Hinge
10MAY 67006685
11MAY 67006491
12MAY 67006492
13MAY 67006493
14WP67005716 Whirlpool Refrigerator Shim
15MAY 67006686
16Clip, Grille
16MAY 67006949
