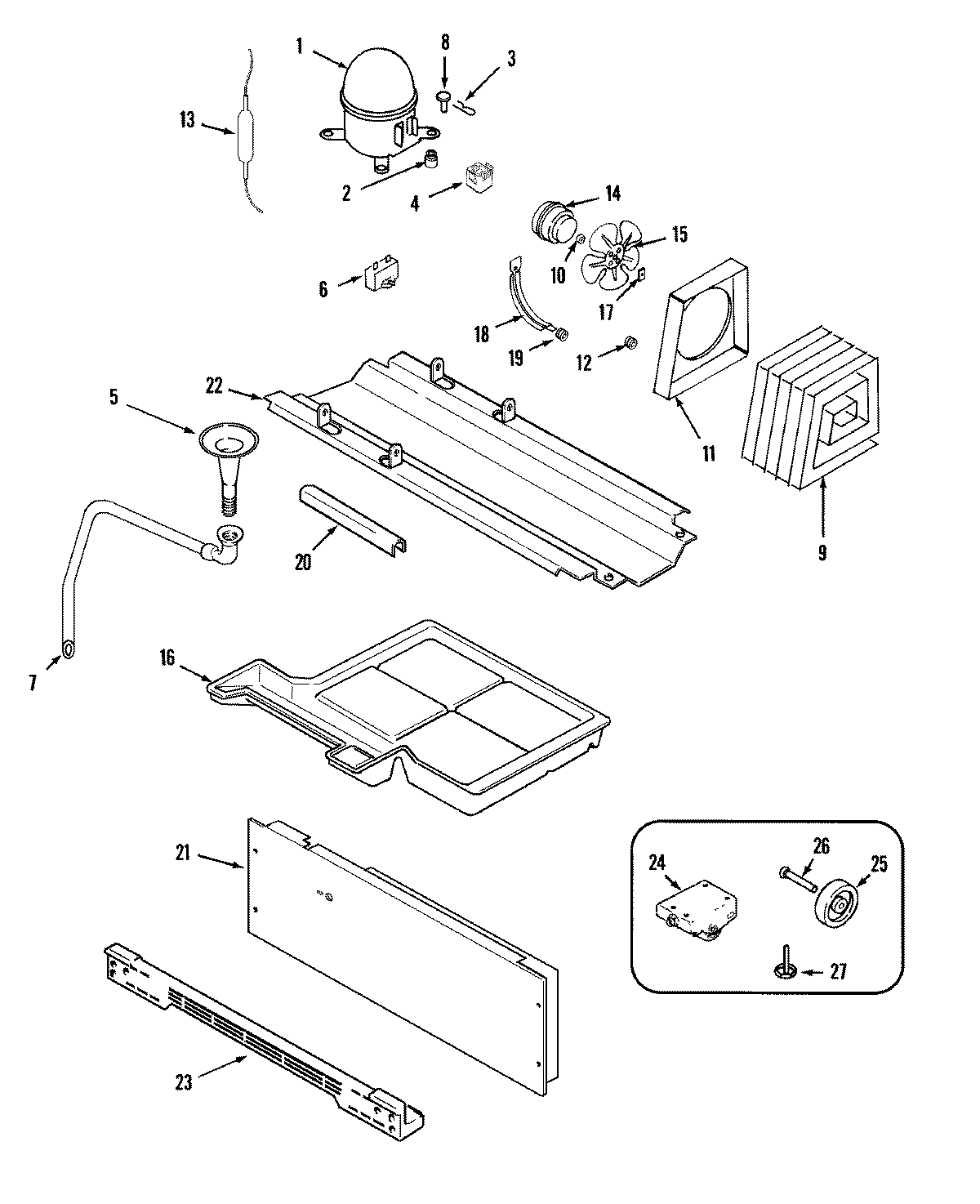

MSD2422GRQ 01 – COMPRESSOR

Products

Position	Product
1	W10309995 Whirlpool Refrigerator Compressor
1	MAY 61004917
1	W10160407 Whirlpool Refrigerator Compressor
2	WP4387558 Whirlpool Refrigerator Compressor Grommet
2	GROMMET (SERVICE)
3	MAY 61005561
4	MAY 61005620
4	MAY 61006187
4	12002784 Whirlpool Refrigerator Compressor Start Relay Overload Kit
4	12002794 Whirlpool Refrigerator Overload Relay Kit
5	MAY 61004751
6	WP65889-4 Whirlpool Refrigerator Capacitor
7	MAY 53516-9
7	MAY 61003133
8	MAY 61006030
9	WP489399 Whirlpool Refrigerator Screw
9	MAY 61005453
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	833697 Whirlpool Condenser Fan Motor
14	MAY 65275-33
15	MAY 60683-1
16	MAY 61004095
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	MAY 61004584
21	MAY 65275-50
21	MAY 61004661
22	WP67006715 Whirlpool Refrigerator Screw
22	MAY 61005268
23	SCREW
23	MAY 61004919
24	MAY 61005232
24	WP489478 Whirlpool Refrigerator Screw
25	WP61003826 Whirlpool Wheel
26	WP61002104 Whirlpool Refrigerator Pin Wheel
27	MAY 61002014
28	MAY 12001547
