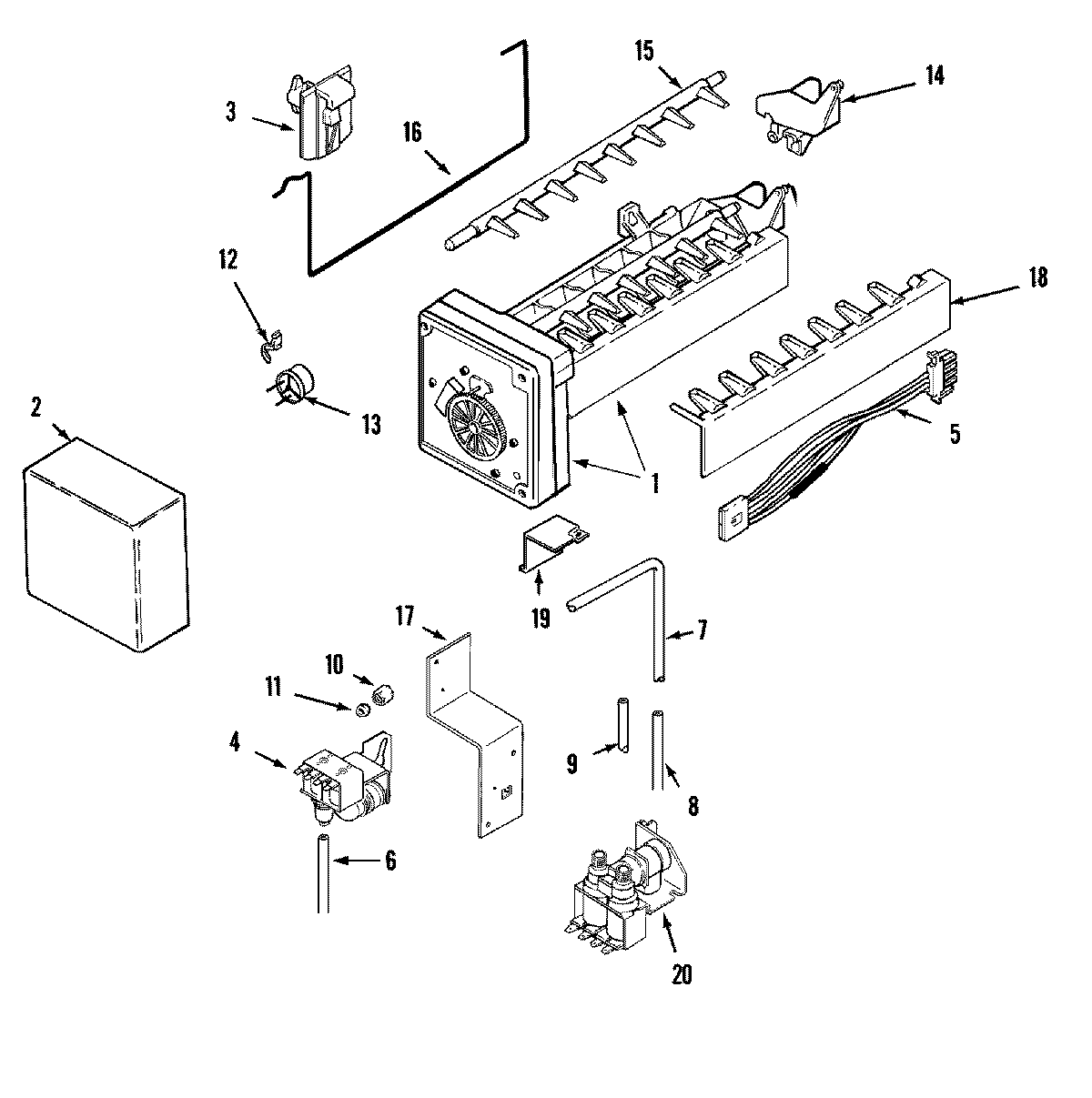

MSD2432GRW 10 – ICE MAKER

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	MAY 61005374
3	WP61005028 Whirlpool Refrigerator Support
4	WP61005627 Whirlpool Refrigerator Inlet Valve
5	MAY 61005276
6	MAY 61005058
6	MAY 61006085
6	WPM0114003 Whirlpool Microwave Speed Clip Clamp
7	MAY 61005641
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 67579-1
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	WP2315522 Whirlpool Refrigerator Clip
13	WP627985 Whirlpool Icemaker Cycling Thermostat
13	MAY 95093-1
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	MAY 61005657
17	MAY 61003732
17	MAY 61002819
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	MAY 95108-1
19	BRACKET, MODULE & HEATER
20	WP489399 Whirlpool Refrigerator Screw
20	61005626 Whirlpool Water Inlet Valve
