MSD2456GEB 02 – CONTROLS
Written by
in

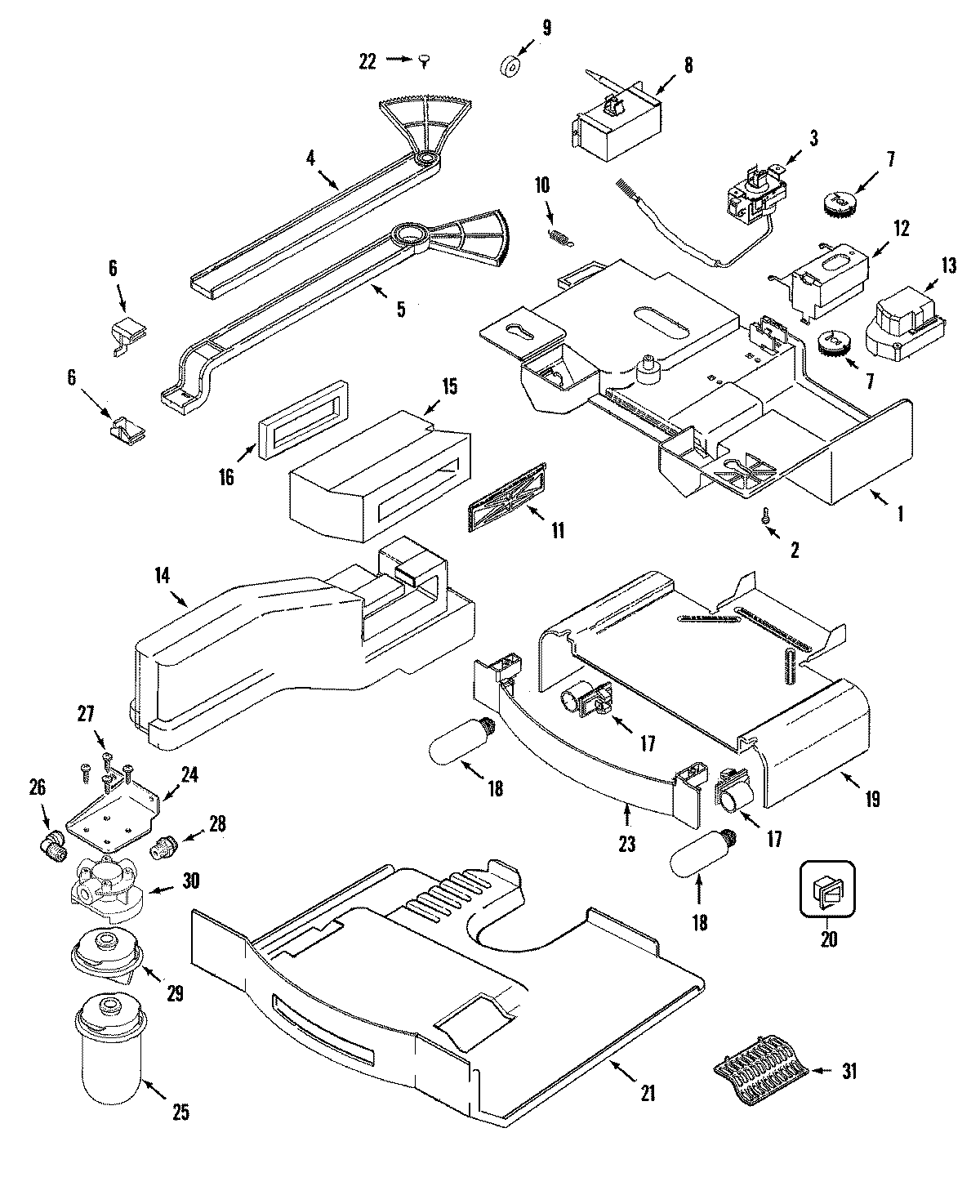

MSD2456GEB 02 – CONTROLS
Products
Position
Product
1
MAY 61003228
1
MAY 61005989
1
MAY 61005021
2
WPW10348409 Whirlpool Screw
3
SCREW
3
WP61005516 Whirlpool Refrigerator Temperature Control
4
MAY 61003287
5
MAY 61003293
6
MAY 61004591
7
MAY 61003305
8
MAY 61003359
8
MAY 61005022
9
MAY 61003358
10
MAY 61003141
11
MAY 61003235
12
MAY 61003315
13
WP68233-2 Whirlpool Refrigerator Defrost Timer
13
MAY 405007-1
13
MAY 61005951
14
MAY 61003229
14
MAY 61003230
14
MAY 61005972
15
MAY 61005075
15
MAY 61003231
15
MAY 61005994
16
MAY 61003819
17
MAY 61003237
17
MAY 61005973
18
MAY 61005975
18
MAY 61005974
18
MAY 61003354
18
MAY 61003355
18
WPA3073101 Whirlpool Light Bulb
19
MAY 61005976
19
MAY 61003238
20
W11396033 Whirlpool Refrigerator Rocker Switch
20
MAY 61006166
21
MAY 61004506
22
MAY 61003316
23
MAY 400031-1
23
MAY 61004380
24
MAY 61003698
25
MAY UKF7002AXX
26
MAY 61003705
27
MAY 61003796
28
MAY 61003790
29
MAY 61003791
30
MAY 61003789
31
MAY 61004590
32
MAY 61004697
32
MAY 61005977
33
SEE NOTE GROUND WIRE, GREEN
33
MAY 61004662
←
