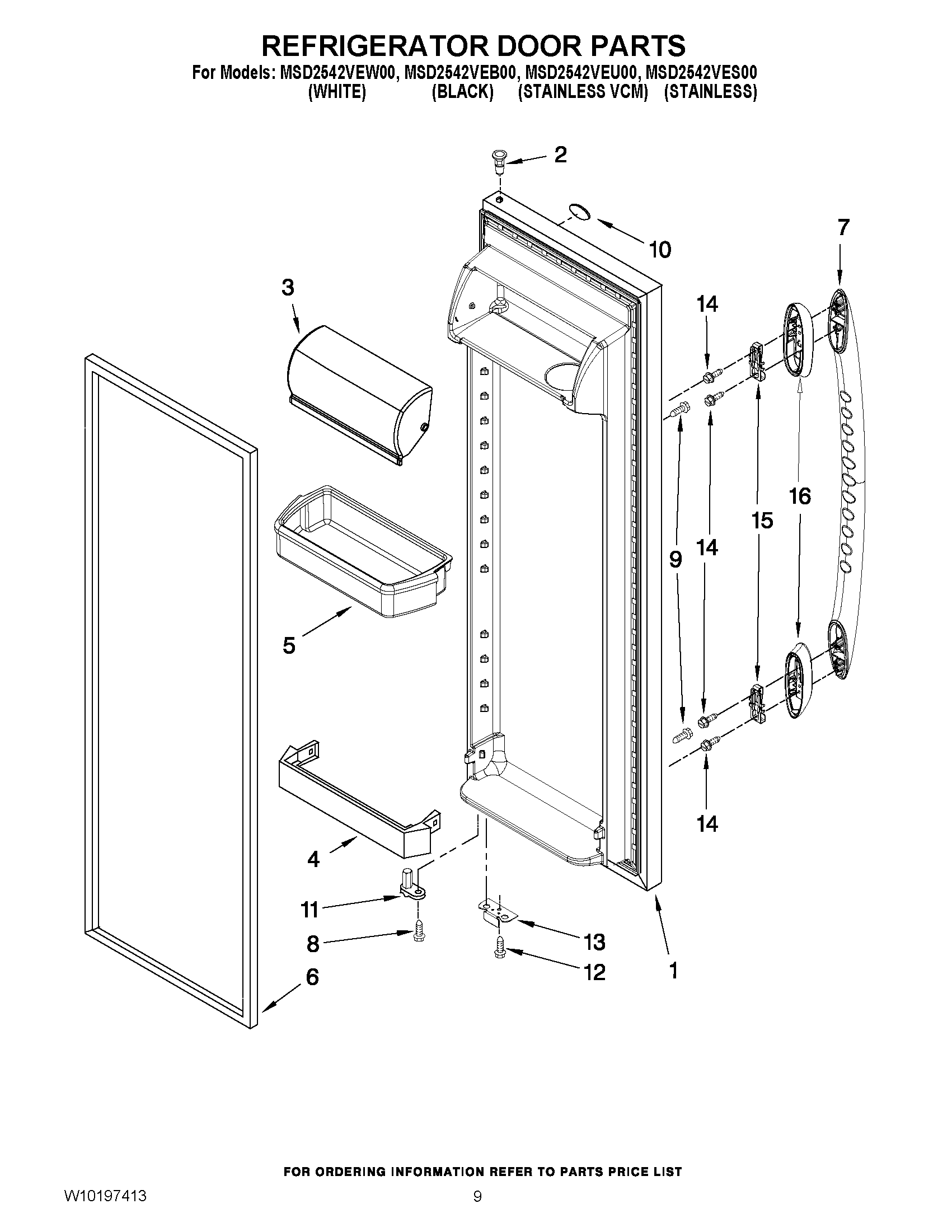

MSD2542VEB00 06 – REFRIGERATOR DOOR PARTS

MSD2542VEB00 06 – REFRIGERATOR DOOR PARTS

Written by

in

MSD2542VEB00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10170585
1MAY W10170583
1MAY W10159873
1MAY W10153847
2MAY 2308091
3Door, Compartment
4Trivet
5Door Bin (3)
6MAY 2309529
6Door Gasket, Magnetic (White)
7MAY 12743701B
7MAY 12743701W
8MAY 3400012
9MAY 2326016
10Nameplate
11DOOR CLOSER
12MAY 489420
13BRACKET, DOOR STOP ZINC (FOR WHITE MODEL)
13BRACKET, DOOR STOP (BLACK)
14MAY 12990203
15MAY 13067101
16MAY 12834803B
16MAY 12834803W
