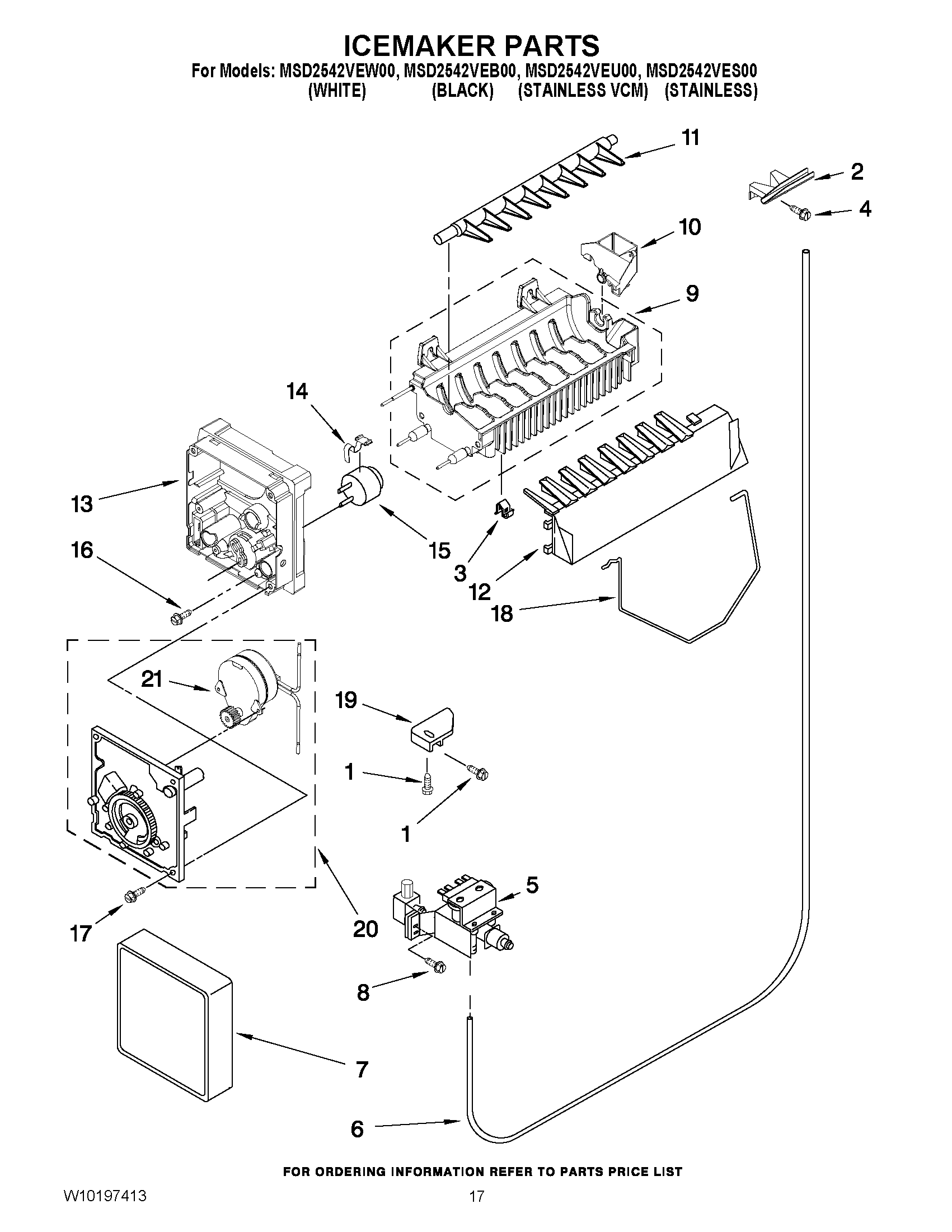

MSD2542VEB00 10 – ICEMAKER PARTS

Products

PositionProduct
2MAY 2209774
3Clip
4MAY 489478
5MAY 2188708
6TUBE-WATER
7COVER
8MAY 488649
9ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
10MAY W10122561
11MAY 627843
12ICE STRIPPER
13MAY 2194712
14MAY 2315522
15Thermostat (Also Order 542369 Cement Alumilastic)
16MAY 8533917
17MAY 489276
18MAY 2304354
19MAY 628320
20Module Assembly (Includes Items 23 and 24)
21LINER (NOT A SERVICEABLE PART)
100MAY W10190966
