MSD2542VEB01 08 – DISPENSER FRONT PARTS – Aparts

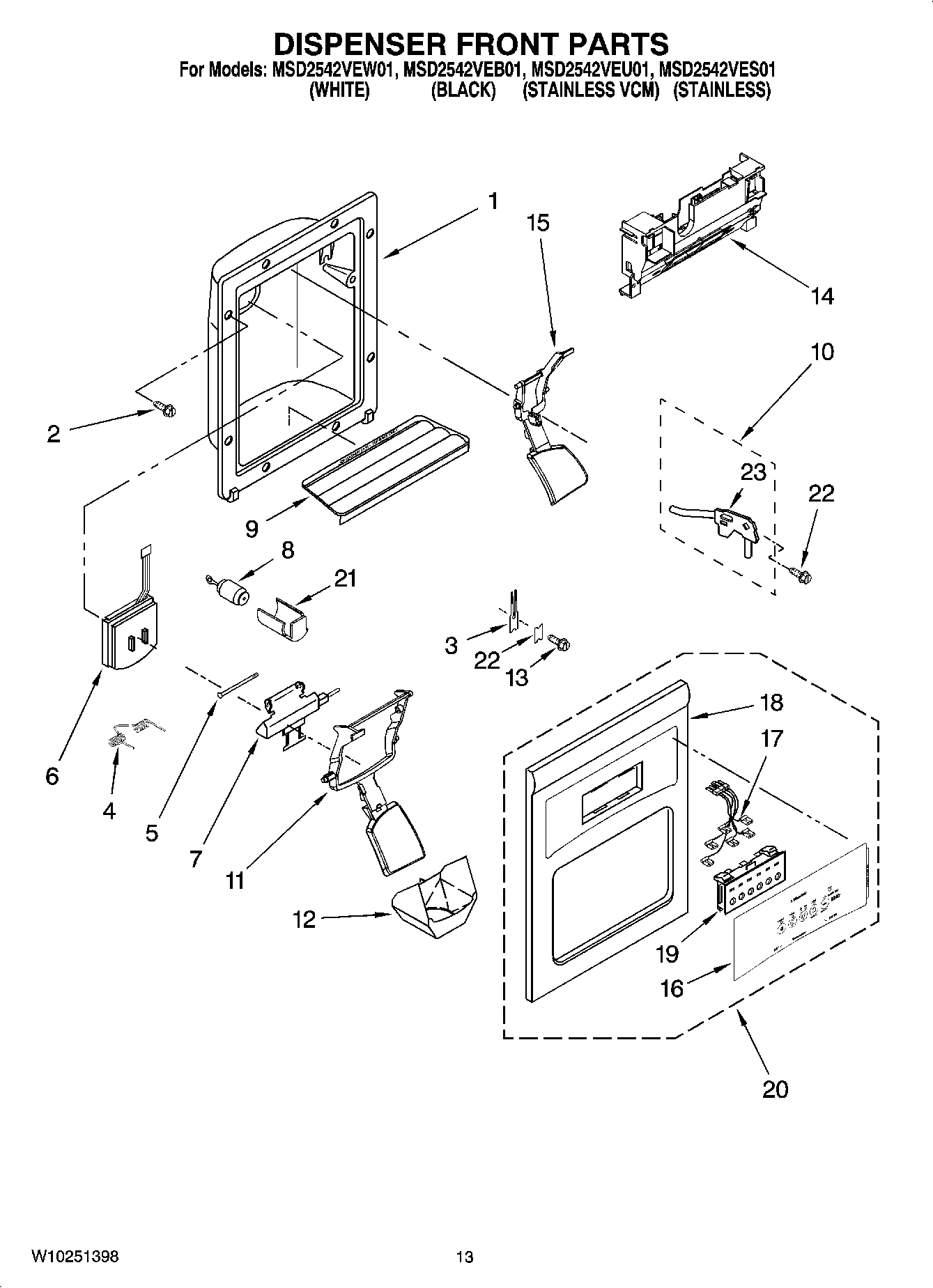

MSD2542VEB01 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	Screw
3	MAY 2194719
4	MAY 2304772
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	Grille, Overflow (Black)
9	Grille, Overflow (White)
10	MAY 2304317
11	Lever, Ice Dispenser (White)
11	Lever, Ice Dispenser (Black)
12	MAY 2180224
13	MAY 489000
14	MAY 2183771
15	Lever, Water Dispenser (White)
15	Lever, Water Dispenser (Black)
17	MAY 2325305
19	Switch Assembly
20	MAY W10159864
20	MAY W10153855
21	Sleeve, Delay Mechanism
22	MAY 2195051
23	MAY 2304673
