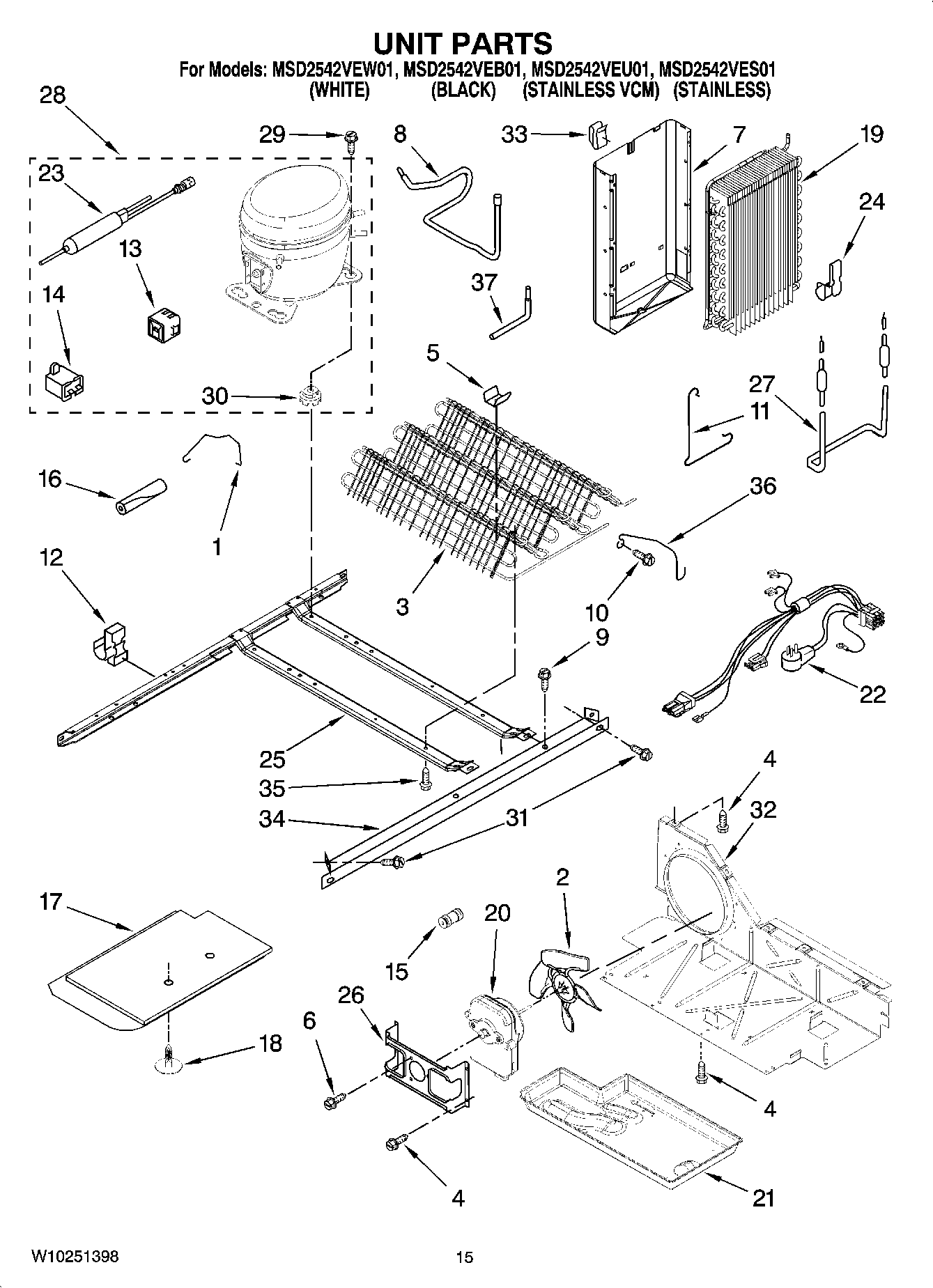

MSD2542VEB01 09 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY 2263990
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	MAY 2311725
6	MAY 8533993
7	Heat Shield
8	MAY 2205765
9	MAY 489427
10	MAY 489478
11	Clip
12	Clip, Wire
13	Start-Device, Combination (Start Relay and Overload) (Production)
13	Start-Device, Combination (Start Relay and Overload) (Service)
14	Capacitator (Production)
15	Connector, Water
16	Sleeve, Pressure Switch Hose
17	Unit Cover, Bottom
18	MAY 489396
19	Evaporator
20	MOTOR, CONDENSOR
21	MAY 1105523
22	Unit, Harness
23	Drier
23	Drier
24	MAY 2304287
25	Unit Mounting Frame
26	MAY 2181929
27	MAY 2188175
28	Compressor (Includes Items 11, 13, 20, & 21) (Also Order 876765 Tube Kit)
29	MAY 489373
30	MAY 4387558
30	Grommet (Production)
31	MAY 489340
32	MAY W10163483
33	MAY 2155547
34	MAY W10196323
35	MAY 8281232
36	MAY 2260517
37	MAY 2325479
