MSD2542VES00 02 – REFRIGERATOR LINER PARTS
Written by
in

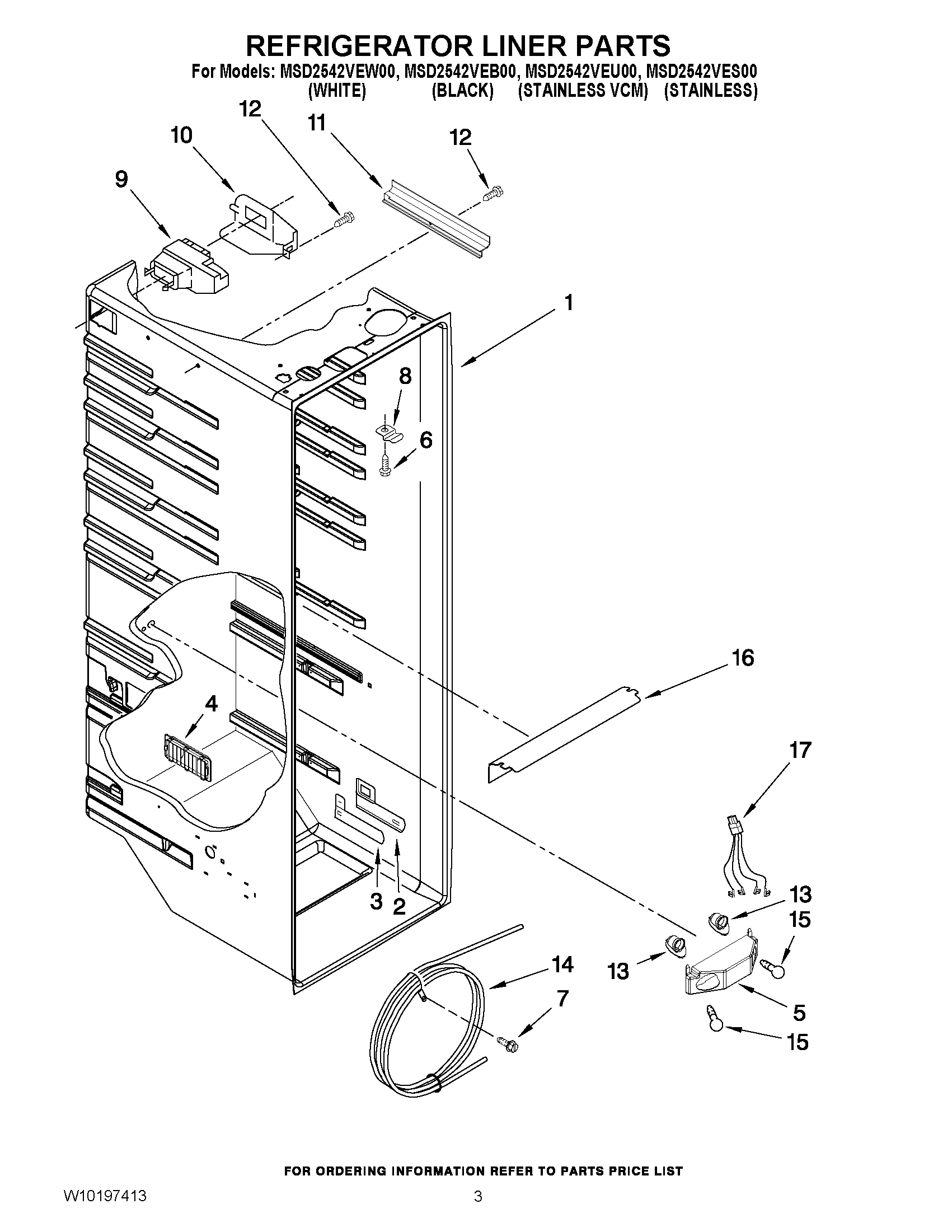

MSD2542VES00 02 – REFRIGERATOR LINER PARTS
Products
Position
Product
1
LINER (NOT A SERVICEABLE PART)
2
MAY W10175967
3
MAY 2182757
4
MAY 2257741
5
MAY 2256035
6
MAY 489084
7
Screw
8
CLIP, CONTROL BOX
9
MAY 2209753
10
Air Diffuser Cover
11
COVER, WIRING
12
MAY 486298
13
Socket, Light
14
RESERVOIR
15
MAY 527949
16
MAY 2209769
17
Wire Harness, Dual Crisper
←
