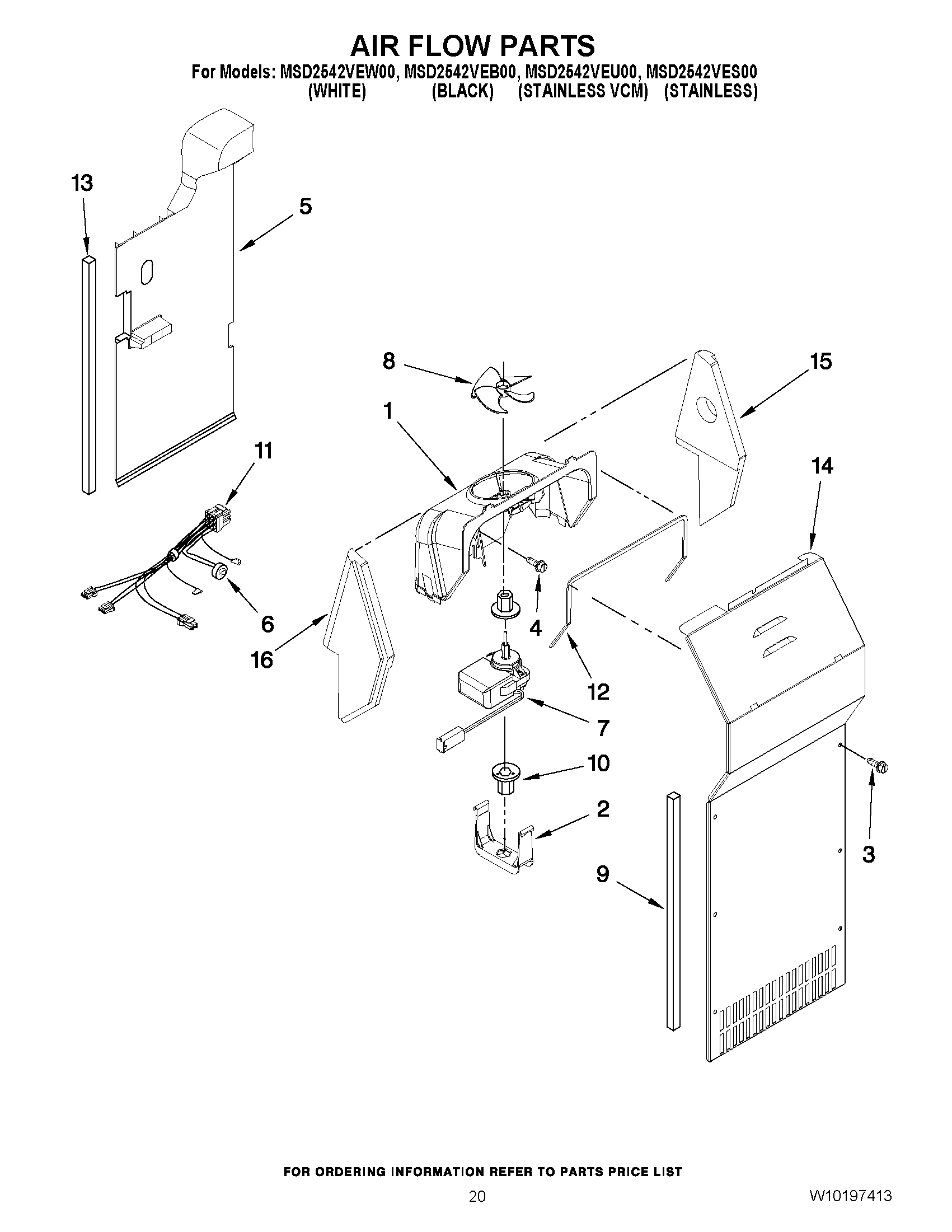

MSD2542VES00 12 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 8281159
4	MAY 489478
5	AIR DUCT FREEZER
6	MAY W10225581
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	MAY W10297480
12	Gasket, Fan Scroll
13	MAY 2203876
14	Cover, Evaporator (Includes 9)
15	SUPPORT, FAN SCROLL (RIGHT HAND)
16	SUPPORT, FAN SCROLL (LEFT HAND)
