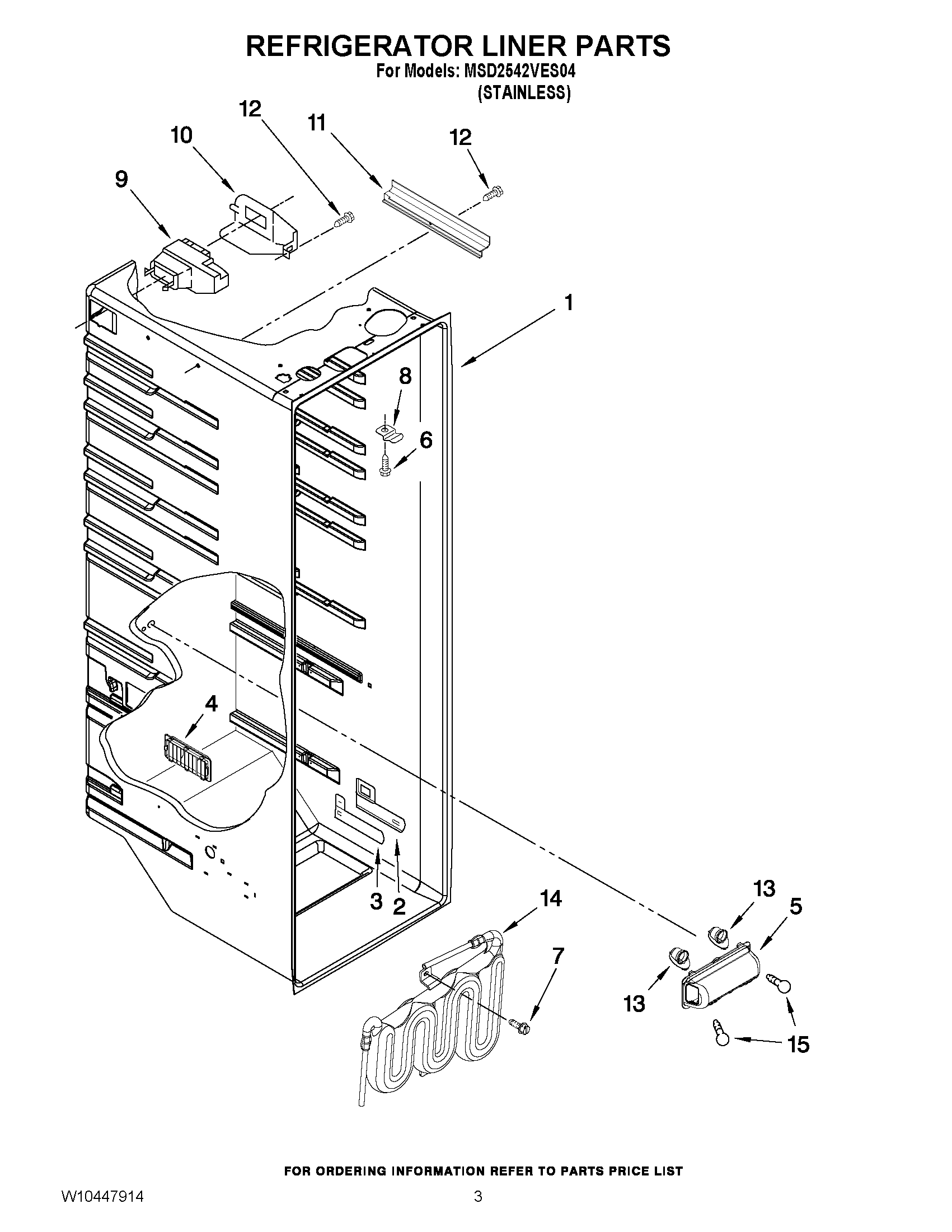

MSD2542VES04 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10175967
3MAY 2182757
4MAY 2257741
5Lens, Light
6MAY 489084
7Screw
8CLIP, CONTROL BOX
9MAY W10151374
10Air Diffuser Cover
11COVER, WIRING
12MAY 486298
13Socket, Light
14MAY W10204356
15MAY 527949
