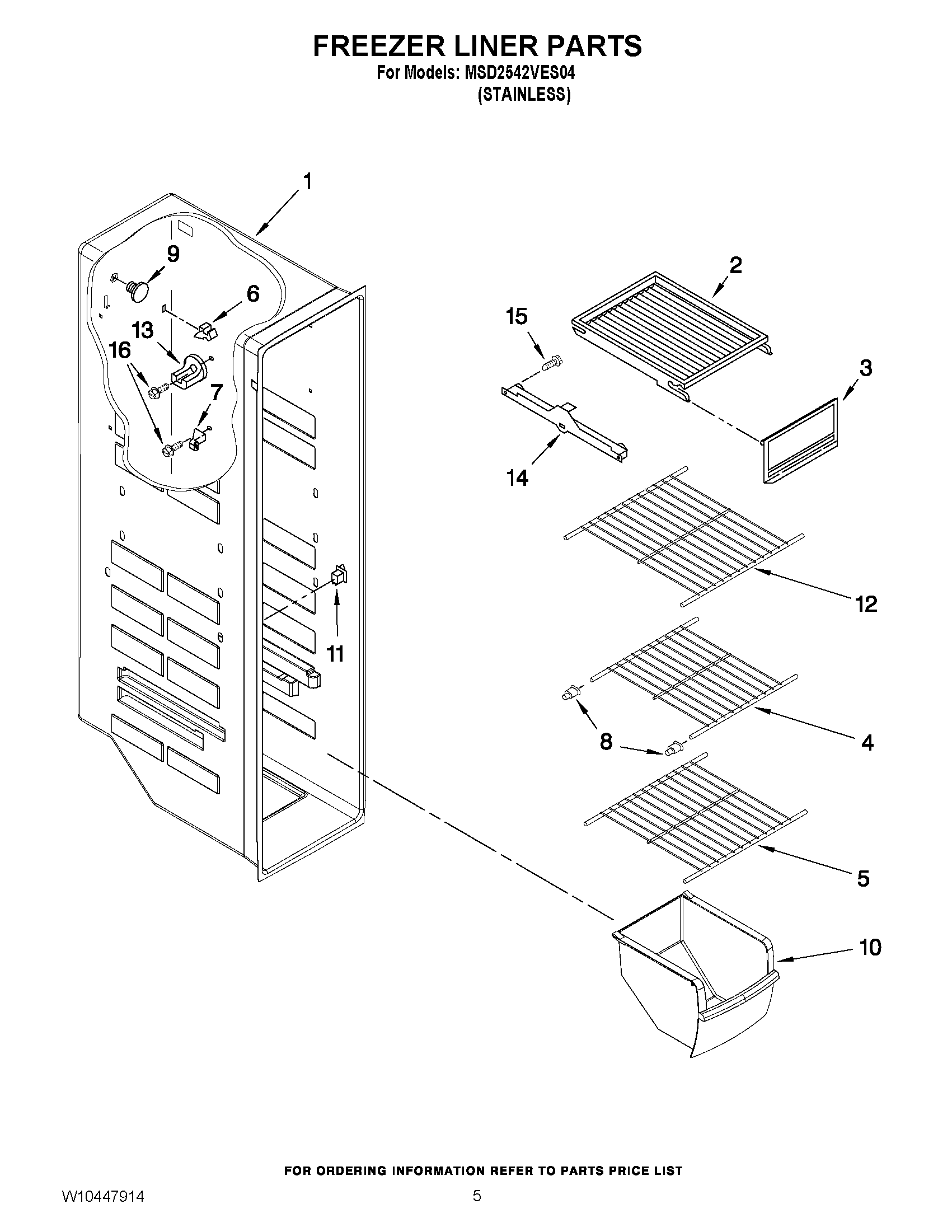

MSD2542VES04 04 – FREEZER LINER PARTS

MSD2542VES04 04 – FREEZER LINER PARTS

Written by

in

MSD2542VES04 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2171714
3	DOOR, ICE COMP
4	MAY W10318948
5	MAY W10318947
6	MAY 2315163
8	Cup, Shelf Mount
9	MAY 940014
10	Freezer Bin
11	Switch, Rocker Arm
12	MAY W10318946
13	Support, Stud (4)
14	Slide, Container (Left Side)
14	Slide, Container (Right Side)
15	MAY 489100
16	MAY 3400893
