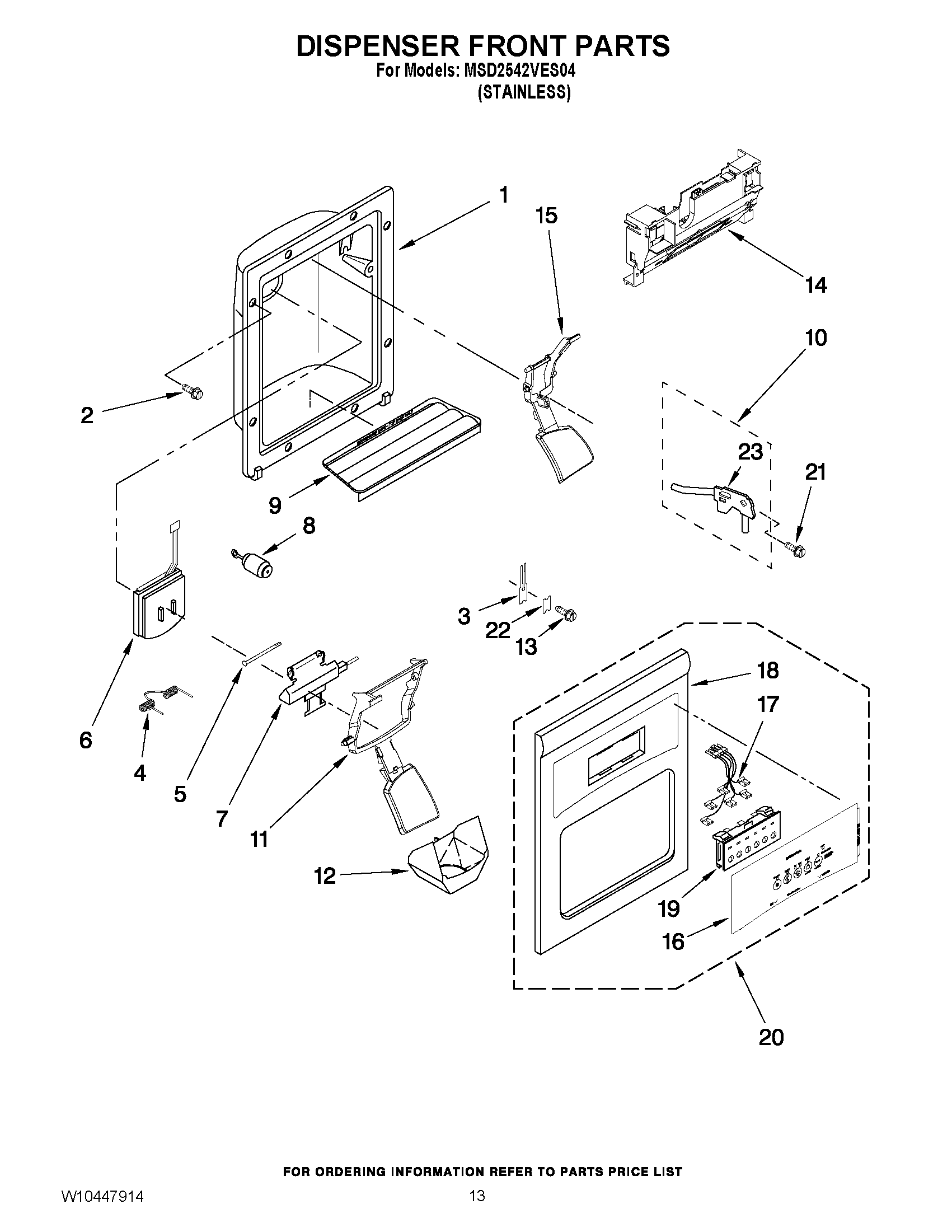

MSD2542VES04 08 – DISPENSER FRONT PARTS

MSD2542VES04 08 – DISPENSER FRONT PARTS

Written by

in

MSD2542VES04 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2Screw
3MAY 2194719
4MAY 2304772
5MAY 2196195
6MAY 2180353
7MAY 2304355
8MAY 2205686
9Grille, Overflow (Black)
10MAY 2304317
11Lever, Ice Dispenser (Black)
12MAY 2180224
14MAY W10282667
15Lever, Water Dispenser (Black)
18LINER (NOT A SERVICEABLE PART)
19Switch Assembly
20MAY W10159864
21MAY 489000
22MAY 2195051
23MAY 2304673
