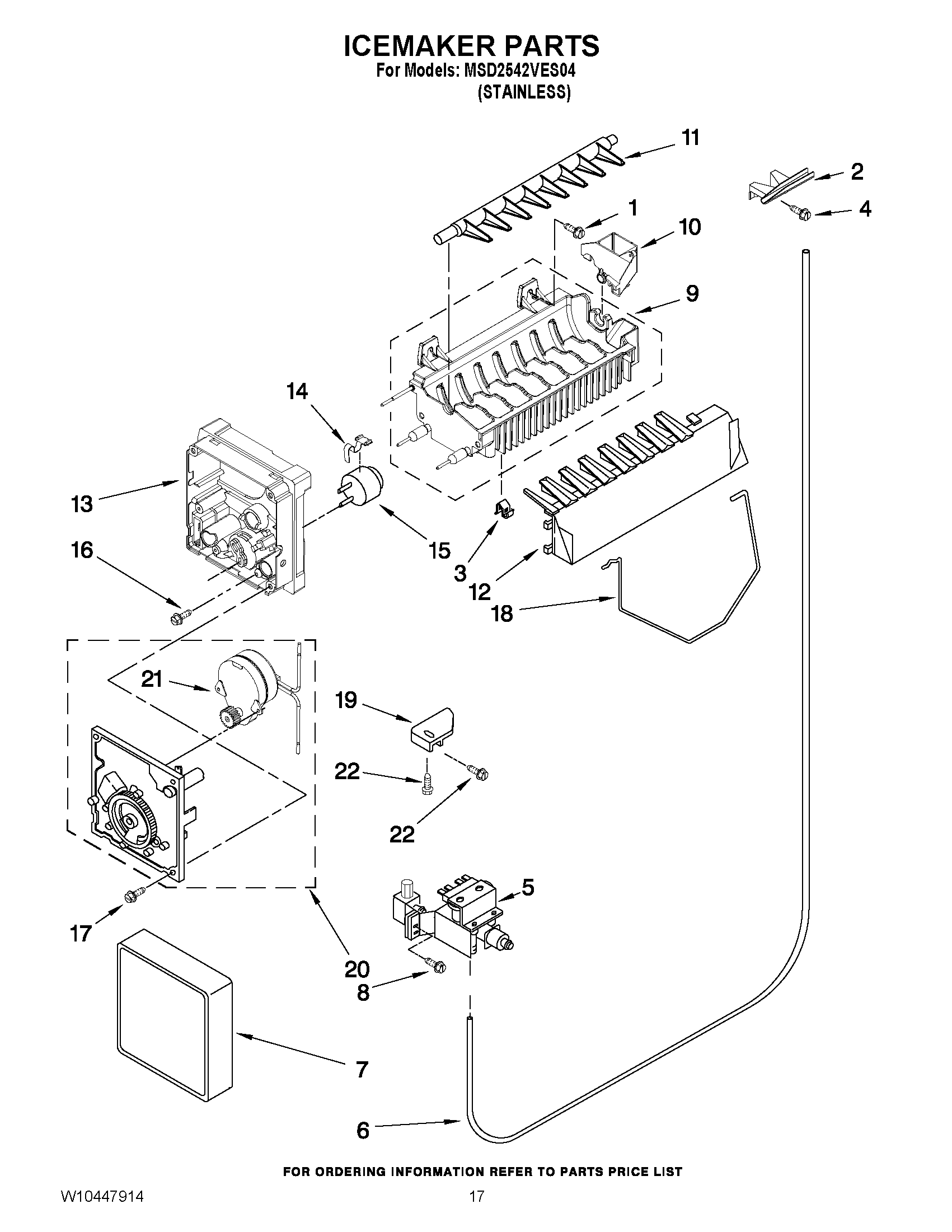

MSD2542VES04 10 – ICEMAKER PARTS

Products

Position	Product
1	Screw
2	MAY 2209774
3	Clip
5	MAY 2188708
6	TUBE-WATER
7	COVER
8	MAY 488649
9	MAY W10122527
10	MAY W10122561
11	MAY 627843
12	ICE STRIPPER
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	MAY 489276
18	MAY 2304354
19	MAY 628320
20	Module Assembly (Includes Items 23 and 24)
21	LINER (NOT A SERVICEABLE PART)
22	MAY 489478
100	MAY W10190966
