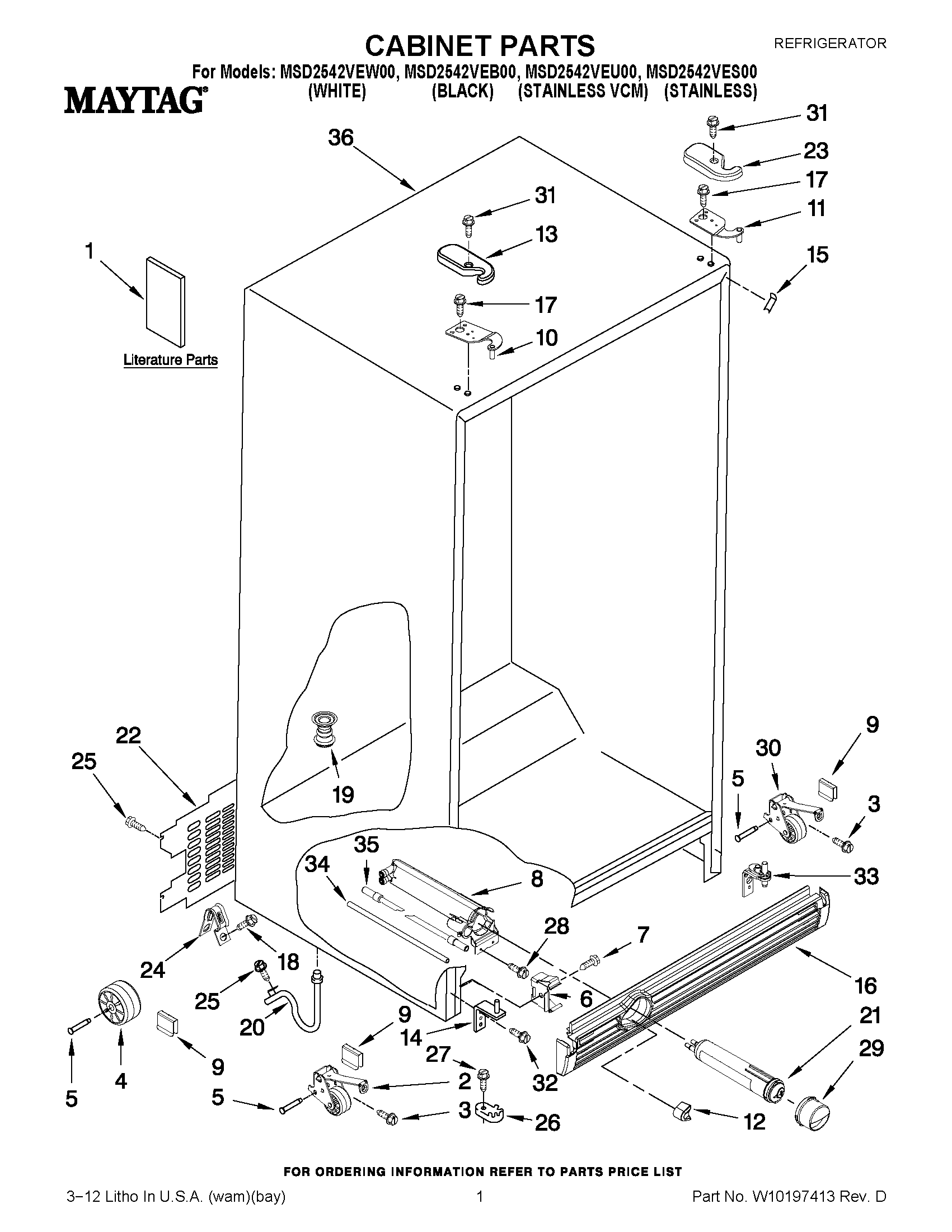

MSD2542VEU00 01 – CABINET PARTS

MSD2542VEU00 01 – CABINET PARTS

Written by

in

MSD2542VEU00 01 – CABINET PARTS

Products

Position	Product
1	MAY 628370
1	MAY W10154390
1	MAY W10158909
1	MAY W10321474
1	MAY W10153841
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	Roller
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 489478
8	Housing, Water Filter
9	CLIP, ROLLER
10	HINGE TOP FC
11	HINGE, TOP RC
12	MAY 2260503W
12	Button, Filter (Black)
13	HINGE COVER FC (BLACK)
13	HINGE COVER FC (WHITE)
14	HINGE BOTTOM (2)
15	CORNER FILLER (WHITE)
15	CORNER FILLER (BLACK)
16	MAY W10283951
16	GRILLE
17	MAY 489497
18	Screw (3)
19	MAY 2304888
20	MAY W10153550
21	MAY 4396841
22	MAY 2188735
23	HINGE COVER RC (WHITE)
23	HINGE COVER RC (BLACK)
24	MAY 549193
25	MAY 489084
26	MAY 2155311
27	MAY 489483
28	MAY 489500
29	MAY 2260502W
29	MAY 2260502B
30	ROLLER, FRONT (RIGHT)
31	MAY 8281227
32	Screw (4)
33	MAY W10400807
34	Tube, Filter Outlet
35	MAY W10281289
36	LINER (NOT A SERVICEABLE PART)
