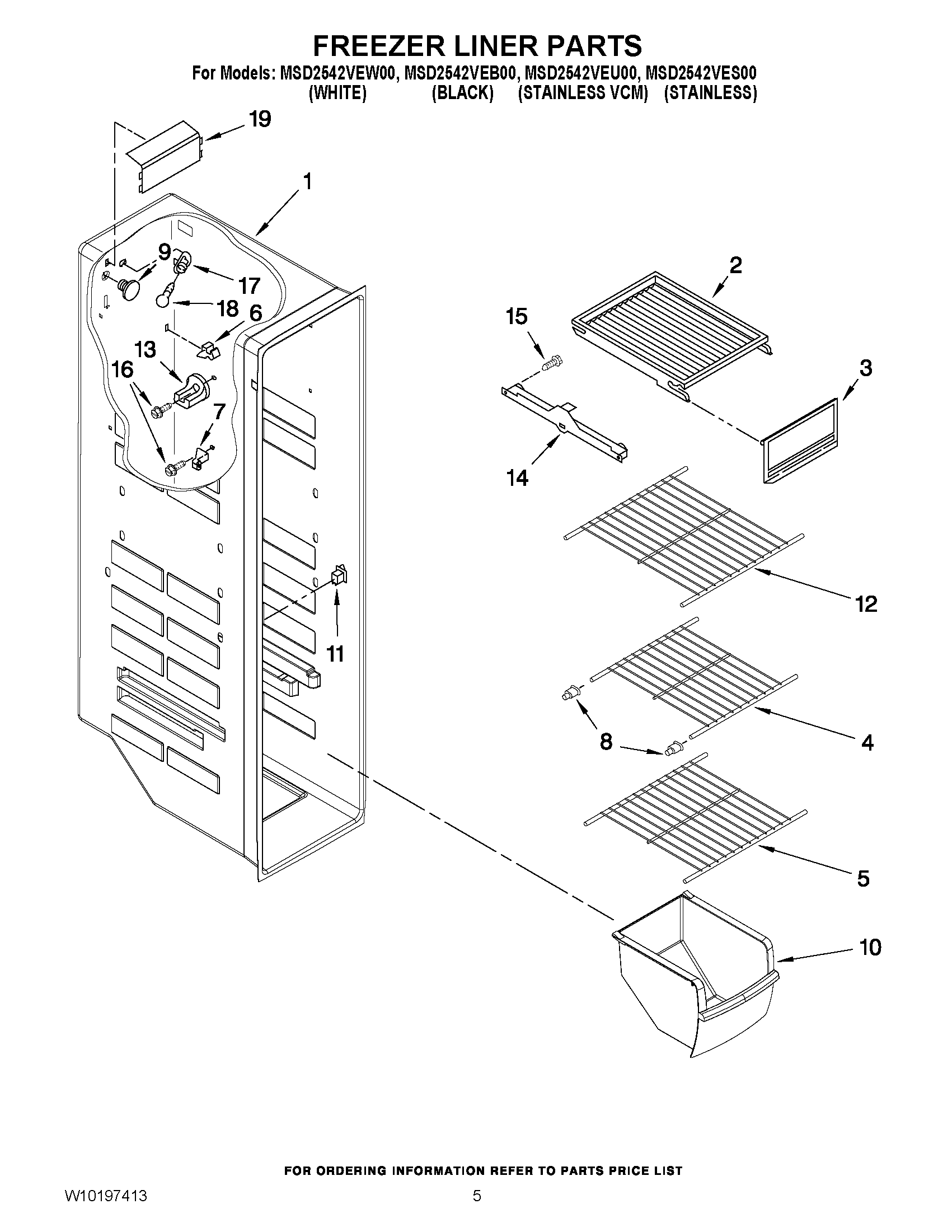

MSD2542VEU00 04 – FREEZER LINER PARTS

MSD2542VEU00 04 – FREEZER LINER PARTS

Written by

in

MSD2542VEU00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2171714
3	DOOR, ICE COMP
4	MAY W10318946
5	MAY W10318947
6	MAY 2315163
8	Cup, Shelf Mount
9	MAY 940014
10	Freezer Bin
11	Switch, Rocker Arm
12	MAY W10318948
13	Support, Stud (4)
14	Slide, Container (Right Side)
14	Slide, Container (Left Side)
15	MAY 489100
16	MAY 3400893
17	Socket, Light
18	MAY 527949
19	MAY 2171705
