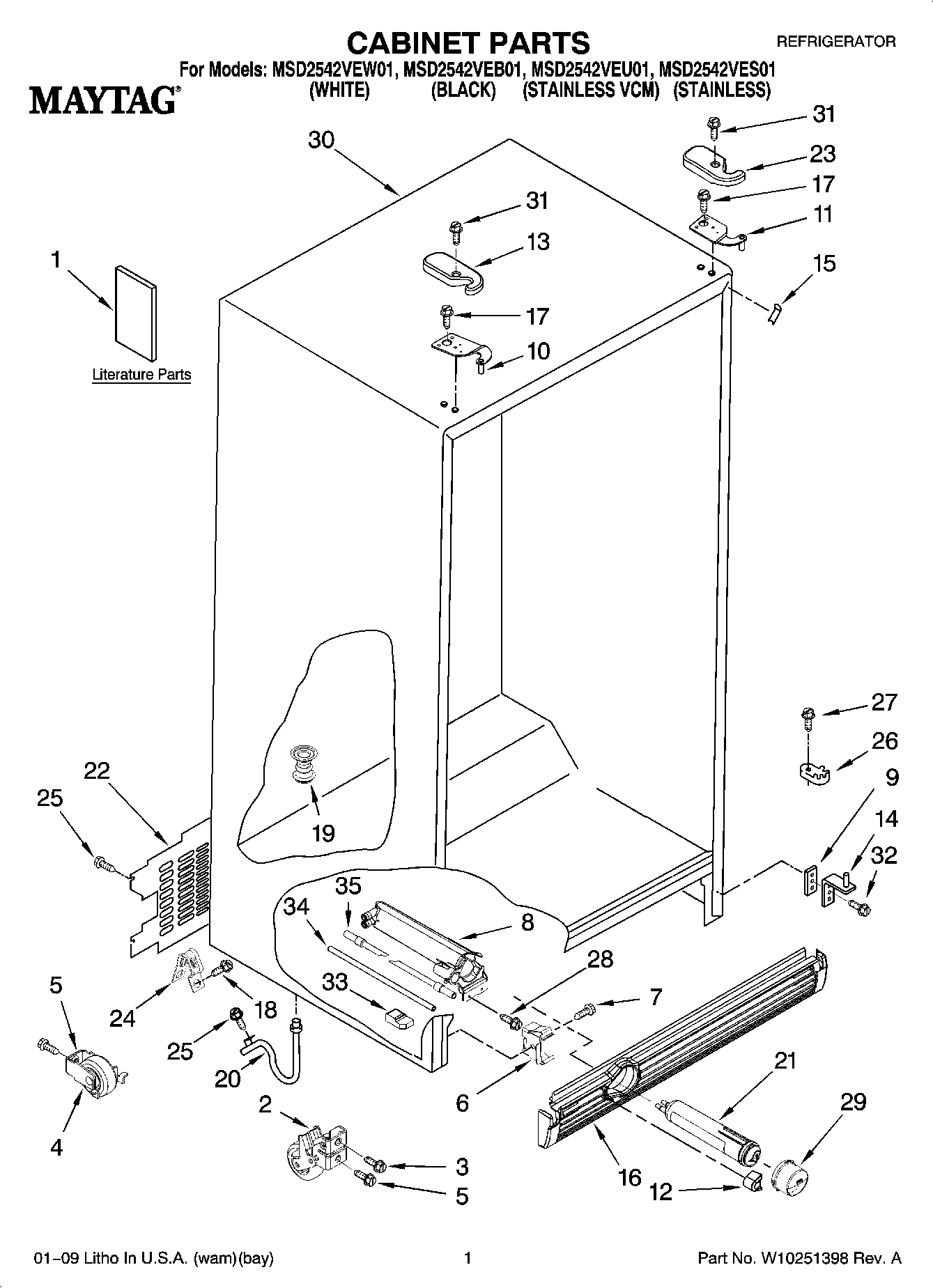

MSD2542VEU01 01 – CABINET PARTS
Written by
in
MSD2542VEU01 01 – CABINET PARTS
Products
Position
Product
1
MAY W10158909
1
MAY W10154390
1
MAY W10153841
1
MAY 628370
1
MAY W10153840
2
MAY 2174748
3
MAY 3400517
4
MAY 2196236
5
MAY 489427
6
MAY 2155013
7
MAY 489478
8
Housing, Water Filter
9
Shim (2)
10
HINGE TOP, FC
11
HINGE TOP RC
12
MAY 2260503W
12
Button, Filter (Black)
13
HINGE COVER FC (WHITE)
13
HINGE COVER FC (BLACK)
14
MAY 2217075
15
Corner Filler (2) (White)
15
MAY 2201017
16
MAY 2260500W
16
MAY 2260500B
17
MAY 489497
18
Screw (3)
19
MAY 2304888
20
MAY W10153550
21
MAY 4396841
22
MAY 2188735
23
HINGE COVER RC (BLACK)
23
HINGE COVER RC (WHITE)
24
MAY 549193
25
MAY 489084
26
MAY 2155311
27
MAY 489483
28
MAY 489500
29
MAY 2260502B
29
MAY 2260502W
31
MAY 8281227
32
Screw (4)
33
Block, Housing Support
34
Tube, Filter Outlet
35
MAY 2319867
←
