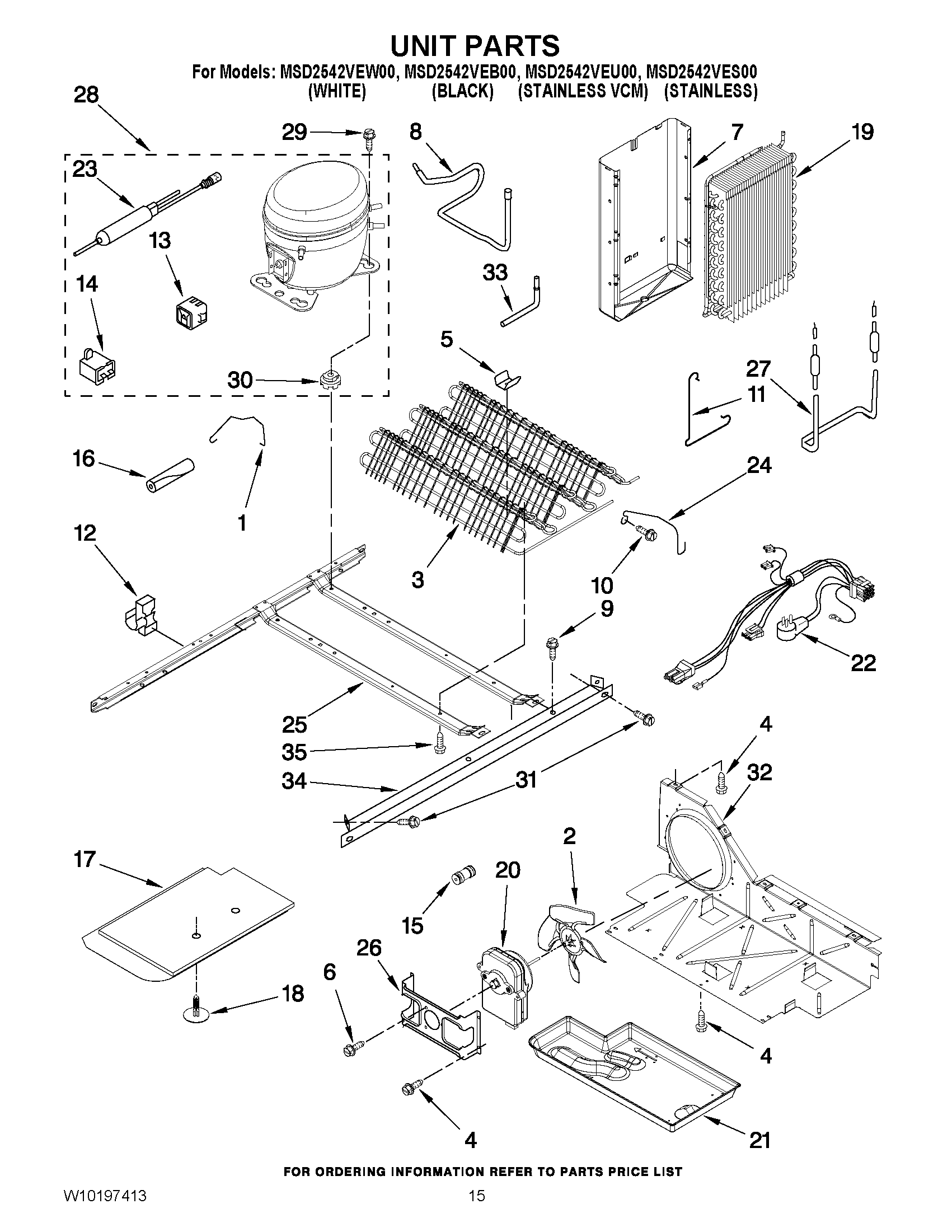

MSD2542VEW00 09 – UNIT PARTSadmin2025-04-26T13:09:59+00:00MSD2542VEW00 09 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | MAY 2263990 |
| 2 | Fan, Blade |
| 3 | Condenser Assembly (Also Order 1) |
| 4 | Screw (3) |
| 5 | MAY 2311725 |
| 6 | MAY 8533993 |
| 7 | Heat Shield |
| 8 | MAY 2205765 |
| 9 | MAY 489427 |
| 10 | MAY 489478 |
| 11 | Clip |
| 12 | Clip, Wire |
| 13 | Start-Device, Combination (Start Relay and Overload) (Service) |
| 13 | Start-Device, Combination (Start Relay and Overload) (Production) |
| 14 | Capacitator (Production) |
| 15 | CONNECTOR, WATER |
| 16 | Sleeve, Pressure Switch Hose |
| 17 | Unit Cover, Bottom |
| 18 | MAY 489396 |
| 19 | Evaporator |
| 20 | MOTOR, CONDENSOR |
| 21 | MAY 1105523 |
| 22 | MAY W10309395 |
| 23 | Drier |
| 23 | Drier |
| 24 | MAY 2260517 |
| 25 | Unit Mounting Frame |
| 26 | MAY 2181929 |
| 27 | MAY 2188175 |
| 28 | Compressor (Includes Items 11, 13, 20, & 21) (Also Order 876765 Tube Kit) |
| 29 | MAY 489373 |
| 30 | Grommet (Production) |
| 30 | MAY 4387558 |
| 31 | MAY 489340 |
| 32 | MAY W10332806 |
| 33 | MAY 2325479 |
| 34 | Unit Mounting Rail |
| 35 | MAY 8281232 |
