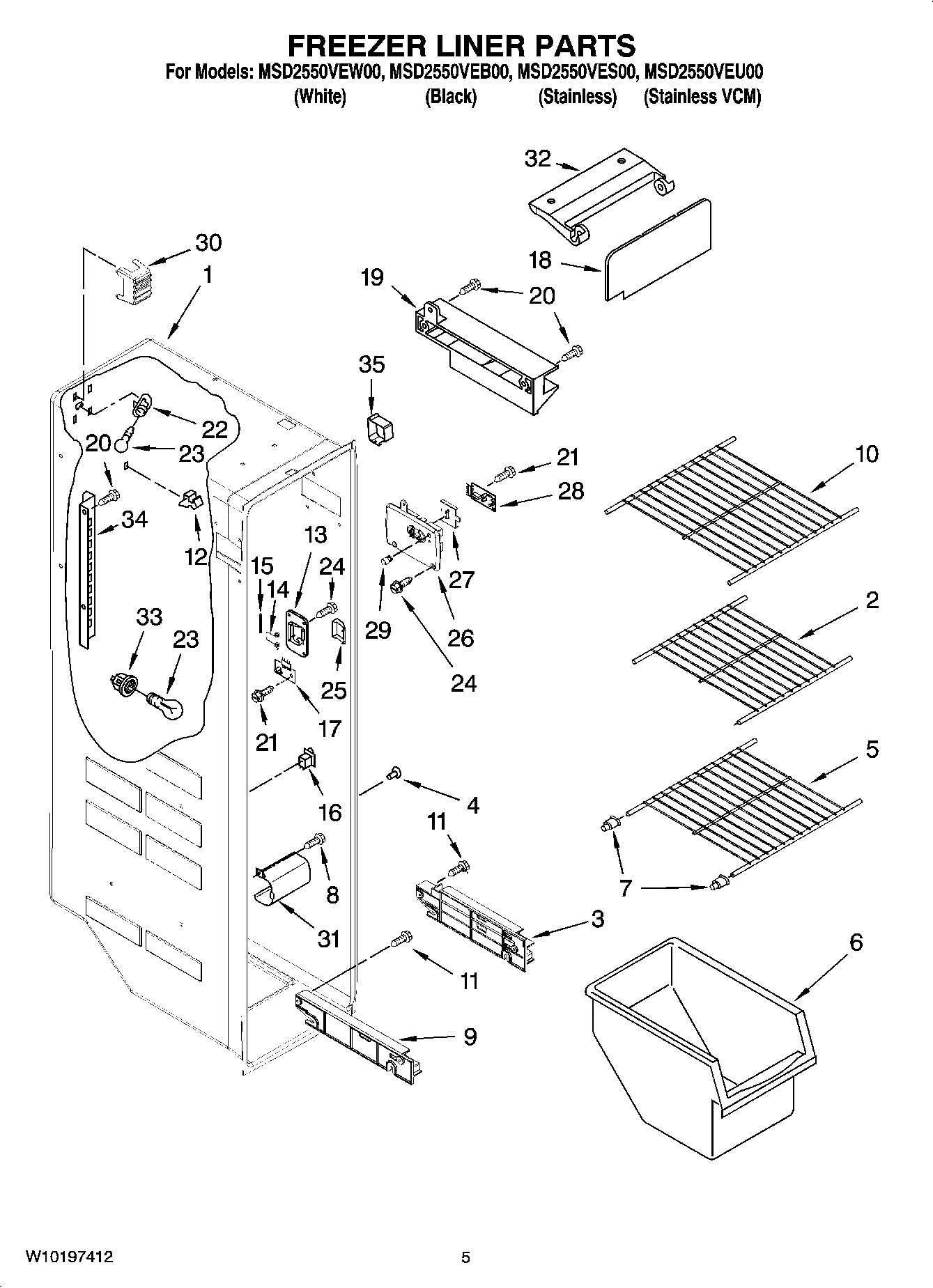

MSD2550VEB00 04 – FREEZER LINER PARTS

Products

Position	Product
2	Shelf
3	MAY 2301291
3	MAY 2301292
4	MAY 941839
5	MAY 2309597
6	Freezer Bin
7	MAY 2163762
8	MAY 3400893
9	MAY 2301289
9	MAY 2301290
10	Shelf, Wire
11	MAY W10004810
12	Clip, Air Duct (2)
13	MAY 2198587
14	SPRING, DOOR
15	PIN, DOOR
16	Switch, Rocker Arm
17	MAY 2220398
18	MAY 2255720
19	Slide, Ice Maker Mounting (Right Side)
20	MAY 489478
21	Screw (2)
22	Socket, Light
23	MAY 2255743
24	MAY 8281185
25	MAY 2198633
26	MAY W10173569
27	MAY 2255562
28	MAY 2255114
29	MAY 2198643
30	MAY 2198589
31	MAY 2212340
32	Bracket, Ice Maker Cover
33	SOCKET, LIGHT
34	MAY 2320024
34	MAY 2320025
35	MAY 2303234
