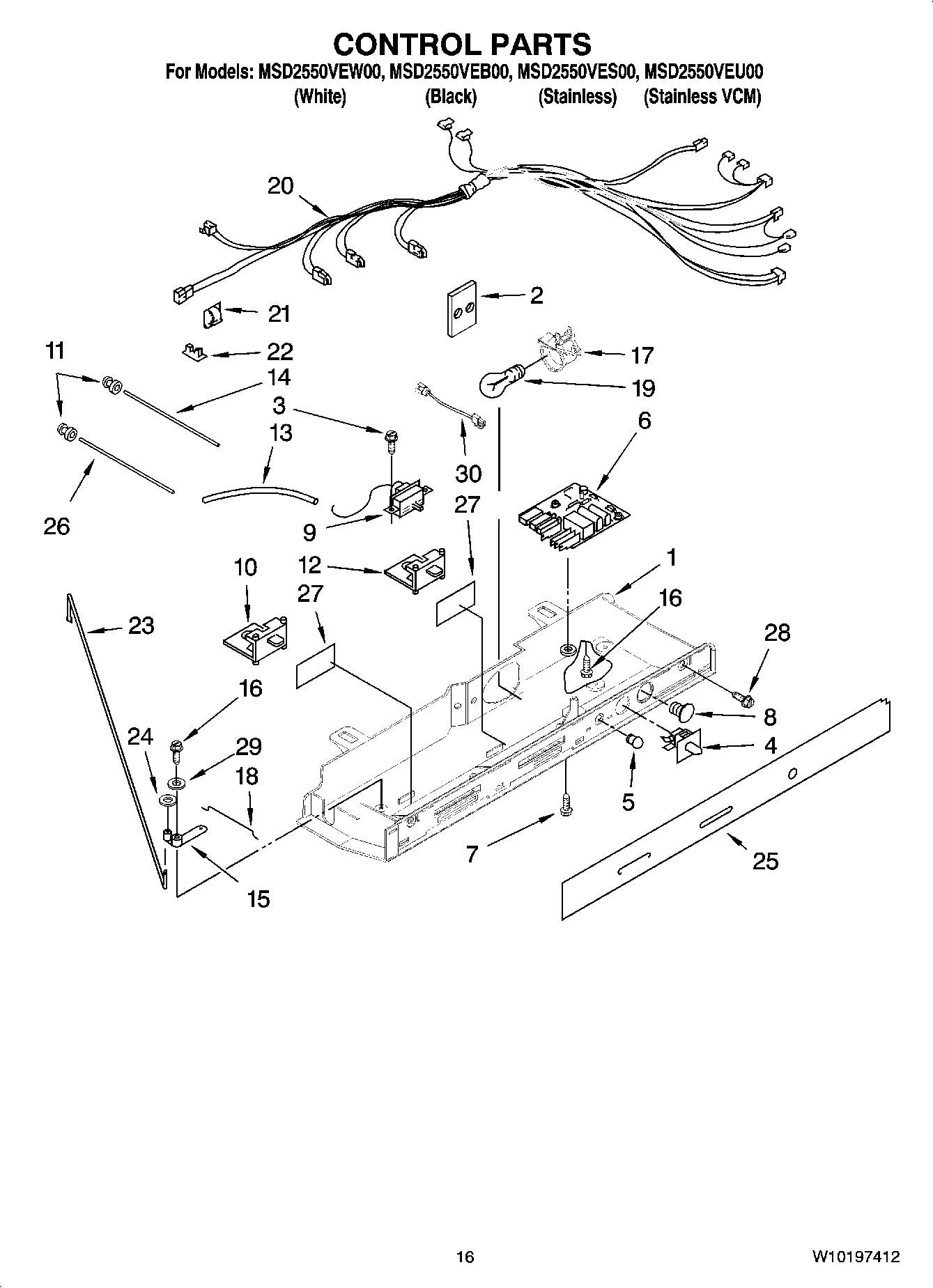

MSD2550VEB00 10 – CONTROL PARTS

Products

Position	Product
1	MAY 2311721
2	MAY 2172931
3	Screw (2)
4	MAY 2149705
5	LENS, LIGHT
6	Control Board Assembly
7	Screw
8	MAY 940014
9	Thermostat
10	MAY 2181741
11	Grommet, Light Bar (4)
12	MAY 2161466
13	TUBE-BARRIER, THERMOSTAT
14	MAY 2179920
15	Pivot Arm
16	MAY 627068
17	Socket, Light
18	CONNECTING ROD, SHORT
19	MAY 2255743
20	MAY 2311632
21	MAY 1115374
22	Clip-Wiring
23	Connecting Rod
24	Fastner, Push-On
25	MAY 2315154
26	LIGHT BAR FC
27	MAY 2175513
28	MAY 489084
29	Spring Washer
30	LED LIGHT ASSEMBLY
