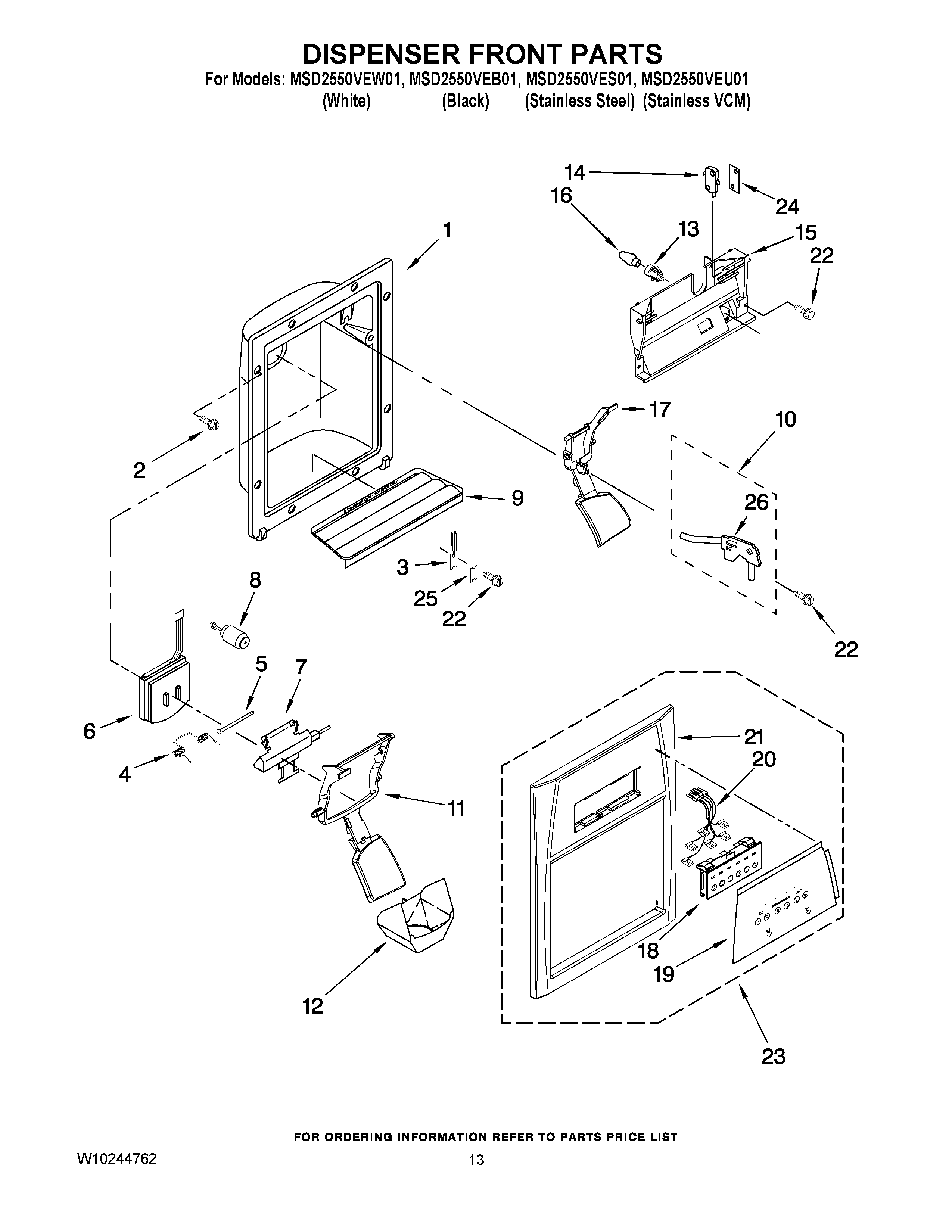

MSD2550VEB01 08 – DISPENSER FRONT PARTS
Written by
in
MSD2550VEB01 08 – DISPENSER FRONT PARTS
Products
Position
Product
2
Screw
3
MAY 2194719
4
MAY 2304772
5
MAY 2196195
6
MAY 2180353
7
MAY 2304355
8
MAY 2205686
9
Grille, Overflow (White)
9
Grille, Overflow (Black)
10
MAY 2304317
11
Lever, Ice Dispenser (White)
11
Lever, Ice Dispenser (Black)
12
MAY 2180224
13
MAY 2180200
14
Switch (4)
15
MAY 2183771
16
MAY 3406124
17
Lever, Water Dispenser (Black)
17
Lever, Water Dispenser (White)
18
Switch Assembly
20
MAY 2187406
22
MAY 489000
23
MAY W10175697
23
MAY W10175698
24
MAY 625834
25
MAY 2195051
26
MAY 2304673
←
