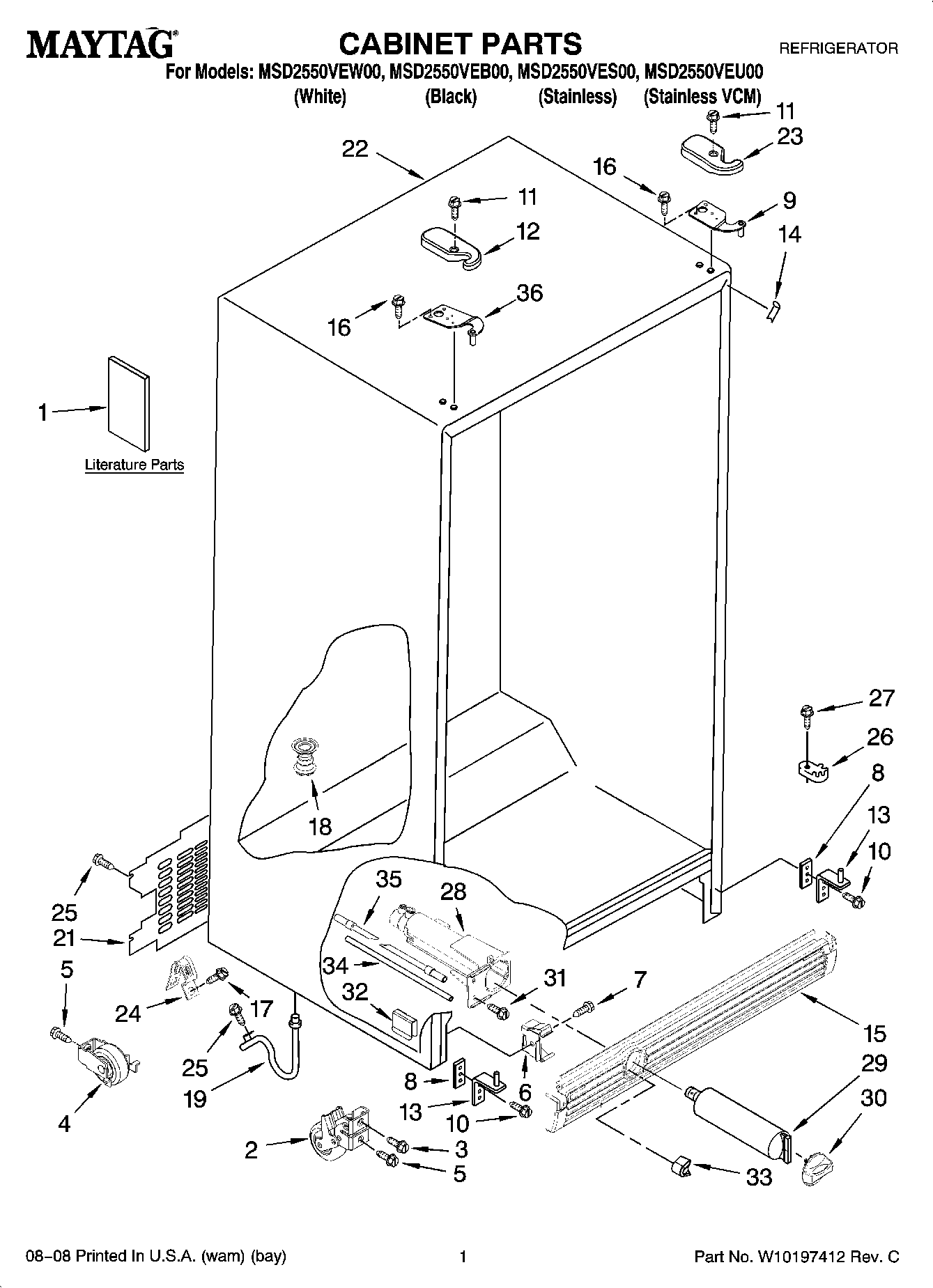

MSD2550VES00 01 – CABINET PARTS

MSD2550VES00 01 – CABINET PARTS

Written by

in

MSD2550VES00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10153840
1	MAY W10156278
1	MAY W10154390
1	MAY W10171539
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	Shim (2)
9	HINGE TOP RC
10	Screw (4)
11	MAY 8281227
12	HINGE COVER FC (WHITE)
12	HINGE COVER FC (BLACK)
13	MAY 2217075
14	Corner Filler (2) (White)
14	MAY 2201017
15	MAY 2260500W
15	MAY 2260500B
16	MAY 489497
17	Screw (3)
18	MAY 2304888
19	MAY 2304937
21	MAY 2188735
23	HINGE COVER RC (BLACK)
23	HINGE COVER RC (WHITE)
24	MAY 549193
25	MAY 489084
26	MAY 2155311
27	MAY 489483
28	MAY 2260507
29	MAY 4396841
30	MAY 2260502W
30	MAY 2260502B
31	MAY 489500
32	Block, Housing Support
33	MAY 2260503W
33	Button, Filter (Black)
34	MAY 2304708
35	MAY 2319867
36	HINGE TOP, FC
