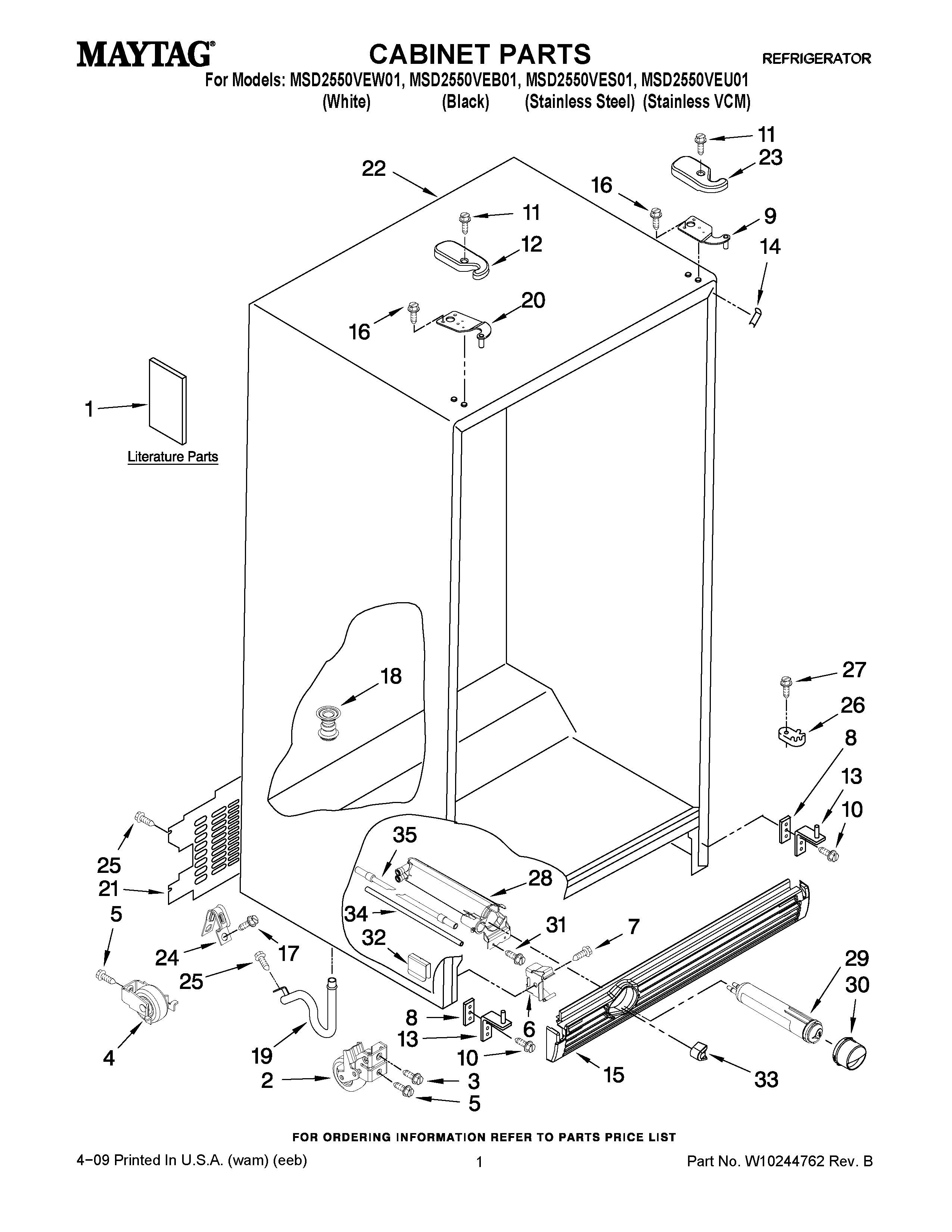

MSD2550VES01 01 – CABINET PARTS
Written by
in
MSD2550VES01 01 – CABINET PARTS
Products
Position
Product
1
MAY W10153840
1
MAY W10154390
1
MAY W10171539
1
MAY W10207926
2
MAY 2174748
3
MAY 3400517
4
MAY 2196236
5
MAY 489427
6
MAY 2155013
7
MAY 489478
8
Shim (2)
9
HINGE TOP RC
10
Screw (4)
11
MAY 8281227
12
HINGE COVER FC (BLACK)
12
HINGE COVER FC (WHITE)
14
MAY 2217075
14
MAY 2201017
15
MAY 2260500B
15
MAY 2260500W
16
MAY 489497
17
Screw (3)
18
MAY 2304888
19
MAY 2304937
20
HINGE TOP, FC
21
MAY 2188735
23
HINGE COVER RC (BLACK)
23
HINGE COVER RC (WHITE)
24
MAY 549193
25
MAY 489084
26
MAY 2155311
27
MAY 489483
28
Housing, Water Filter
29
MAY 4396841
30
MAY 2260502W
30
MAY 2260502B
31
MAY 489500
32
Block, Housing Support
33
Button, Filter (Black)
33
MAY 2260503W
34
Tube, Filter Outlet
35
MAY 2319867
←
