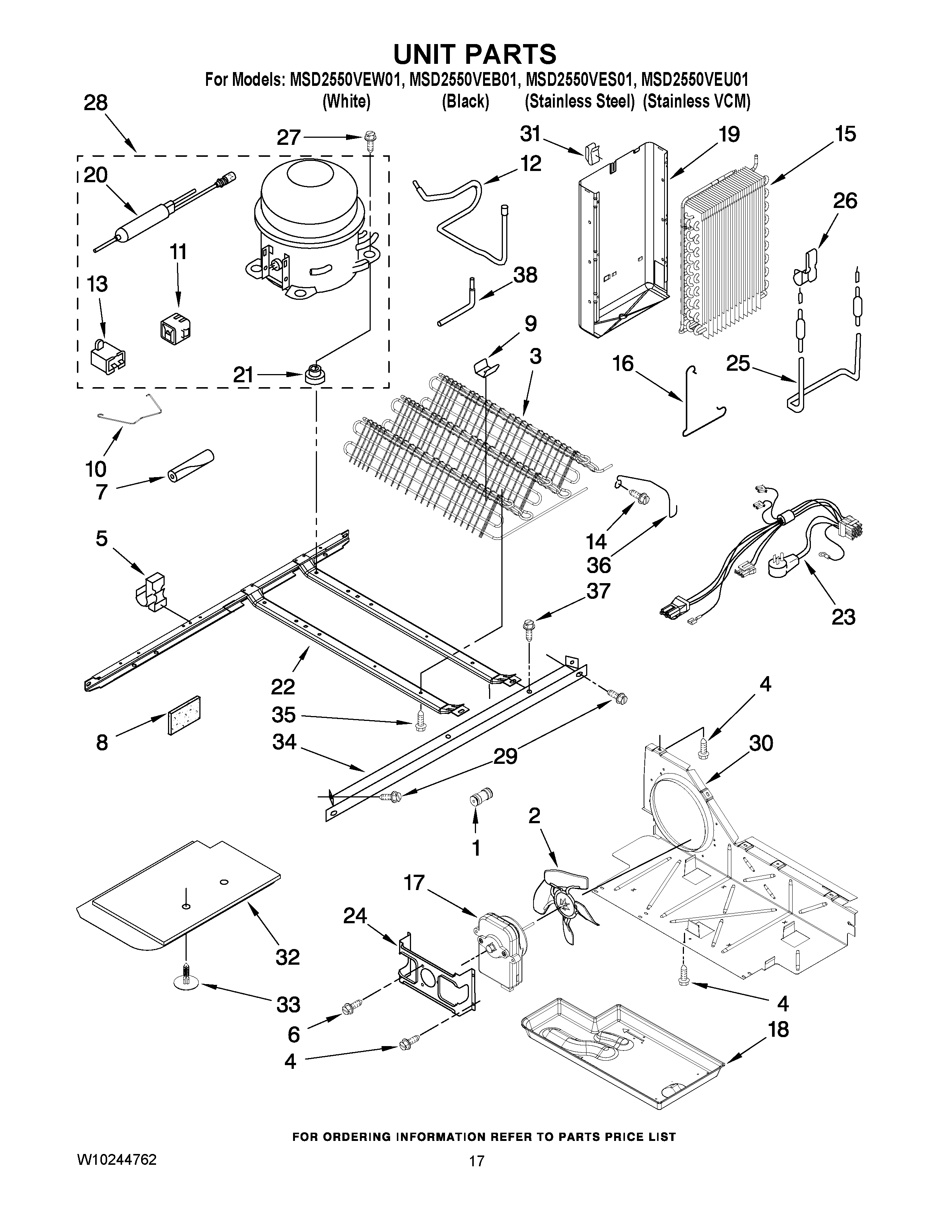

MSD2550VES01 11 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
1	Connector, Water
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	Clip, Wire
6	MAY 8533993
7	Sleeve, Pressure Switch Hose
8	MAY 2215468
9	MAY 2311725
10	MAY W10174384
11	Start-Device, Combination (Start Relay and Overload) (Production)
11	Start-Device, Combination (Start Relay and Overload)
12	MAY W10210786
13	Capacitator (Production)
14	MAY 489478
15	Evaporator
17	MOTOR, CONDENSOR
18	MAY 1105523
19	Heat Shield
20	Drier
20	Drier
21	Grommet (Production)
22	Unit Mounting Frame
23	Unit, Harness
24	MAY 2181929
25	MAY 2188175
26	Clip
27	MAY 489373
28	Compressor (Includes Items 9, 12, 20 & 28) (Also Order 876765 Tube Kit)
29	MAY 489340
30	MAY W10163483
31	MAY 2155547
32	MAY 2304891
33	MAY 489396
34	MAY W10196323
35	MAY 8281232
36	MAY 2260517
37	MAY 489427
38	Process Tube
