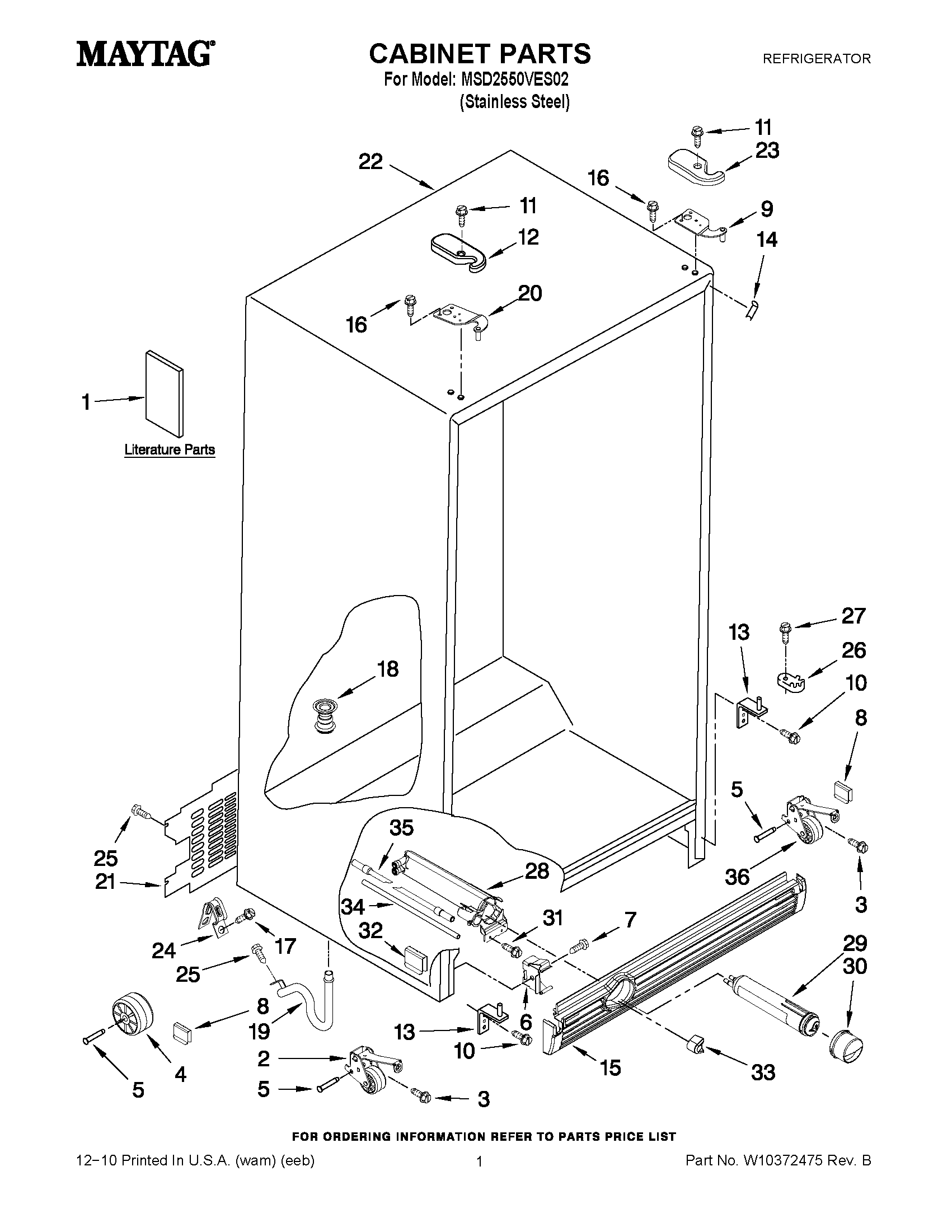

MSD2550VES02 01 – CABINET PARTS

Products

Position	Product
1	MAY W10213157
1	MAY W10171539
1	MAY W10154390
1	MAY W10207926
2	ROLLER, FRONT (LEFT)
3	MAY 489427
4	Roller
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 489478
8	CLIP, ROLLER
9	HINGE, TOP RC
10	Screw (4)
11	MAY 8281227
12	HINGE COVER FC (BLACK)
13	HINGE BOTTOM (2)
14	CORNER FILLER (BLACK)
15	GRILLE
16	MAY 489497
17	Screw (3)
18	MAY 2304888
19	MAY W10153550
20	HINGE TOP FC
21	MAY 2188735
22	LINER (NOT A SERVICEABLE PART)
23	HINGE COVER RC (BLACK)
24	MAY 549193
25	MAY 489084
26	MAY 2155311
27	MAY 489483
28	Housing, Water Filter
29	MAY 4396841
30	MAY 2260502B
31	MAY 489500
32	Block, Housing Support
33	Button, Filter (Black)
34	Tube, Filter Outlet
35	MAY W10281289
36	ROLLER, FRONT (RIGHT)
