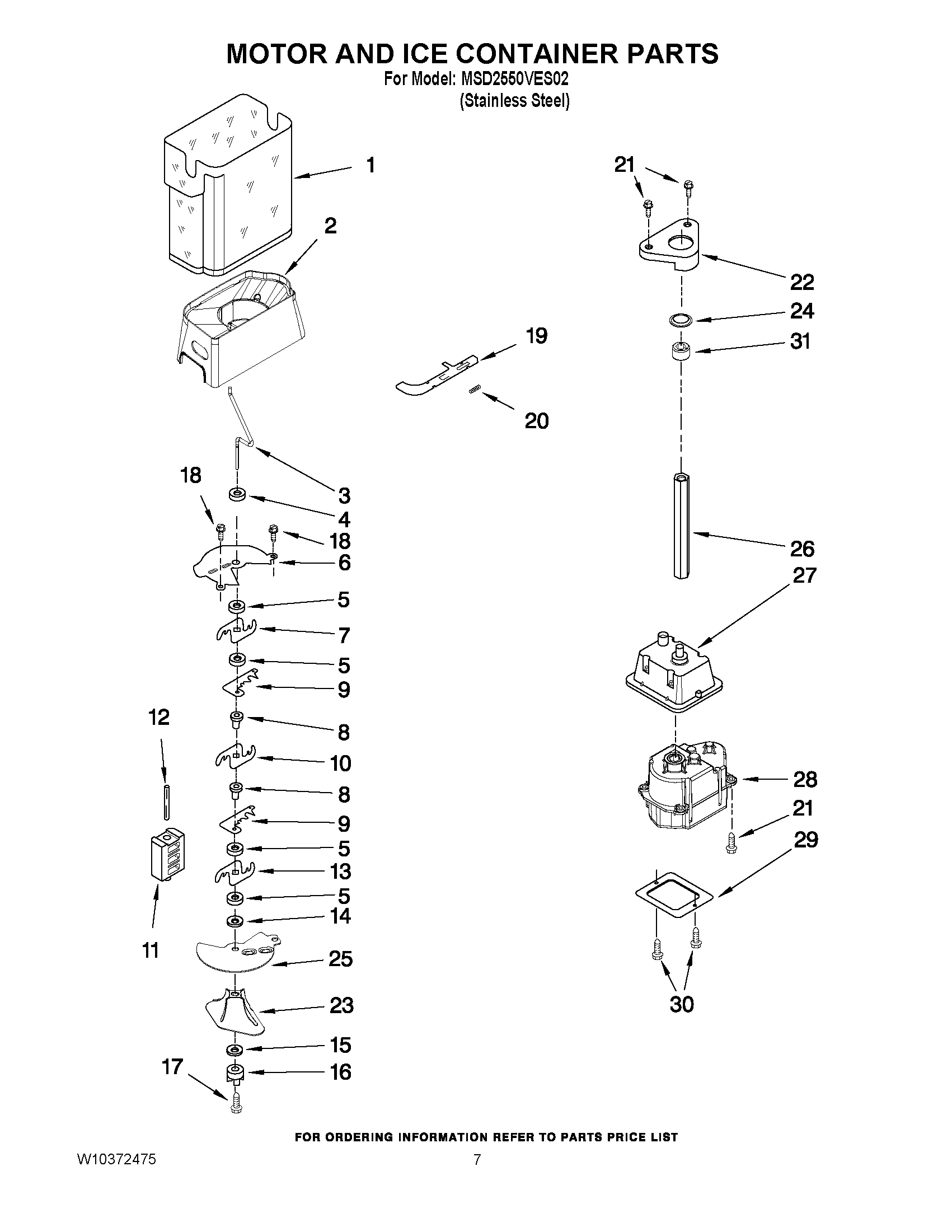

MSD2550VES02 05 – MOTOR AND ICE CONTAINER PARTS
Written by
in
MSD2550VES02 05 – MOTOR AND ICE CONTAINER PARTS
Products
Position
Product
1
Crusher Bin
2
Ice Bin
3
MAY 2317240
4
Washer, Auger
5
MAY 1119007
6
MAY 2317248
7
MAY W10278731
8
MAY 1119005
9
MAY 2257020
10
MAY W10278732
11
MAY 2317239
12
MAY 489229
13
MAY W10278733
14
MAY 489235
15
MAY 2198661
16
Coupling, Top
17
MAY 8281164
18
SCREW (STAINLESS)
19
MAY 2317277
20
MAY 2198608
21
Screw
22
MAY 2188919
23
MAY 2317243
24
MAY 2198628
25
Divider Chamber
26
MAY 2188916
27
MAY 2256154
28
MAY 2315544
29
MAY 2212305
30
MAY 489478
31
SLEEVE, COUPLING
100
MAY W10204467
←
