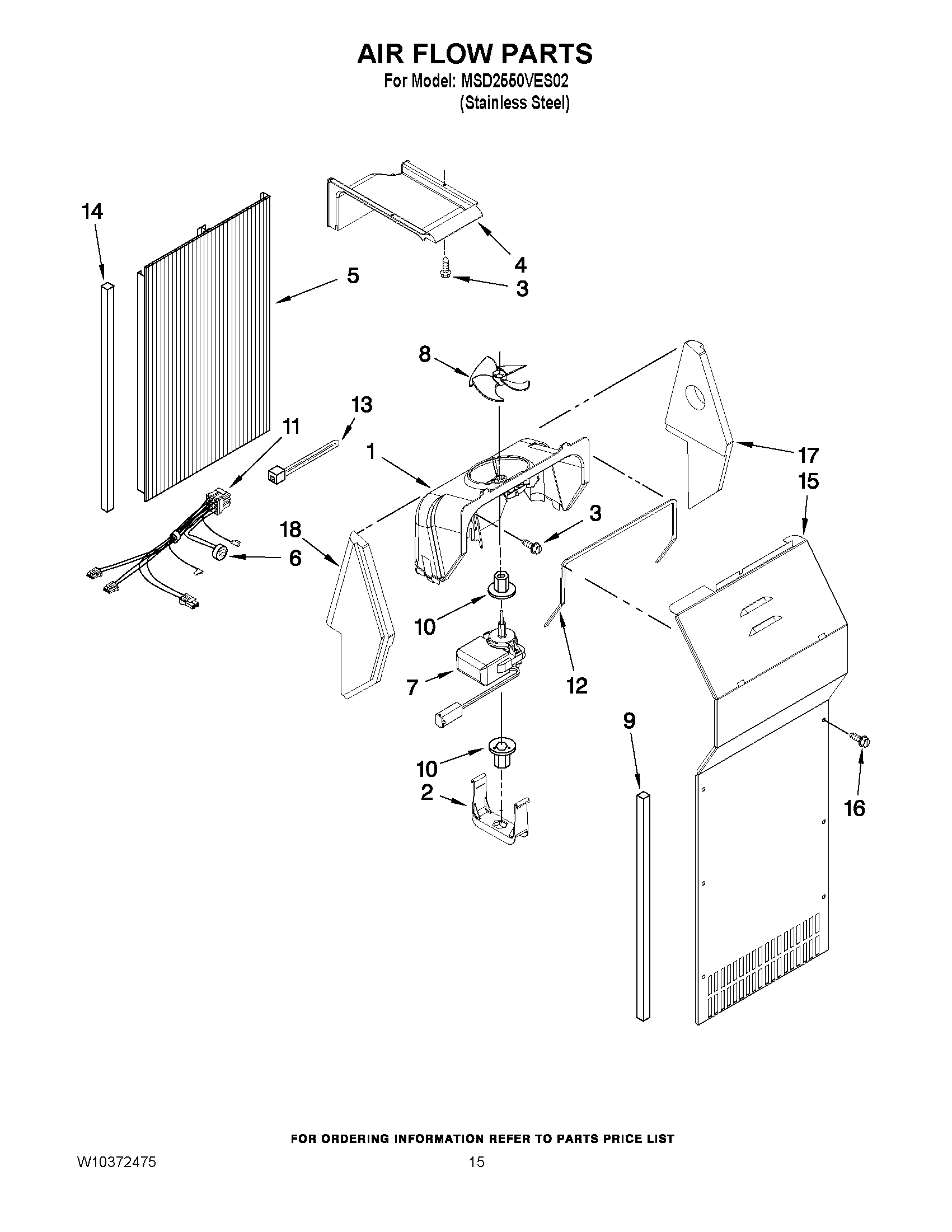

MSD2550VES02 09 – AIR FLOW PARTS

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 489478
4	MAY W10272514
5	MAY 2312010
6	MAY W10225581
7	MAY W10131845
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
12	Gasket, Fan Scroll
13	MAY 2263990
14	MAY 2203876
15	COVER, EVAPORATOR (INCLUDES No.9)
16	MAY 8281159
17	SUPPORT, FAN SCROLL (RIGHT HAND)
18	SUPPORT, FAN SCROLL (LEFT HAND)
