MSD2550VES02 10 – CONTROL PARTS – Aparts

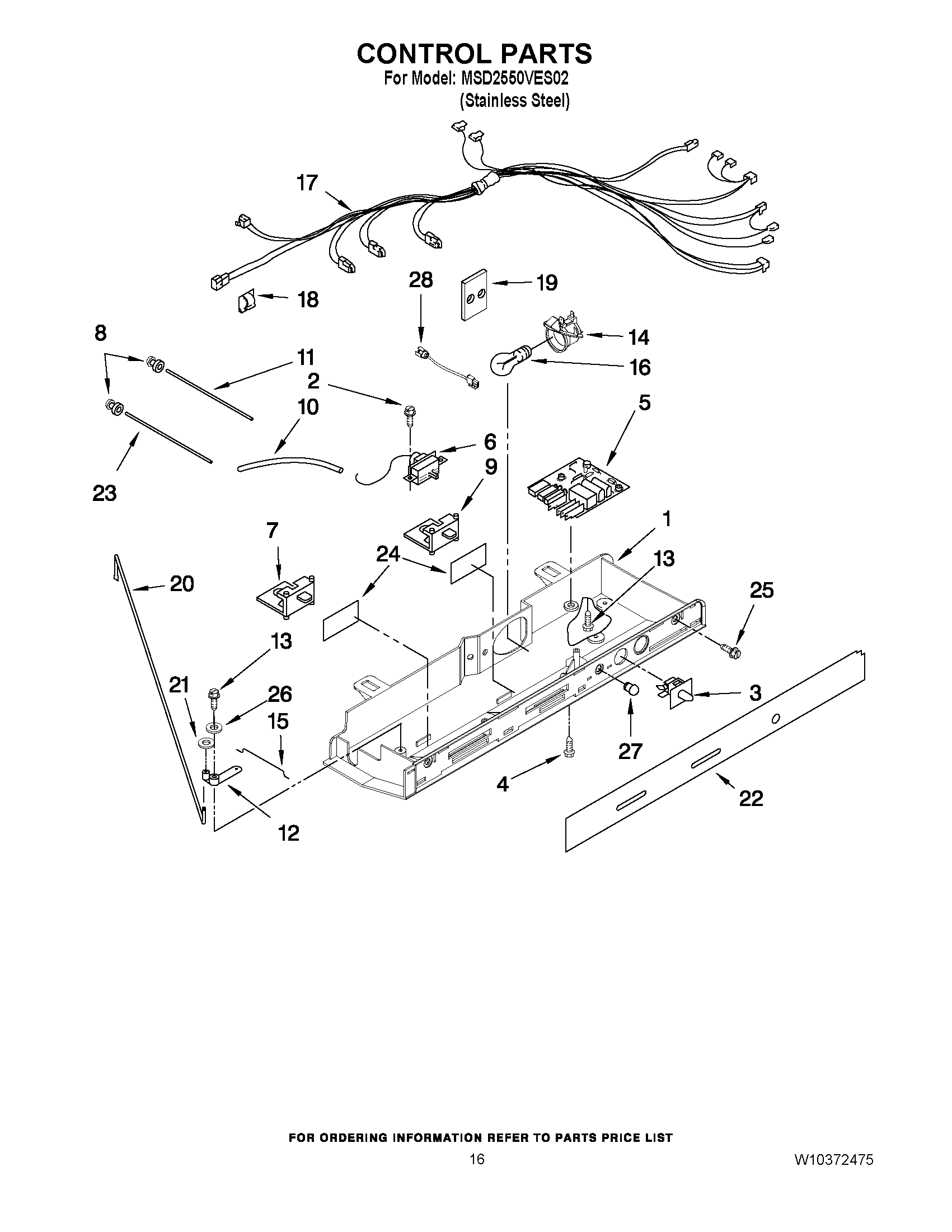

MSD2550VES02 10 – CONTROL PARTS

Products

Position	Product
1	MAY 2311721
2	Screw (2)
3	MAY 2149705
4	Screw
5	CONTROL BOARD ASSEMBLY
6	Thermostat
7	MAY 2181741
8	Grommet, Light Bar (4)
9	MAY 2161466
10	TUBE-BARRIER, THERMOSTAT
11	MAY 2179920
12	Pivot Arm
13	MAY 627068
14	Socket, Light
15	CONNECTING ROD, SHORT
16	MAY 527949
17	MAY 2311632
18	MAY 1115374
19	MAY 2172931
20	Connecting Rod
21	Fastner, Push-On
22	MAY W10242640
23	LIGHT BAR FC
24	MAY 2175513
25	MAY 489084
26	Spring Washer
27	LENS, LIGHT
28	LED LIGHT ASSEMBLY
