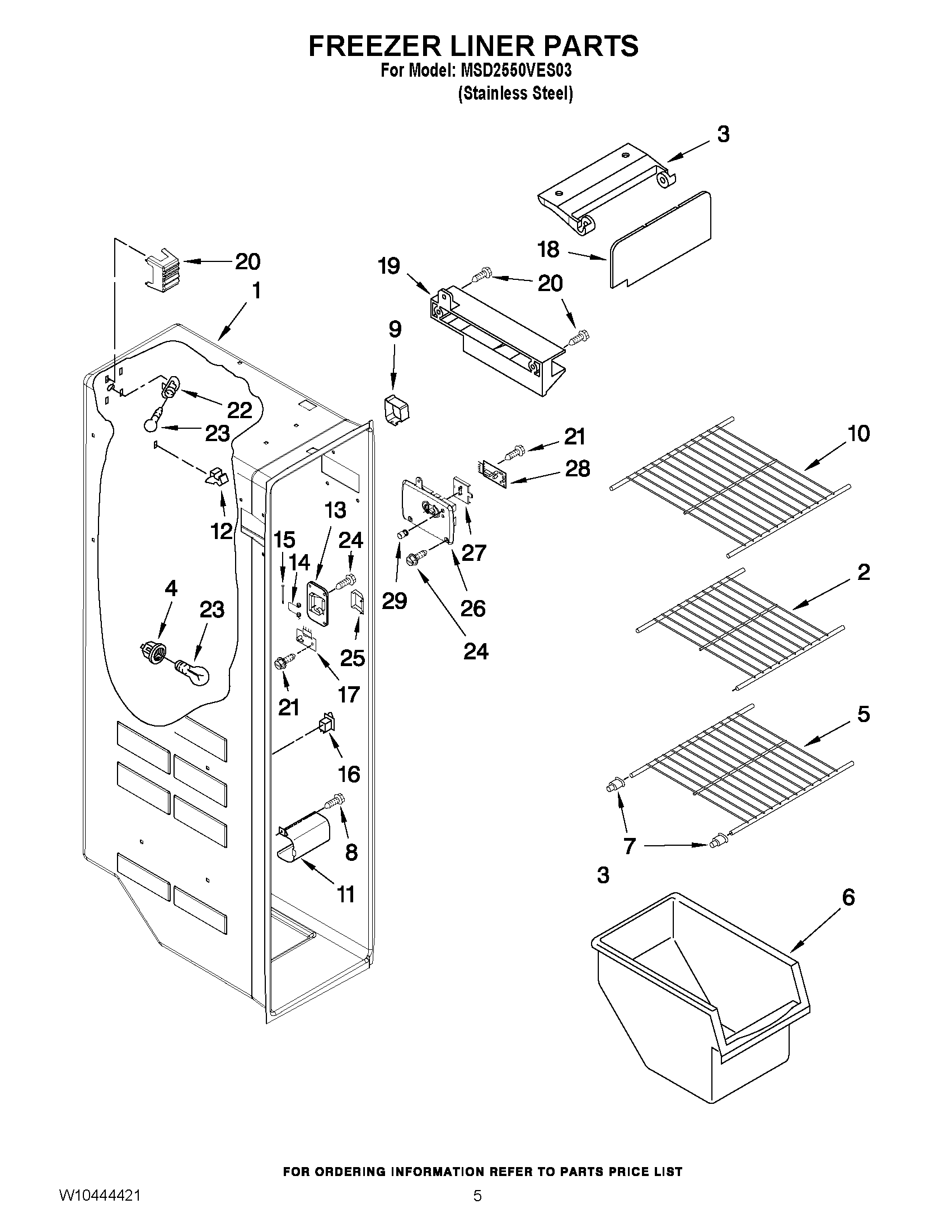

MSD2550VES03 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10318961
3	Bracket, Ice Maker Cover
4	SOCKET, LIGHT
5	MAY W10318948
6	Freezer Bin
7	Cup, Shelf Mount
8	MAY 3400893
9	MAY 2303234
10	MAY W10318947
11	MAY 2212340
12	MAY 2315163
13	MAY 2198587
14	SPRING, DOOR
15	PIN, DOOR
16	Switch, Rocker Arm
17	MAY W10193840
18	MAY 2255720
19	Slide, Ice Maker Mounting (Right Side)
20	MAY 2198589
21	Screw (2)
22	Socket, Light
23	MAY 527949
24	MAY 8281185
25	MAY 2198633
26	MAY W10173569
27	MAY 2315398
28	MAY W10290817
29	MAY 2198643
