MSD2550VES03 07 – DISPENSER FRONT PARTS – Aparts

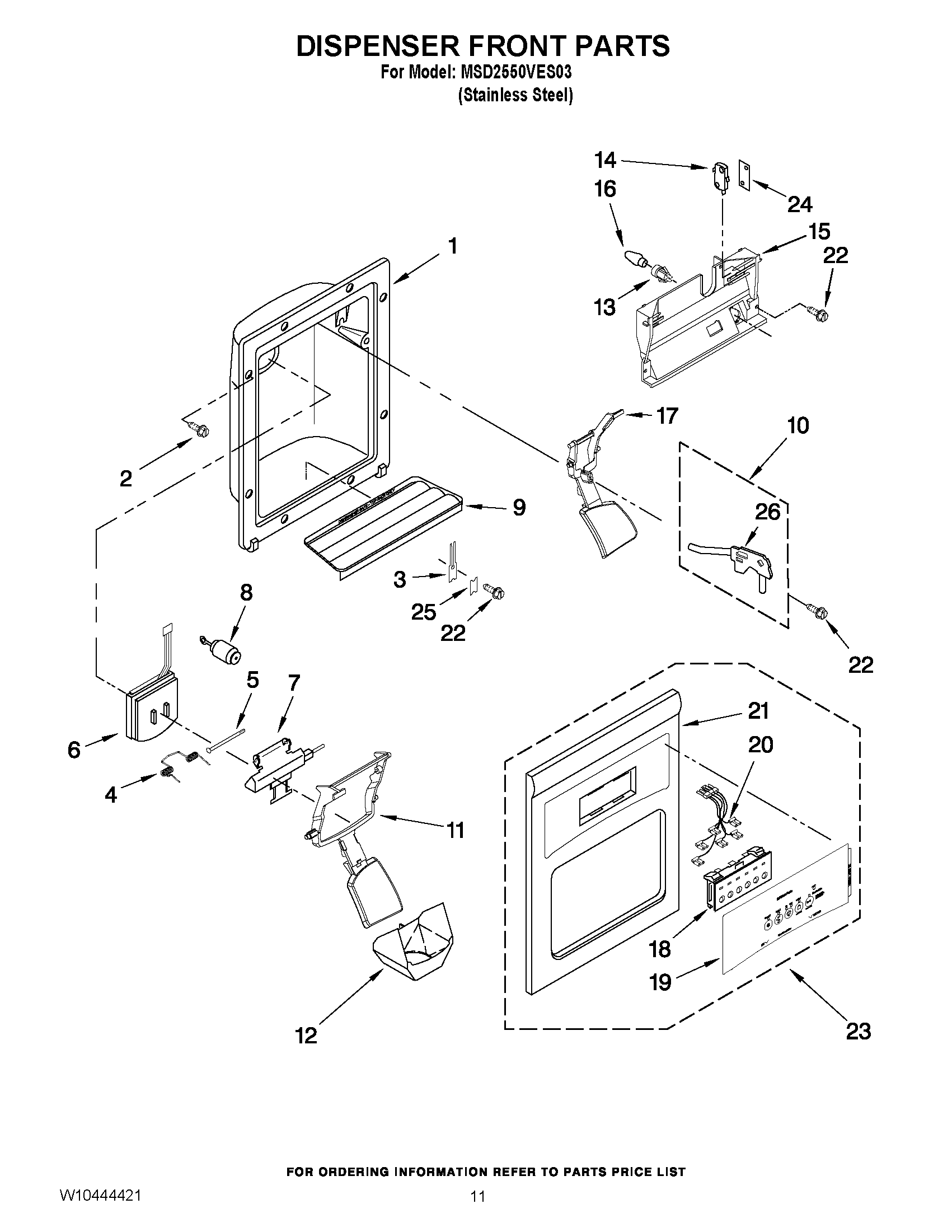

MSD2550VES03 07 – DISPENSER FRONT PARTS

Products

Position	Product
2	Screw
3	MAY 2194719
4	MAY 2304772
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	Grille, Overflow (Black)
10	MAY 2304317
11	Lever, Ice Dispenser (Black)
12	MAY 2180224
13	MAY 2180200
14	Switch (4)
15	MAY W10282667
16	MAY 3406124
17	Lever, Water Dispenser (Black)
18	Switch Assembly
20	MAY 2187406
21	LINER (NOT A SERVICEABLE PART)
22	MAY 489000
23	MAY W10175698
24	MAY 625834
25	MAY 2195051
26	MAY 2304673
