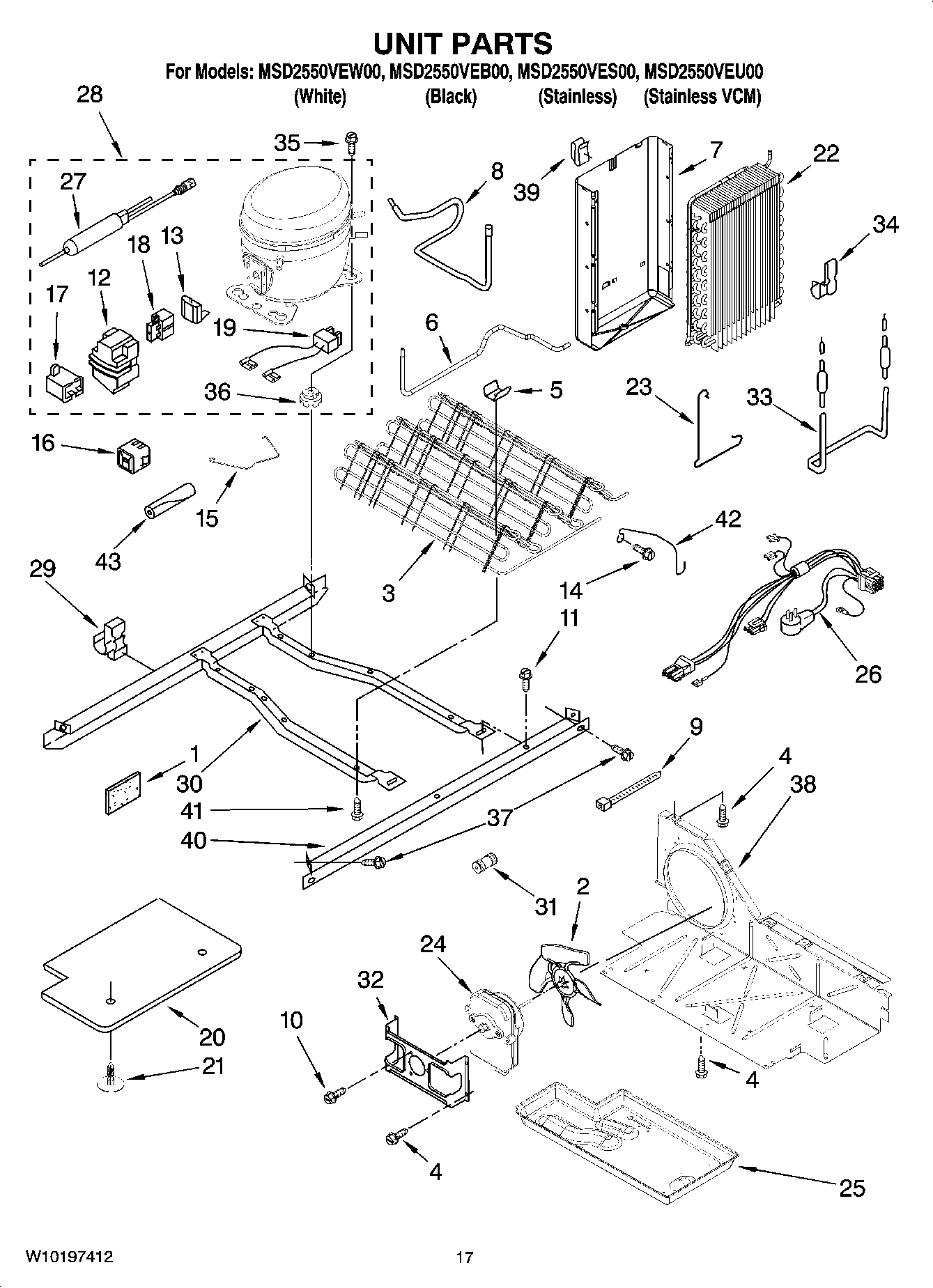

MSD2550VEU00 11 – UNIT PARTSadmin2025-04-26T11:33:51+00:00MSD2550VEU00 11 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (1/2``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (3/4``) |
| 1 | SEALER, INSULATION |
| 2 | Fan, Blade |
| 3 | Condenser Assembly (Also Order 7) |
| 4 | Screw (3) |
| 5 | MAY 2311725 |
| 6 | MAY 2325479 |
| 7 | Heat Shield (Includes 26) |
| 8 | MAY 2205765 |
| 9 | Wire Tie |
| 10 | MAY 8533993 |
| 11 | MAY 489427 |
| 12 | COVER ((SERVICE ONLY)) |
| 13 | Overload (Service Only) |
| 14 | MAY 489478 |
| 15 | MAY 2255199 |
| 16 | Start Device, Combination (Start Relay and overload) for (Service) |
| 17 | Capacitator (Production) |
| 17 | Capacitor (Service) |
| 18 | Start Relay (Service Only) |
| 19 | Wire Assembly (Service Only) |
| 20 | MAY 2304891 |
| 21 | MAY 489396 |
| 22 | Evaporator |
| 24 | MOTOR, CONDENSOR |
| 25 | MAY 1105523 |
| 26 | Unit, Harness |
| 27 | Drier |
| 27 | MAY 2319825 |
| 28 | Compressor (Includes Items 11, 13, 20, & 21) (Also Order 876765 Tube Kit) |
| 29 | Clip, Wire |
| 30 | MAY 2304904 |
| 31 | Connector, Water |
| 32 | MAY 2181929 |
| 33 | MAY 2188175 |
| 34 | Clip |
| 35 | MAY 489373 |
| 36 | MAY 4387558 |
| 36 | Grommet (Production) |
| 37 | MAY 489340 |
| 38 | MAY 2196202 |
| 39 | MAY 2155547 |
| 40 | MAY 2305374 |
| 41 | MAY 8281232 |
| 42 | MAY 2260517 |
| 43 | Sleeve, Pressure Switch Hose |
