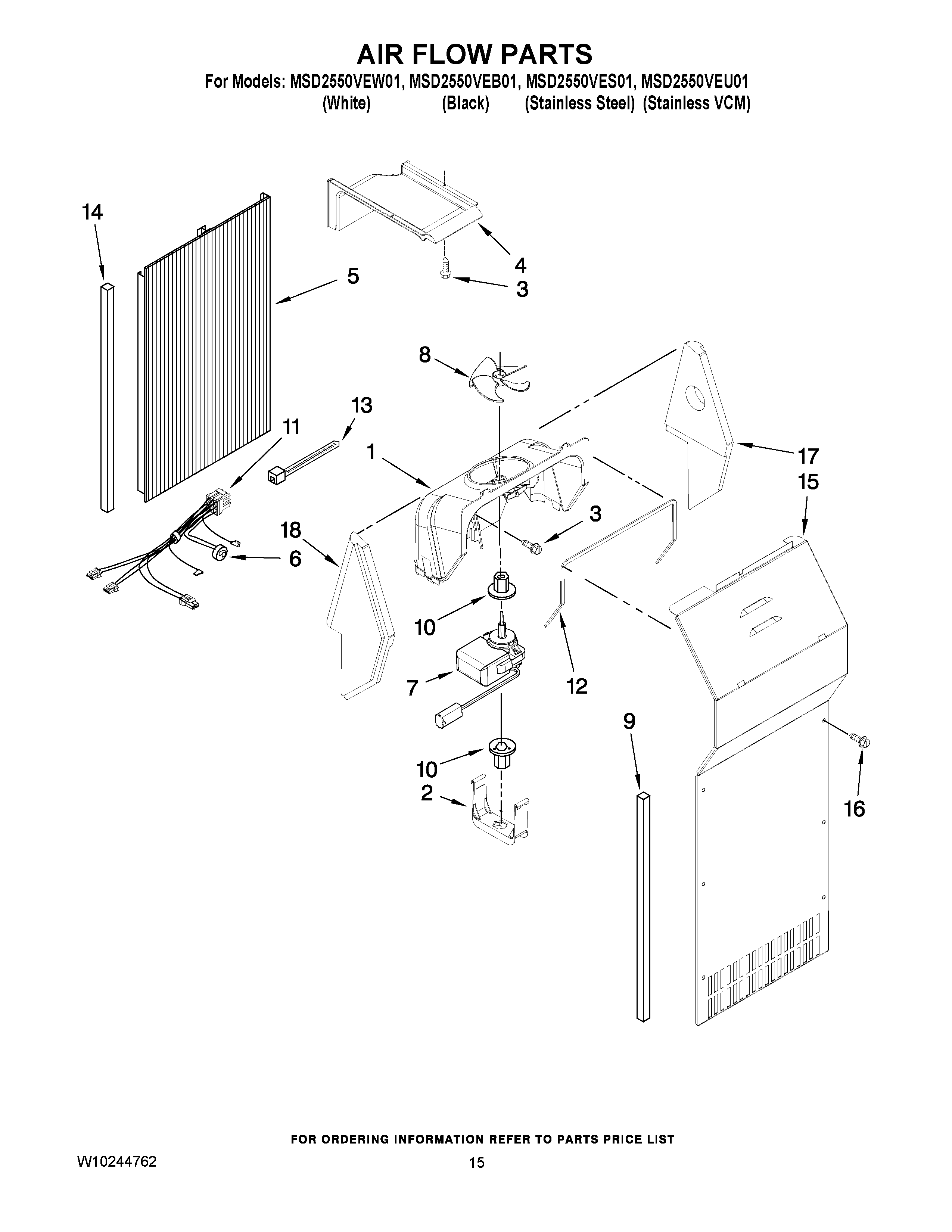

MSD2550VEU01 09 – AIR FLOW PARTS

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 489478
4	MAY 2313359
5	MAY 2312010
6	MAY 2319914
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	Harness, Fan Tube Evaporator (Includes 6)
12	Gasket, Fan Scroll
13	Wire Tie
14	MAY 2203876
15	Cover, Evaporator (Includes 9)
16	MAY 8281159
17	SUPPORT, FAN SCROLL (RIGHT HAND)
18	SUPPORT, FAN SCROLL (LEFT HAND)
