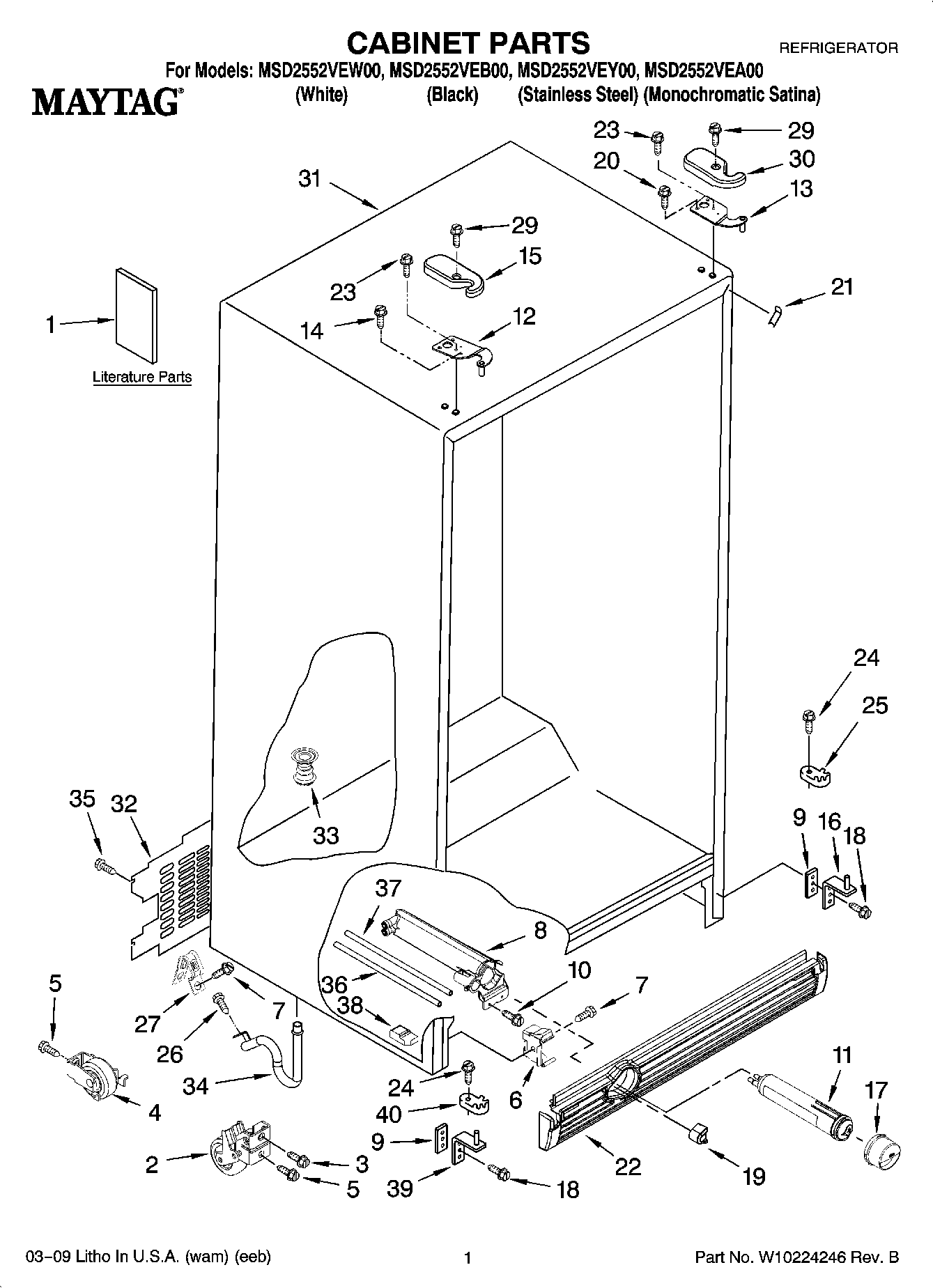

MSD2552VEA00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10172624
1	MAY W10180407
1	MAY W10159882
1	MAY 628370
1	MAY W10180856
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	Housing, Water Filter
9	Shim (2)
10	MAY 489500
11	MAY 8212650
12	HINGE TOP, FC
13	HINGE TOP RC
15	Hinge Cover (RC) (White)
15	Hinge Cover (RC) (Black)
15	COVER, HINGE (FREEZER) (GREY)
17	MAY 2260502B
17	MAY 2260502W
17	CAP, WATER FILTER (GREY)
18	Screw (4)
19	Button, Filter (Black)
19	MAY 2260503W
19	BUTTON, WATER FILTER (GREY)
20	MAY 3400858
21	Filler, Wrapper (Apollo Grey)
21	MAY 2201017
21	Corner Filler (2) (White)
22	MAY 2323580W
22	MAY 2323580MG
22	MAY 2323580B
23	MAY 489497
24	MAY 489483
25	MAY 2155311
26	MAY 489084
27	MAY 549193
29	MAY 8281227
30	COVER, HINGE (REFRIGERATOR) (GREY)
30	Hinge Cover (FC) (Black)
30	Hinge Cover (FC) (White)
32	MAY 2188735
33	MAY 2304888
34	MAY 2304937
35	Screw (3)
36	Tube, Filter Outlet
37	MAY 2319867
38	Block, Housing Support
39	Hinge Bottom (FC)
40	CLOSER, FREEZER DOOR
