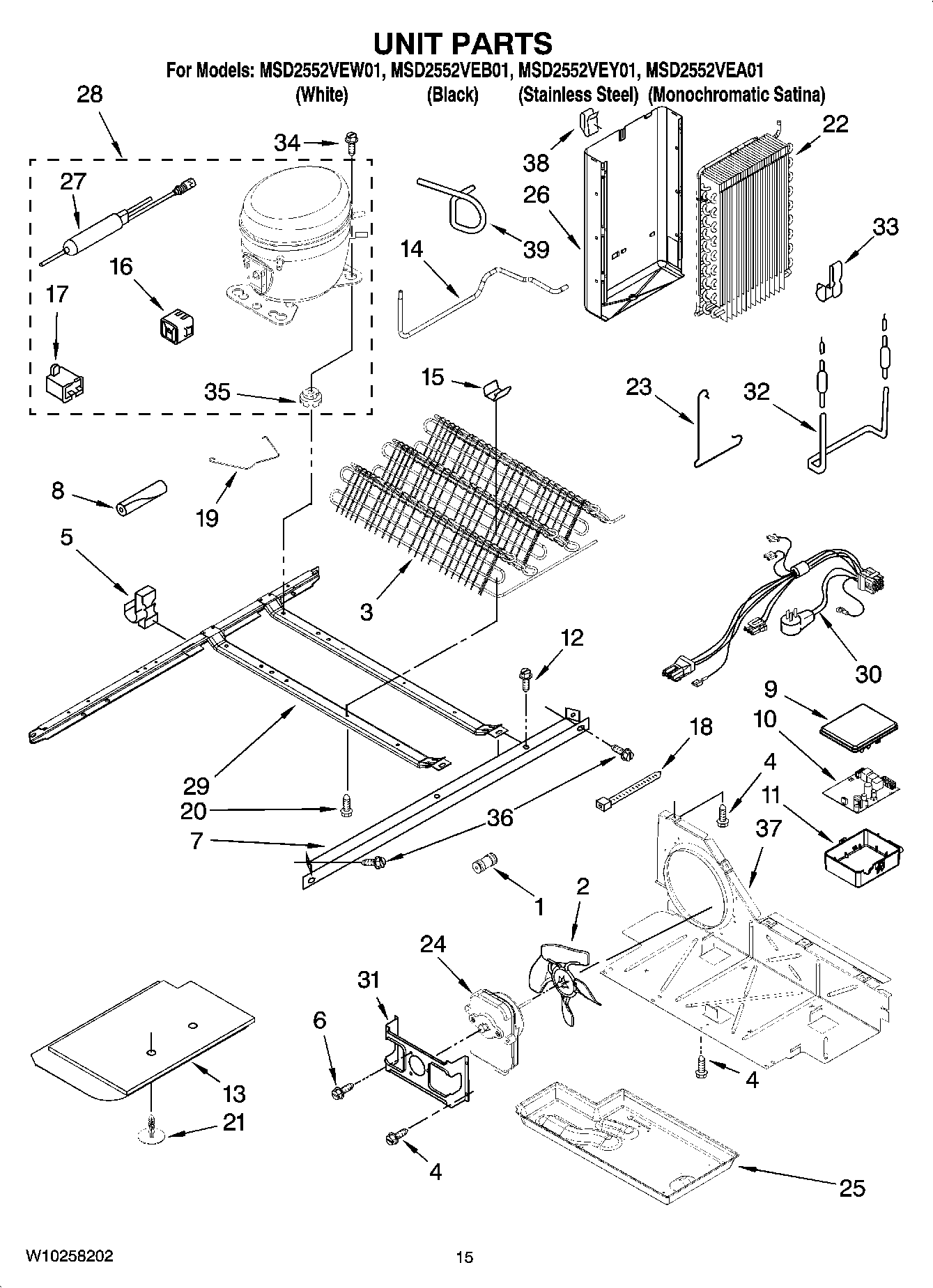

MSD2552VEA01 09 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	Connector, Water
2	Fan, Blade
3	MAY W10211163
4	Screw (3)
5	MAY 2326941
6	MAY 8533993
7	MAY W10196323
8	Sleeve, Pressure Switch Hose
9	Box Cover
10	MAY 2322547
11	MAY 2326982
12	MAY 489427
13	Unit Cover, Bottom
14	MAY W10210786
15	MAY 2311725
16	Start-Device, Combination (Start Relay and Overload) (Production)
16	Start-Device, Combination (Start Relay and Overload)
17	Capacitator (Production)
18	MAY 2263990
19	MAY W10174384
20	MAY 8281232
21	MAY 489396
22	Evaporator
23	Clip
24	MOTOR, CONDENSOR
25	MAY 1105523
26	Heat Shield
27	Drier
27	Drier
28	Compressor (Includes Items 9, 12, 20 & 28) (Also Order 876765 Tube Kit)
29	Unit Mounting Frame
30	Harness, Unit
31	MAY 2181929
32	MAY 2188175
33	MAY 2304287
34	MAY 489373
35	Grommet (Production)
36	MAY 489340
37	MAY W10196306
38	MAY 2155547
39	Process Tube
