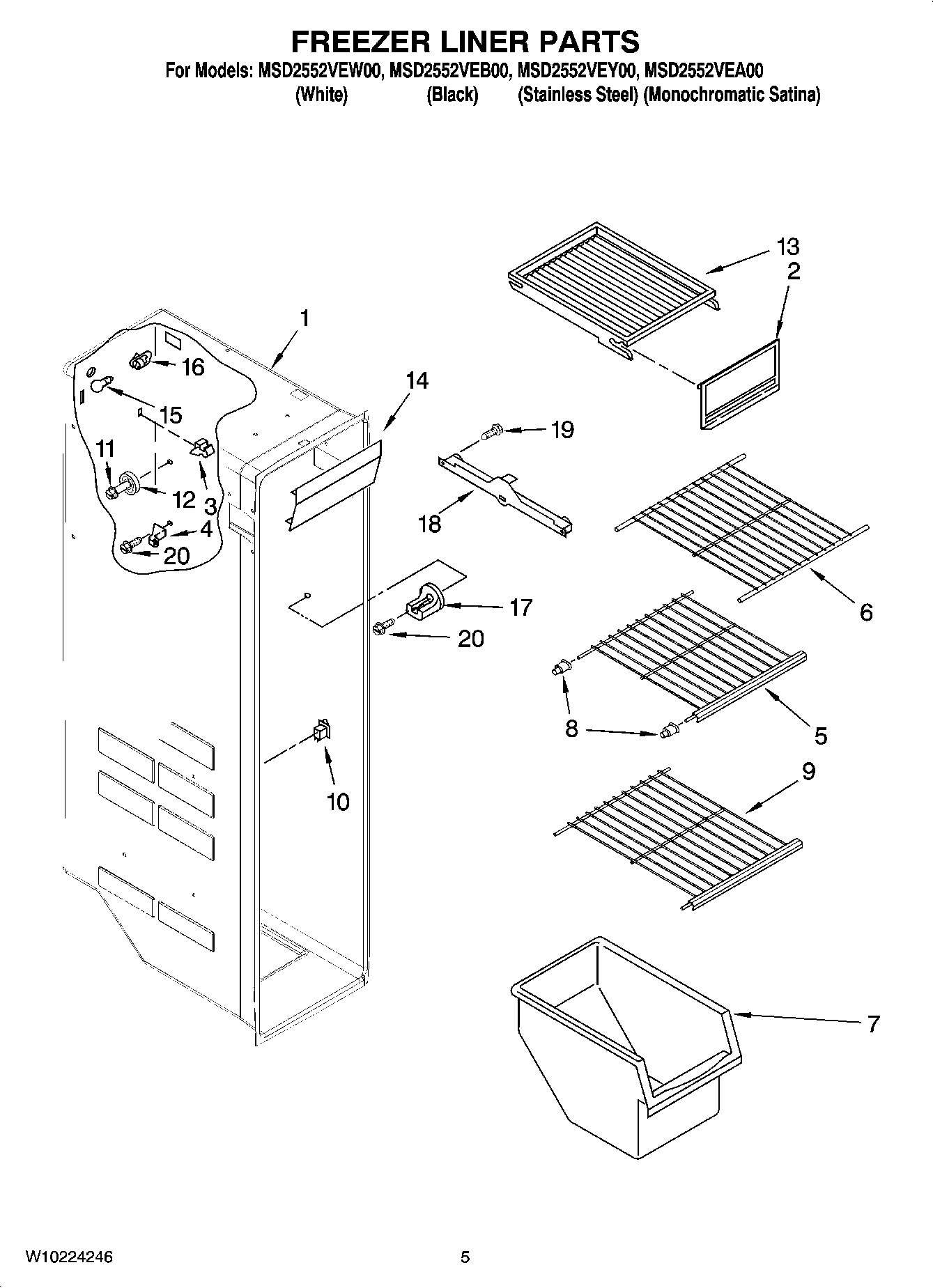

MSD2552VEW00 04 – FREEZER LINER PARTS

MSD2552VEW00 04 – FREEZER LINER PARTS

Written by

in

MSD2552VEW00 04 – FREEZER LINER PARTS

Products

Position	Product
2	DOOR, ICE COMP
3	Clip, Air Duct (2)
4	Support, Stud (4)
5	MAY 2309597
6	Shelf, Wire
7	Freezer Bin
8	Cup, Shelf Mount
9	SHELF WIRE
10	Switch, Rocker Arm
11	MAY 8281158
12	MAY 2196483
13	MAY 2171714
14	MAY 2171705
15	BULB, LIGHT
16	Socket, Light
17	MAY 2196207
18	Slide, Container (Left Side)
18	Slide, Container (Right Side)
19	MAY 489100
20	MAY 3400893
