MSD2552VEY00 11 – CONTROL PARTS – Aparts

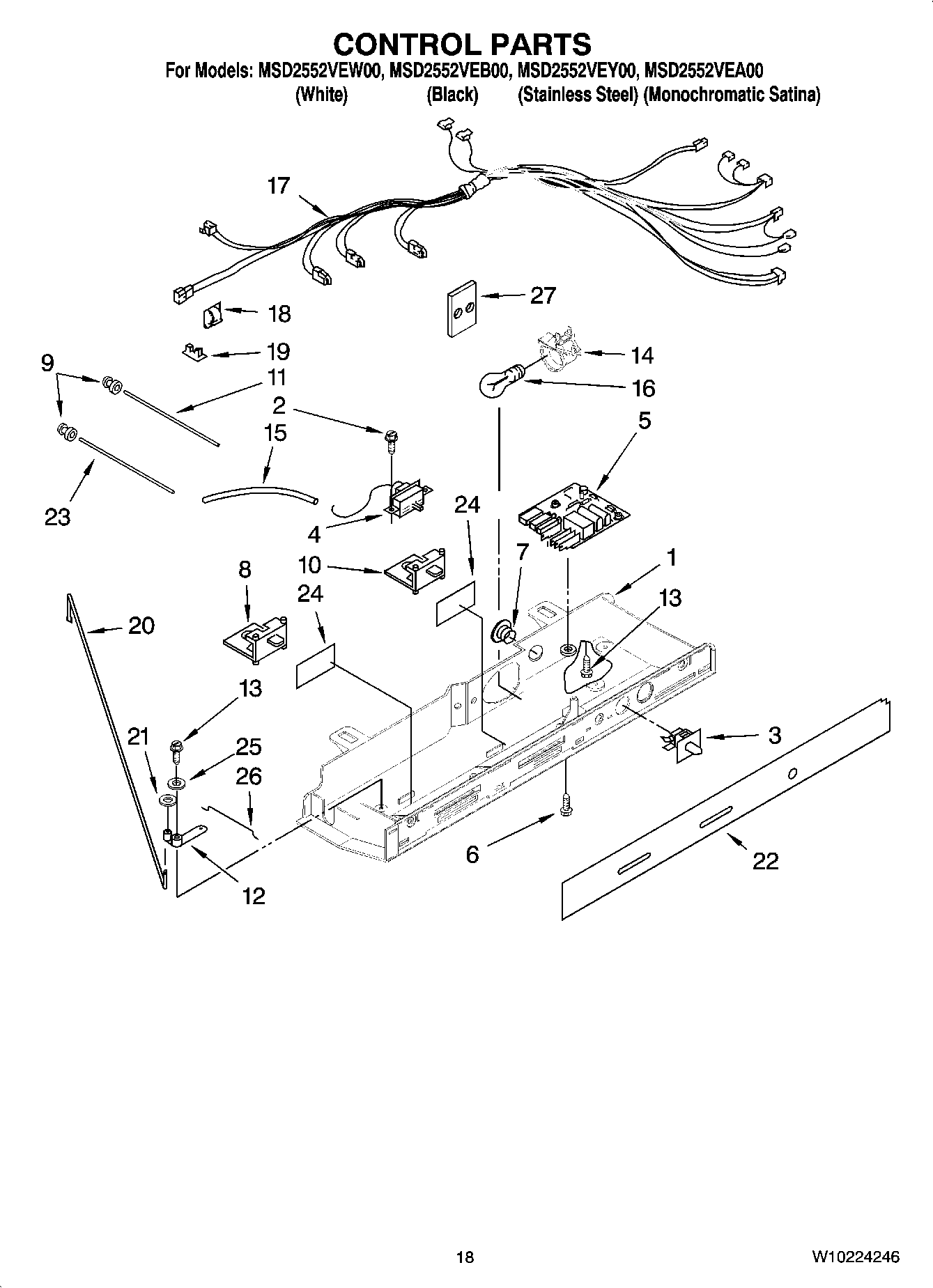

MSD2552VEY00 11 – CONTROL PARTS

Products

Position	Product
1	MAY 2181738
2	Screw (2)
3	MAY 2149705
4	Thermostat
5	Control Board Assembly
6	Screw
7	MAY 940014
8	MAY 2181741
9	Grommet, Light Bar (4)
10	MAY 2161466
11	MAY 2179920
12	Pivot Arm
13	MAY 627068
14	Socket, Light
15	TUBE-BARRIER, THERMOSTAT
16	BULB, LIGHT
17	MAY 2310533
18	MAY 1115374
19	Clip-Wiring
20	Connecting Rod
21	Fastner, Push-On
22	MAY W10176424
23	LIGHT BAR FC
24	MAY 2175513
25	Spring Washer
26	CONNECTING ROD, SHORT
27	MAY 2172931
