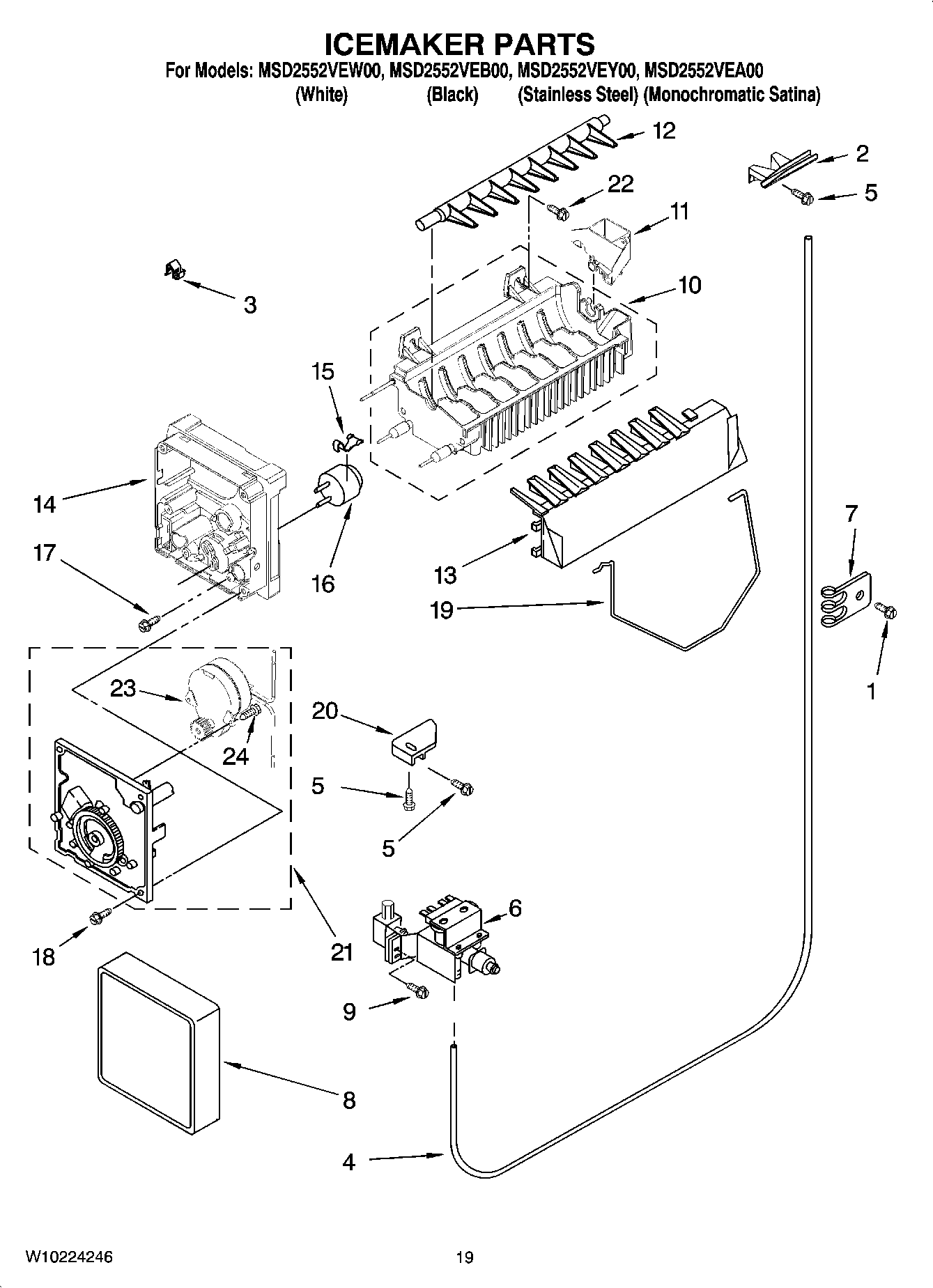

MSD2552VEY00 12 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489084
2	MAY 2209774
3	Clip
4	MAY 2223137
5	MAY 489478
6	MAY 2315534
7	Clip, Tube
8	MAY 2174155
9	MAY 488649
10	MAY W10122527
11	Cup, Fill
12	MAY 627843
13	MAY 2182124
14	MAY 2194712
15	MAY 2315522
16	Thermostat (Also Order 542369 Cement Alumilastic)
17	MAY 8533917
18	MAY 489276
19	MAY 2304354
20	MAY 628320
21	Module Assembly (Includes Items 23 and 24)
22	Screw
23	MAY 626683
24	MAY 489136
100	MAY W10190966
