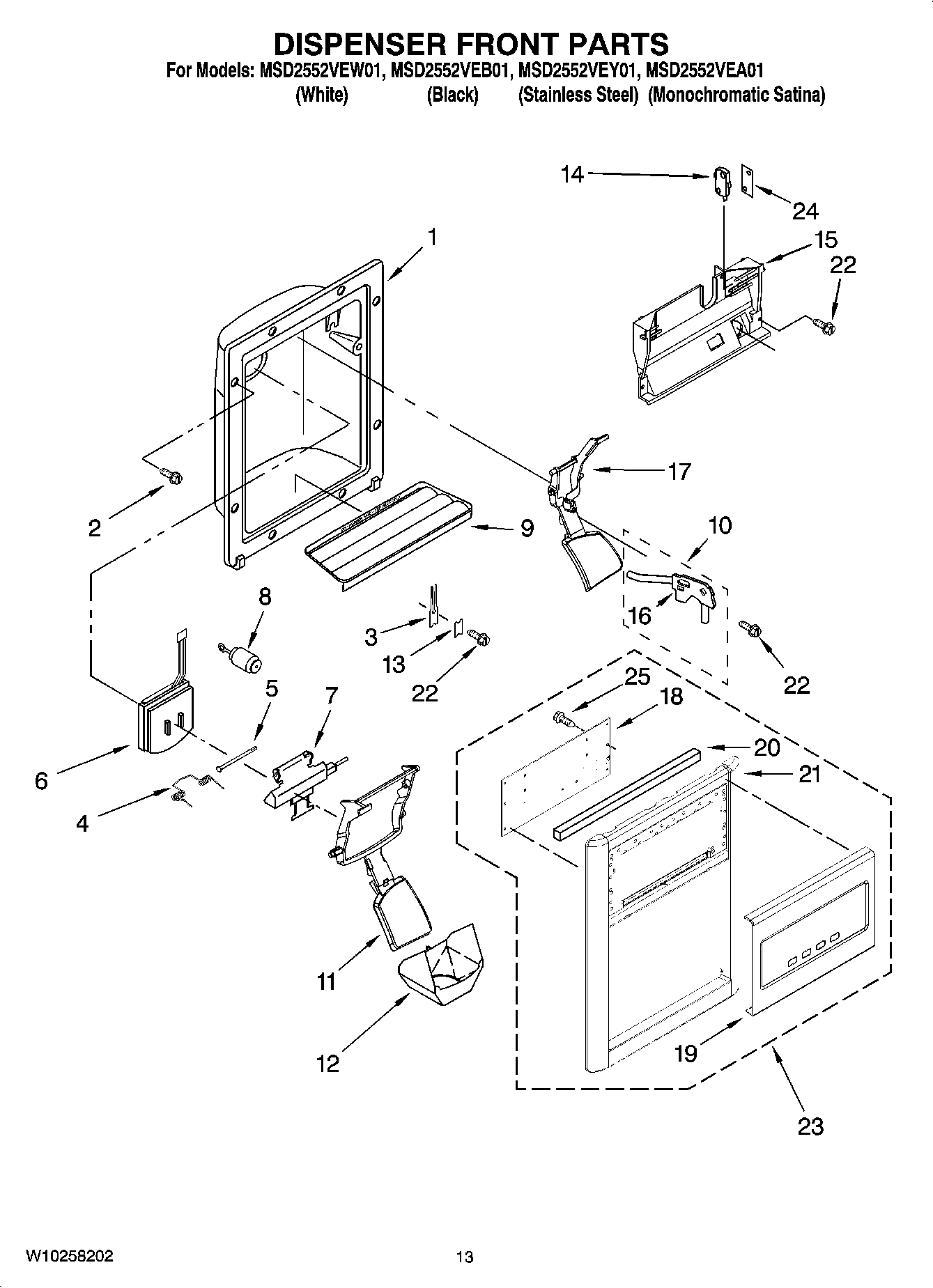

MSD2552VEY01 08 – DISPENSER FRONT PARTSadmin2025-04-26T13:09:45+00:00MSD2552VEY01 08 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 2 | Screw |
| 3 | MAY 2194719 |
| 4 | MAY 2304772 |
| 5 | MAY 2196195 |
| 6 | MAY 2180353 |
| 7 | MAY 2304355 |
| 8 | MAY 2205686 |
| 9 | MAY W10171993 |
| 9 | Grille, Overflow (White) |
| 9 | Grille, Overflow (Black) |
| 10 | MAY 2304317 |
| 11 | MAY 2203562AP |
| 11 | Lever, Ice Dispenser (White) |
| 11 | Lever, Ice Dispenser (Black) |
| 12 | MAY 2180224 |
| 13 | MAY 2195051 |
| 14 | Switch (4) |
| 15 | MAY W10206322 |
| 16 | MAY 2304673 |
| 17 | MAY 2203561AP |
| 17 | Lever, Water Dispenser (Black) |
| 17 | Lever, Water Dispenser (White) |
| 18 | MAY 2321748 |
| 20 | MAY 2305571 |
| 21 | Front Cover, Housing (Stainless) |
| 21 | BEZEL, DISP (STAINLESS,) |
| 21 | MAY W10136851 |
| 21 | MAY W10136850 |
| 22 | MAY 489000 |
| 23 | MAY W10170172 |
| 23 | Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Satina) |
| 23 | MAY W10170169 |
| 23 | MAY W10170168 |
| 24 | MAY 625834 |
| 25 | Screw (2) |
