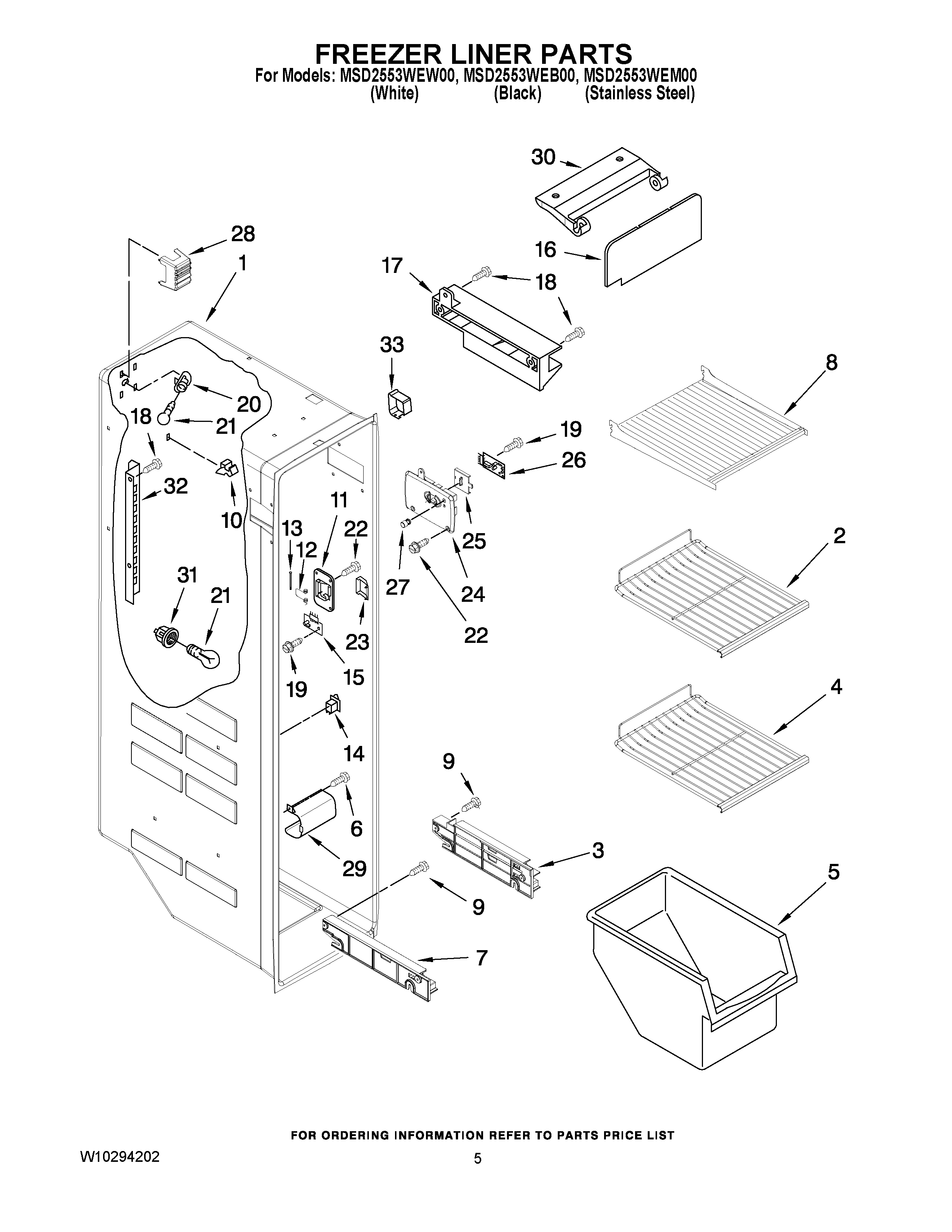

MSD2553WEB00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2211746
3	MAY 2301292
3	MAY 2301291
4	SHELF, SLIDE OUT LOWER
5	MAY 2182971
6	MAY 3400893
7	MAY 2301289
7	MAY 2301290
8	MAY 2205837K
9	MAY W10004810
10	MAY 2315163
11	MAY 2198587
12	SPRING, DOOR
13	PIN, DOOR
14	Switch, Rocker Arm
15	MAY W10193840
16	MAY 2255720
17	Slide, Ice Maker Mounting (Right Side)
18	SCREW, 8 X 1/2
19	Screw (2)
20	Socket, Light
21	MAY W10194422
22	MAY 8281185
23	MAY 2198633
24	MAY W10173569
25	MAY 2315398
26	MAY W10193666
27	MAY 2198643
28	MAY 2198589
29	MAY 2212340
30	Bracket, Ice Maker Cover
31	SOCKET, LIGHT
32	LADDER (RIGHT HAND)
32	LADDER (LEFT HAND)
33	MAY 2303234
