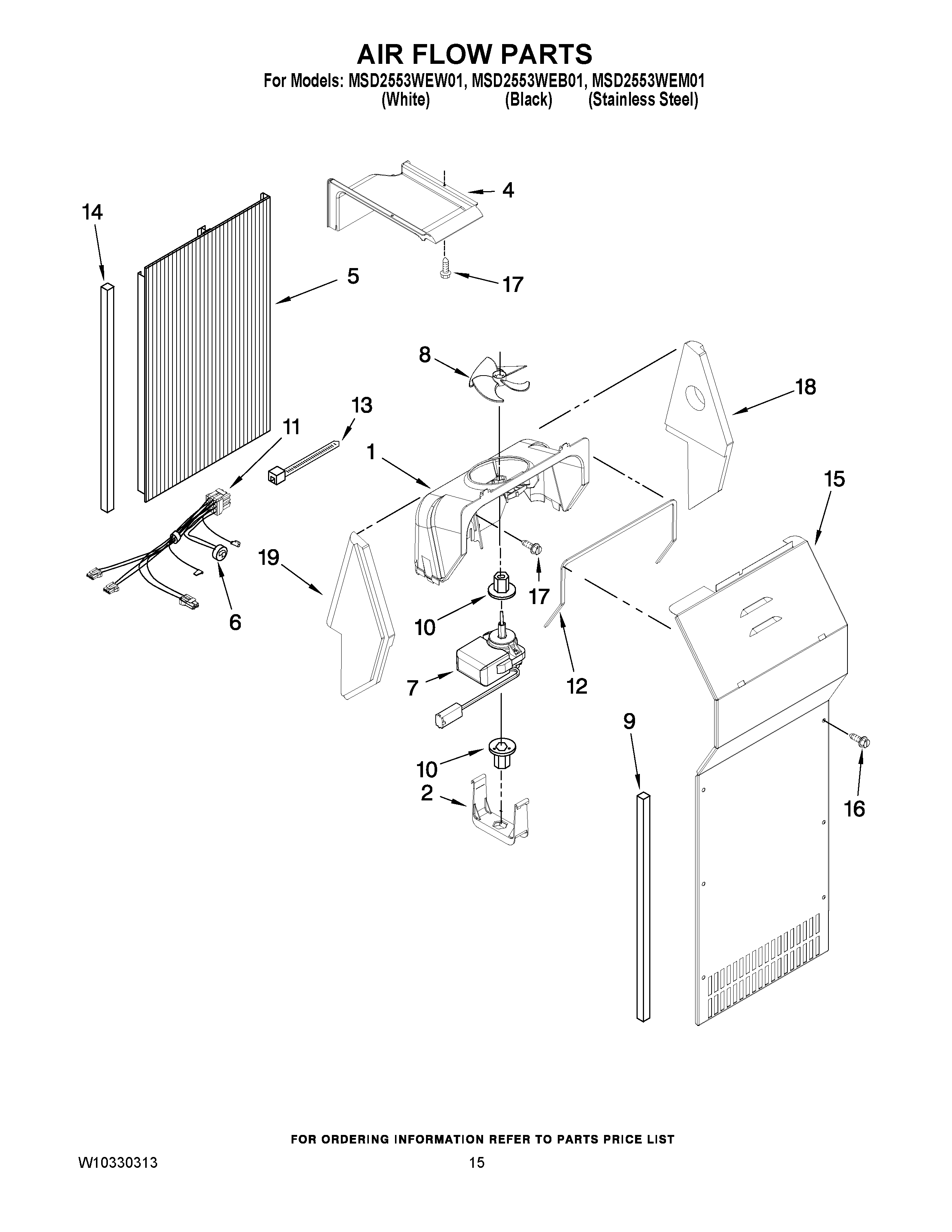

MSD2553WEW01 09 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY W10188846
4	MAY W10272514
5	MAY 2198580
6	MAY W10225581
7	MAY W10236142
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	MAY W10297480
12	Gasket, Fan Scroll
13	Wire Tie
14	MAY 2203876
15	Cover, Evaporator (Includes 9)
16	MAY 8281159
17	SCREW, 8 X 1/2
18	SUPPORT, FAN SCROLL (RIGHT HAND)
19	SUPPORT, FAN SCROLL (LEFT HAND)
