MSD2553WEW01 10 – CONTROL PARTS – Aparts

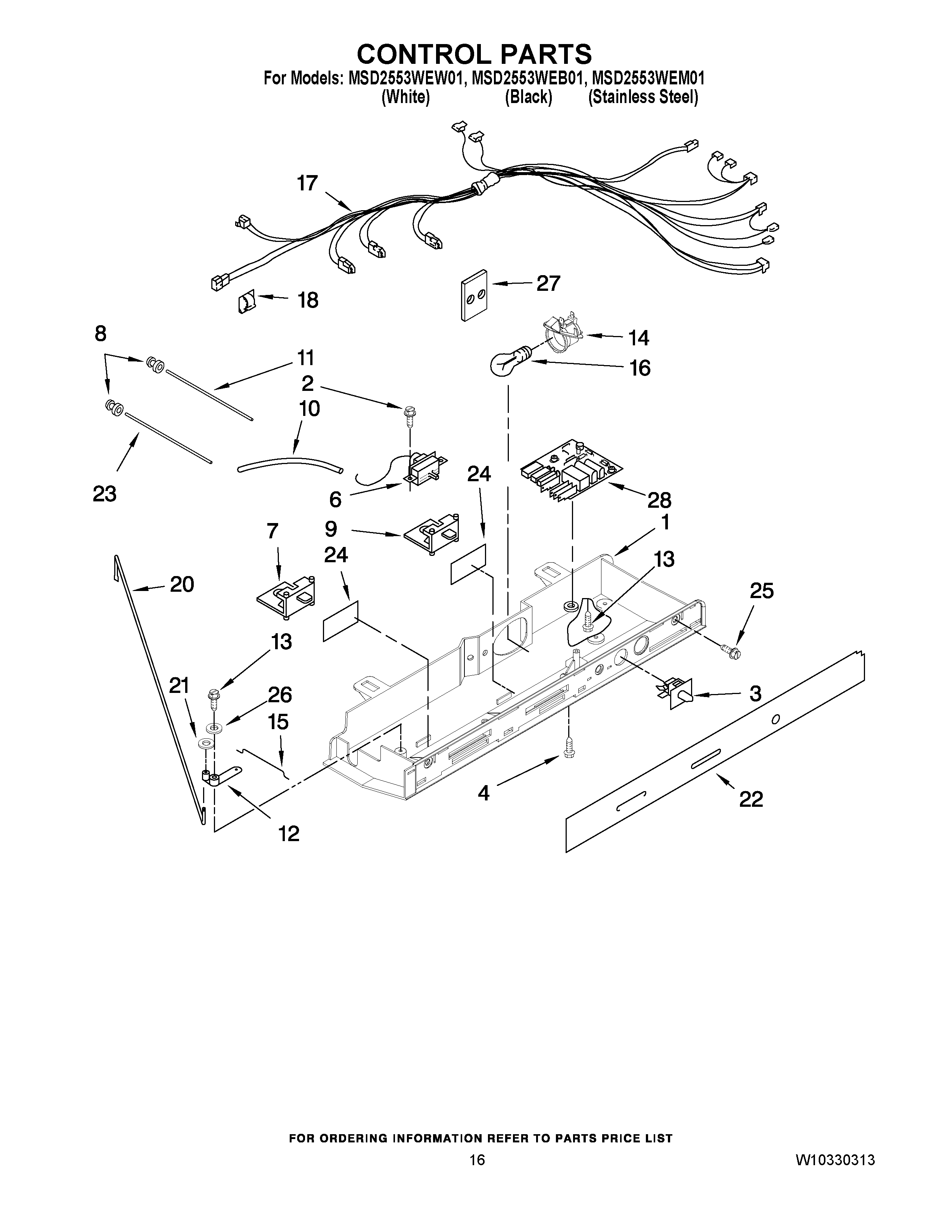

MSD2553WEW01 10 – CONTROL PARTS

Products

Position	Product
1	MAY 2181738
2	Screw (2)
3	MAY 2149705
4	Screw
6	Thermostat
7	MAY 2181741
8	Grommet, Light Bar (4)
9	MAY 2161466
10	TUBE-BARRIER, THERMOSTAT
11	MAY 2179920
12	Pivot Arm
13	MAY 627068
14	Socket, Light
15	CONNECTING ROD, SHORT
16	MAY W10194422
17	MAY 2187868
18	MAY 1115374
20	Connecting Rod
21	Fastner, Push-On
22	MAY W10242644
23	LIGHT BAR FC
24	MAY 2175513
25	MAY 489084
26	Spring Washer
27	MAY 2172931
28	Control Board Assembly
