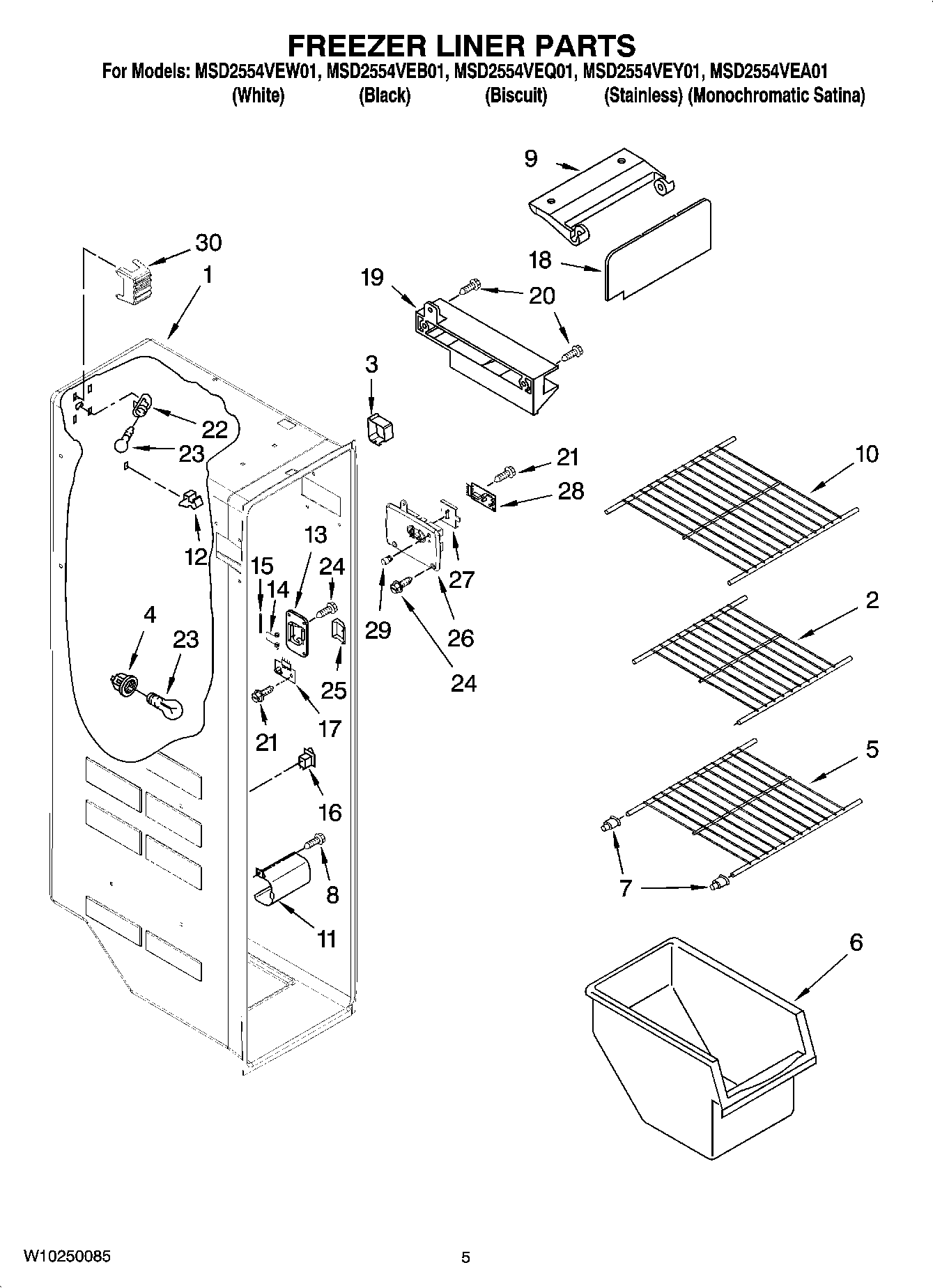

MSD2554VEB01 04 – FREEZER LINER PARTS

Products

Position	Product
2	Shelf
3	MAY 2303234
4	SOCKET, LIGHT
5	MAY 2309597
6	Freezer Bin
7	Cup, Shelf Mount
8	MAY 3400893
9	Bracket, Ice Maker Cover
10	Shelf, Wire
11	MAY 2212340
12	Clip, Air Duct (2)
13	MAY 2198587
14	SPRING, DOOR
15	PIN, DOOR
16	Switch, Rocker Arm
17	MAY 2220398
18	MAY 2255720
19	Slide, Ice Maker Mounting (Right Side)
20	MAY 489478
21	Screw (2)
22	Socket, Light
23	MAY W10194422
24	MAY 8281185
25	MAY 2198633
26	MAY W10173569
27	MAY 2315398
28	MAY W10193666
29	MAY 2198643
30	MAY 2198589
